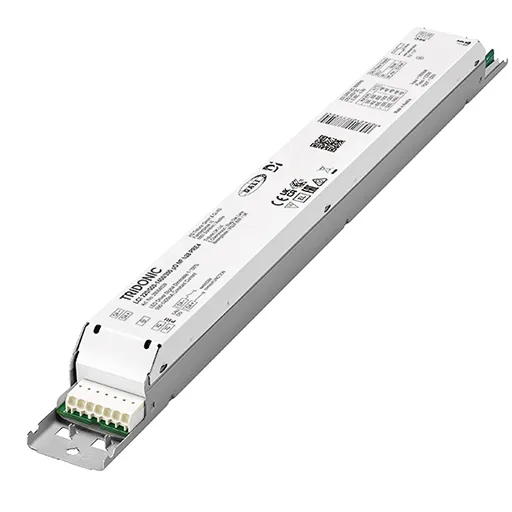

TRIDONIC LED Driver Constant Current LCI 220/500-1400/300 pD NF h28 PRE4 28004039

SKU: 73-28004039
For further information, please refer to the data sheet!
Manufacturer

Tridonic Germany GmbH

Constant current LED driver for luminaire installation, particularly suitable for industrial applications in harsh environments with elevated ambient temperatures, such as warehouses or factories, dimming range from 1 – 100 %, For luminaires of protection class I and protection class II, output current adjustable between 500 – 1,400 mA, max. output power 220 W, suitable for voltage peaks (burst/surge) up to 4 kV, extended temperature range from -40 ... +75 °C, Nominal service life up to 100,000 h, 8-year warranty, White "slim" metal housing, IP20 protection, Near-field communication (NFC), one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION), Terminals: 0° plug-in terminals, Adjustable output current in 1 mA steps (NFC, DALI), Meets DALI-2 parts: 250 (Integrated DALI bus power supply), 251 (Luminaire data), 252 (Energy report) and 253 (Diagnostics & Maintenance), Constant Light Output Function (eCLO), Intelligent Temperature Guard (thermal protection device), Intelligent Voltage Guard (overvoltage and undervoltage monitoring), Protection functions (overtemperature, short circuit, overload, no-load, input voltage range), Suitable for emergency lighting systems according to EN 50172, Flexible configuration via companionSUITE (NFC, DALI), Application-oriented operating window for maximum compatibility, Improved vibration properties, Increased safety due to robust design and advanced test procedures under Extreme test conditions, High reliability due to the selection of exclusive components, For linear and area lighting in industrial applications
