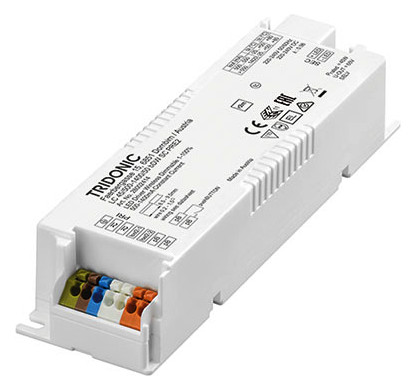

TRIDONIC LED Driver Constant Current LC 45/500-1400/50 bDW SC PRE2 28002414

SKU: 73-28002414

Datasheet: Download PDF

For further information, please refer to the data sheet!

Weight

0,146 kg

Manufacturer

Tridonic Germany GmbH

Dimmable constant current LED driver for luminaire installation, Can be used as a luminaire installation or independent LED driver with snap-on strain relief (see accessories), Automatically establishes a wireless communication network with up to 250 nodes, Output current adjustable between 500 – 1,400 mA with ready2mains Programmer or I-SELECT 2 plugs, Max. output power 45 W, Up to 91% efficiency, Power consumption in stand-by < 0, 35 W, dimming range from 1 – 100 %, For luminaires of protection class I and protection class II, nominal service life up to 100,000 h, 5-year warranty, housing: polycarbonate, white, protection class IP20, basicDIM Wireless, ready2mains (configuration via mains), terminals: 0° plug-in terminals, adjustable output current in 1 mA steps (ready2mains, I-SELECT 2), Constant Light Output function (CLO), power-up fading at AC, configuration via ready2mains, Service monitor logs certain events, protection functions (overtemperature, short circuit, overload, no-load, input voltage range, reduced surge current gain), Intelligent Voltage Guard (overvoltage and undervoltage monitoring), Suitable for emergency lighting systems according to EN 50172, Application-oriented operating window for maximum compatibility, High energy savings due to low stand-by losses and high efficiency, Flexible configuration via basicDIM Wireless, ready2mains and I-SELECT 2, For linear and area lighting in office applications
