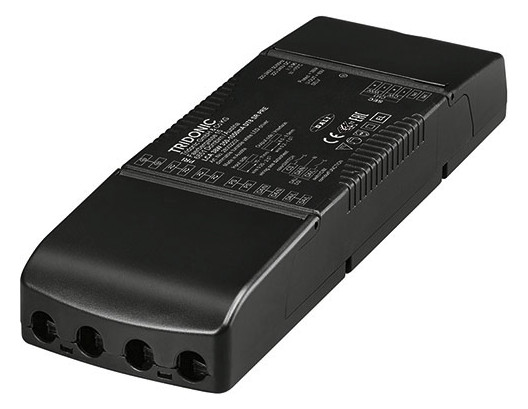

TRIDONIC LED Driver Constant Current LCA 38W 350-1050mA DT8 SR PRE 28002202

SKU: 73-28002202
For further information, please refer to the data sheet!
Weight
0,238 kg
Manufacturer

Tridonic Germany GmbH

Independent dimmable two-channel DALI DT8 constant current LED driver, dimming range from 1 – 100 %, Suitable for luminaires of protection class I and protection class II (for details see data sheet chapter 3.4), output current adjustable between 350 – 1,050 mA with I-SELECT 2 plugs or DALI, max. output power 38 W, up to 87 % efficiency, power consumption in stand-by < 0.25 W, nominal service life up to 100,000 h, 5-year warranty, housing: polycarbonate, black, IP20 protection, strain relief with the possibility of through-wiring, one4all (DALI DT8, DSI, switchDIM, corridorFUNCTION V2), colourSWITCH, terminals: 45° / 0° plug-in terminals, adjustable output current in 1 mA steps (DALI, I-SELECT 2), Constant Light Output Function (CLO), colourSWITCH with predefined colour values, switchDIM and colourSWITCH with memory function, Power-up fading and fade2zero, Configuration via DALI, Protection functions (overtemperature, short circuit, overload, no-load, reduced surge current gain), Suitable for emergency lighting systems according to EN 50172, Application-oriented operating window for maximum compatibility, High energy savings due to low stand-by losses, For spotlight and downlight in retail and catering applications, Tunable-White applications
