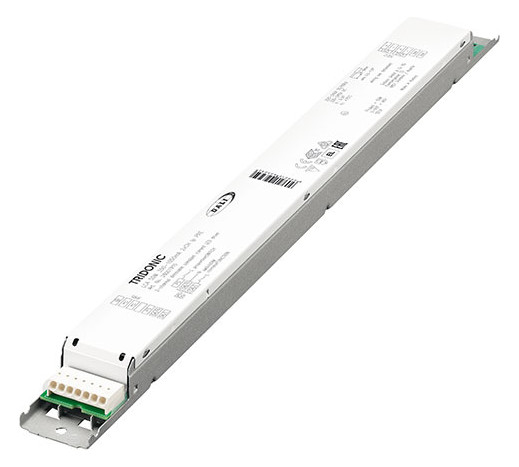

TRIDONIC LED Driver Constant Current LCA 50W 350-1050mA 2xCH lp PRE 28001910

SKU: 73-28001910
For further information, please refer to the data sheet!
Weight
0,252 kg
Manufacturer

Tridonic Germany GmbH

Dimmable two-channel DALI DT6 constant current LED driver for luminaire installation, dimming range from 1 – 100 %, suitable for luminaires of protection class I and protection class II (for details see data sheet chapter 3.4), output current adjustable between 350 – 1,050 mA for each channel with I-SELECT 2 plugs or DALI, max. output power 50 W, up to 89 % efficiency, power consumption in stand-by < 0.25 W, nominal service life up to 100,000 h, 5-year warranty, "Low profile" metal housing with white top, IP20 degree of protection, one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION V2), proportionSWITCH, terminals: 0° plug-in terminals, adjustable output current in 1 mA steps (DALI, I-SELECT 2), Constant Light Output Function (CLO), proportionSWITCH with predefined scenes (various channel dimming scenes can be selected), switchDIM and proportionSWITCH with memory function, Power-up Fading and fade2zero, Configuration via DALI, Protection functions (overtemperature, short circuit, overload, no-load, reduced surge current gain), Intelligent Voltage Guard (overvoltage and undervoltage monitoring), Suitable for emergency lighting systems according to EN 50172, Application-oriented operating window for maximum compatibility, High energy savings due to low stand-by losses, Flexible configuration via DALI and I-SELECT 2, For linear and area lighting Office & Healthcare Applications, Direct & Indirect Lighting Applications
