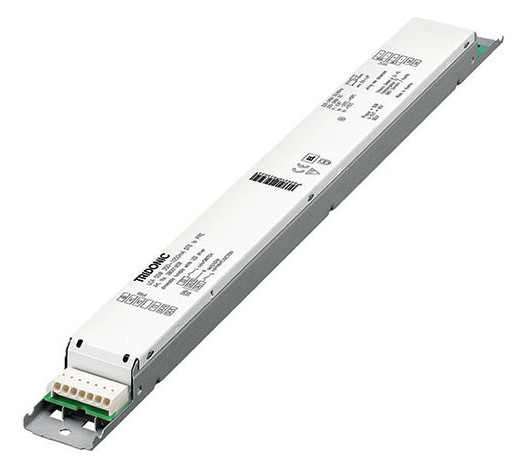

TRIDONIC LED Driver Constant Current LCA 50W 350-1050mA DT8 lp PRE 28001909

SKU: 73-28001909

Datasheet: Download PDF

For further information, please refer to the data sheet!

Weight

0,252 kg

Manufacturer

Tridonic Germany GmbH

Dimmable two-channel DALI DT8 constant current LED driver for luminaire installation, dimming range from 3 – 100 %, suitable for luminaires of protection class I and protection class II (for details see data sheet chapter 3.4), output current adjustable between 350 – 1,050 mA for each channel with I-SELECT 2 plugs or DALI, max. output power 50 W, up to 89 % efficiency, power consumption in stand-by < 0.25 W, nominal service life up to 100,000 h, 5-year warranty, "low profile" metal housing with white top, IP20 degree of protection, one4all (DALI DT8, DSI, switchDIM, corridorFUNCTION V2), colourSWITCH, terminals: 0° plug-in terminals, adjustable output current in 1 mA steps (DALI, I-SELECT 2), Constant Light Output Function (CLO), colourSWITCH with predefined colour values, switchDIM and colourSWITCH with memory function, power-up fading and fade2zero, Configuration via DALI, Protection functions (overtemperature, short circuit, overload, no-load, reduced surge current gain), Intelligent Voltage Guard (overvoltage and undervoltage monitoring), Suitable for emergency lighting systems according to EN 50172, Application-oriented operating window for maximum compatibility, High energy savings due to low stand-by losses, Flexible configuration via DALI and I-SELECT 2, For linear and area lighting in office applications, Tunable-White Applications
