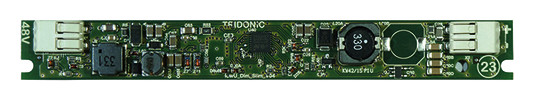

TRIDONIC LED Driver Constant Voltage LMI G2 48V 350-700mA 20-42V DIM slim 28001585

SKU: 73-28001585
Datasheet: Download PDF
For further information, please refer to the data sheet!
DALI dimmable, Up to 93.5 % efficiency, Output voltage 20 – 42 V, Output current adjustable between 350 and 700 mA, Pure amplitudes dimming down to 5 %, Max. tc point temperature 105 °C, 5 years warranty, PCB for built-in application, Suitable for protection class III applications, DALI-2 – DT 6, Terminals: 0° plug-in terminals, Adjustable output current, Protection functions (overtemperature, short circuit, no-load), Application-oriented operating window, Small dimensions for miniaturization of luminaires
Weight
0,013 kg
Manufacturer

Tridonic Germany GmbH

Execution

dynamic

Suitable for outdoor use

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

Yes

Dimming DSI

No

DMX dimming

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Without dimming function

No

Housing

without (board mounting)

Suitable for constant current

No

Suitable for constant voltage

Yes

Output current

350 – 700 mA

Suitable for DC voltage (primary side)

No

Output power

14,7 – 29,4 W

Length

125 mm

Width

15 mm

Height

12 mm

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Datenblatt
28001585-1.pdf
