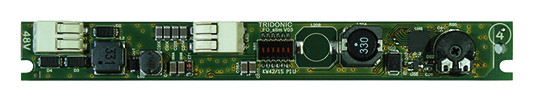

TRIDONIC LED Driver Constant Current LMI G2 48V 350-700mA 3-20V FO slim 28000730

SKU: 73-28000730
Datasheet: Download PDF
For further information, please refer to the data sheet!
Dimmable via potentiometer, Up to 89 % efficiency, Output voltage 3 – 20 V, Output current adjustable between 350 and 700 mA via dip-switch, Output current tolerance ± 5 %, Max. tc-point temperature 105 °C, 5 years warranty, PCB for installation application, Suitable for protection class III applications, Terminals: 0° plug-in terminals, Integrated potentiometer, Adjustable output current, Protection functions (short circuit, open circuit), Application-oriented operating window, Small dimensions for miniaturization Same form factor as DALI variants for easy design-in
Weight
0,013 kg
Manufacturer

Tridonic Germany GmbH

Execution

dynamic

Suitable for outdoor use

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

Dimming DSI

No

DMX dimming

No

Dimming potentiometer (device-integrated)

Yes

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Without dimming function

No

Housing

without (board mounting)

Suitable for constant current

No

Suitable for constant voltage

Yes

Output current

350 – 700 mA

Suitable for DC voltage (primary side)

No

Output power

7 – 14 W

Length

125 mm

Width

15 mm

Height

12 mm

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Datenblatt
28000730-1.pdf
