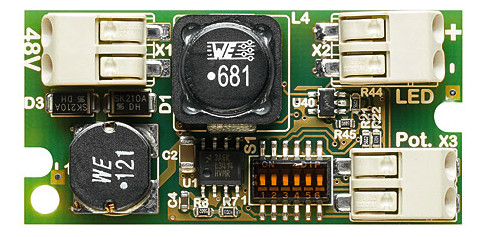

TRIDONIC LED Driver Constant Current LMI 48V 350-700mA 20-42V FO 28000728

SKU: 73-28000728
For further information, please refer to the data sheet!
Weight
0,013 kg
Manufacturer

Tridonic Germany GmbH

Dimmable via potentiometer, Up to 93 % efficiency, Output voltage 20 – 42 V, Output current adjustable between 350 and 700 mA via dip-switch, Output current tolerance ± 8 %, Max. tc-point temperature 120 °C, 5 years warranty, PCB for installation application, Suitable for protection class III applications, Terminals: 0° plug-in terminals, External potentiometer can be connected via terminal, Adjustable output current, Protection functions (short circuit, open circuit), Application-oriented operating window, Small Dimensions for Miniaturization of Luminaires
