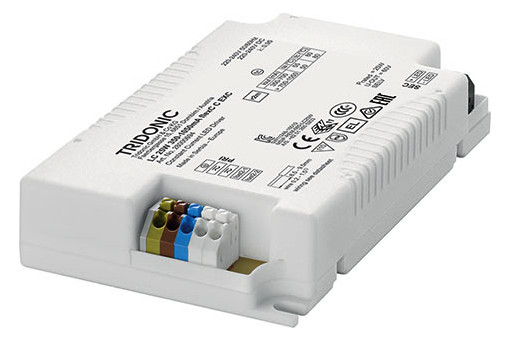

TRIDONIC LED Driver Constant Current LC 25W 350-1050mA flexC C EXC 28000694

SKU: 73-28000694
For further information, please refer to the data sheet!
Weight
0,118 kg
Manufacturer

Tridonic Germany GmbH

Constant current LED driver, output current adjustable between 350 – 1,050 mA with ready2mains Programmer or I-SELECT 2 plugs, Max. output power 25 W, Up to 86 % efficiency, Nominal service life up to 100,000 h, 5 years warranty, Housing: Polycarbonate, white, IP20 protection, ready2mains (configuration via mains), Terminals: 45° plug-in terminals, Adjustable output current in 1 mA steps (ready2mains, I-SELECT 2), Protection functions (overtemperature, short circuit, overload, no-load, Input voltage range), Suitable for emergency lighting systems according to EN 50172, Application-oriented operating window for maximum compatibility, High energy savings due to high efficiency, Flexible configuration via ready2mains and I-SELECT 2, For downlights, spotlights and decorative applications
