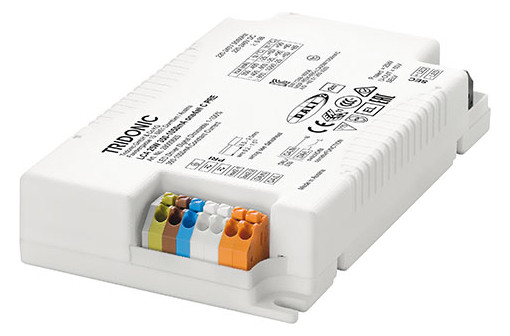

TRIDONIC LED Driver Constant Current LCA 25W 350-1050mA one4all C PRE 28000665

SKU: 73-28000665

Datasheet: Download PDF

For further information, please refer to the data sheet!

Weight

0,149 kg

Manufacturer

Tridonic Germany GmbH

Dimmable LED driver for luminaire installation, dimming range from 1 – 100 %, For luminaires of protection class I and protection class II, output current adjustable between 350 – 1,050 mA with ready2mains Programmer, I-SELECT 2 plugs or DALI, max. output power 25 W, up to 89 % efficiency, power consumption in stand-by < 0, 15 W, nominal service life up to 100,000 h, 5-year warranty, housing: Polycarbonate, white, IP20 degree of protection, one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION), ready2mains (configuration and dimming via mains), terminals: 0° plug-in terminals, adjustable output current in 1 mA steps (DALI, ready2mains, I-SELECT 2), constant light output function (CLO), power-up fading at AC, configuration via ready2mains, service monitor logs certain events, protection functions (overtemperature, short circuit, overload, open circuit, input voltage range, reduced Intelligent Voltage Guard (overvoltage and undervoltage monitoring), Suitable for emergency lighting systems according to EN 50172, Application-oriented operating window for maximum compatibility, High energy savings due to low stand-by losses and high efficiency, Flexible configuration via DALI, ready2mains and I-SELECT 2, Service life up to 100,000 h and 5 years warranty, For linear and area lighting in office applications
