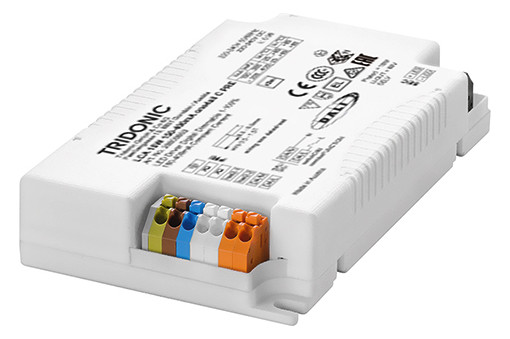

TRIDONIC LED Driver Constant Current LCA 17W 250-700mA one4all C PRE 28000664

SKU: 73-28000664

Datasheet: Download PDF

For further information, please refer to the data sheet!

Weight

0,134 kg

Manufacturer

Tridonic Germany GmbH

Dimmable LED driver for luminaire installation, dimming range from 1 – 100 %, For luminaires of protection class I and protection class II, output current adjustable between 250 – 700 mA with ready2mains Programmer, I-SELECT 2 plugs or DALI, max. output power 17 W, up to 86 % efficiency, power consumption in stand-by < 0.2 W, nominal service life up to 100,000 h, 5 years warranty, housing: Polycarbonate, white, IP20 degree of protection, one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION), ready2mains (configuration and dimming via mains), terminals: 45° plug-in terminals, adjustable output current in 1 mA steps (DALI, ready2mains, I-SELECT 2), Constant Light Output Function (CLO), Power-up Fading at AC, Configuration via ready2mains, Service Monitor logs certain events, protection functions (overtemperature, short circuit, overload, open circuit, input voltage range, reduced Intelligent Voltage Guard (overvoltage and undervoltage monitoring), Suitable for emergency lighting systems according to EN 50172, Application-oriented operating window for maximum compatibility, High energy savings due to low stand-by losses and high efficiency, Flexible configuration via DALI, ready2mains and I-SELECT 2, Service life up to 100,000 h and 5 years warranty, For spotlight and downlight in retail and catering applications
