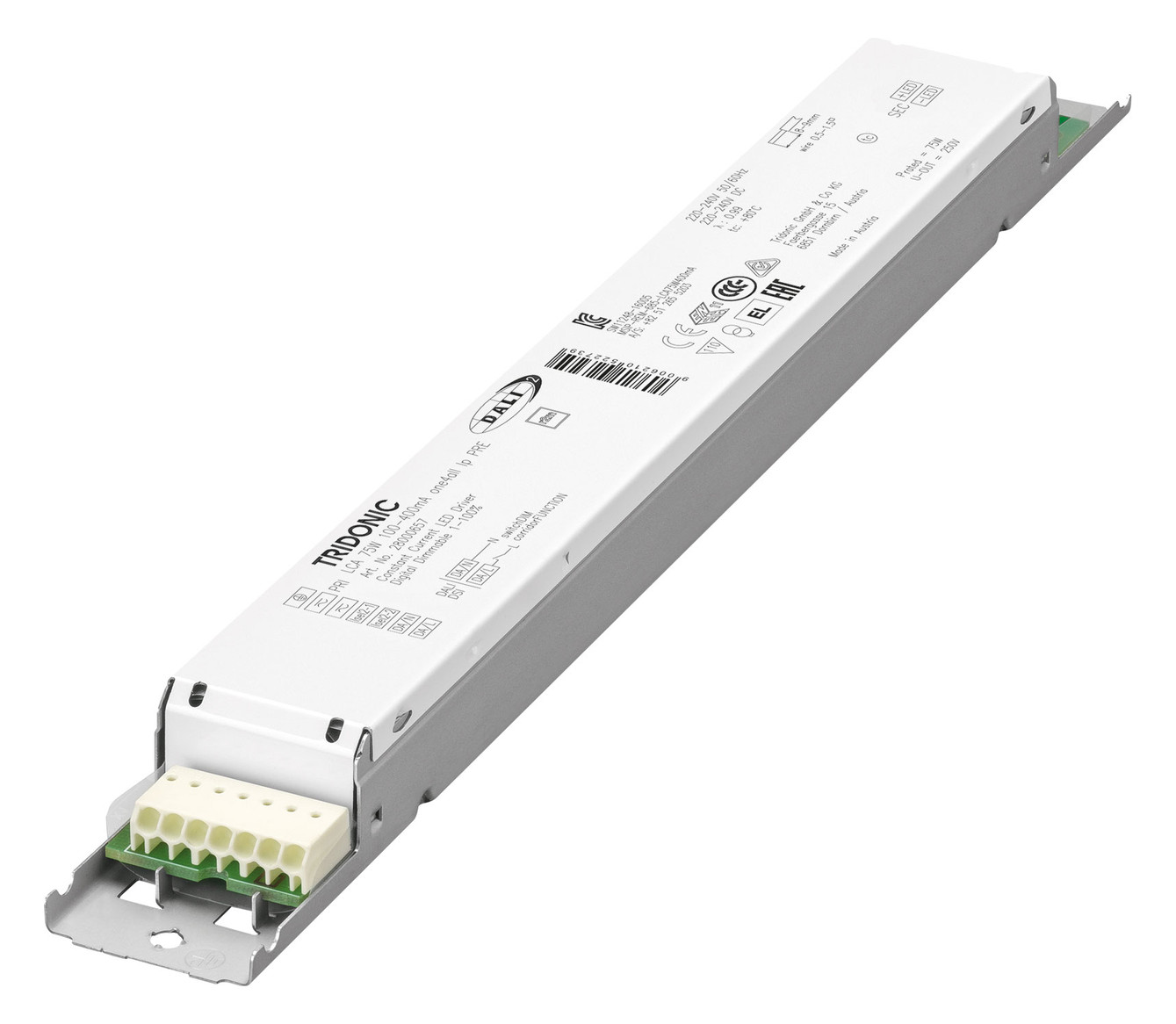

TRIDONIC LED Driver Constant Current LCA

SKU: 73-28000660

Datasheet: Download PDF

For further information, please refer to the data sheet!

Weight

0,266 kg

Manufacturer

Tridonic Germany GmbH

Dimmable constant current LED driver for luminaire installation, dimming range from 1 – 100 %, For luminaires of protection class I and protection class II, output current adjustable between 900 – 1,800 mA, max. output power 75 W, up to 91 % efficiency, power consumption in stand-by < 0.15 W, nominal service life up to 100,000 h, 5-year warranty, "low profile" metal housing with white upper part, protection class IP20, one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION), ready2mains (configure and dim via mains), terminals: 0° plug-in terminals, adjustable output current in 1 mA steps (DALI, ready2mains, I-SELECT 2), Constant Light Output Function (CLO), Power-up Fading at AC, Configuration via ready2mains, Service Monitor logs specific events, Protection functions (overtemperature, short circuit, overload, open circuit, input voltage range, reduced surge current gain), Intelligent Voltage Guard (overvoltage and undervoltage monitoring), Suitable for emergency lighting systems according to EN 50172, Application-oriented operating window for maximum compatibility, High energy savings due to low stand-by losses and high efficiency, Flexible configuration via DALI, ready2mains and I-SELECT 2, Service life up to 100,000 h and 5-year warranty, For linear and area lighting in office applications
