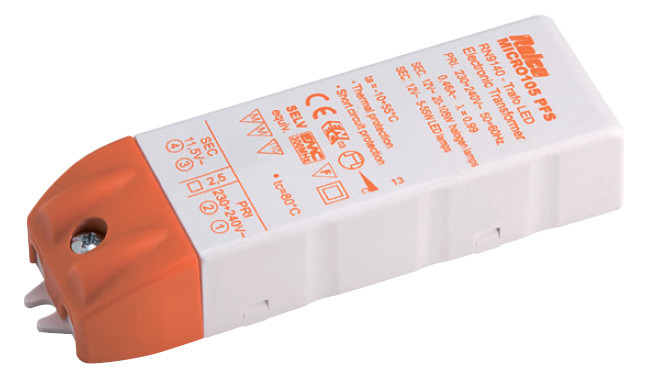

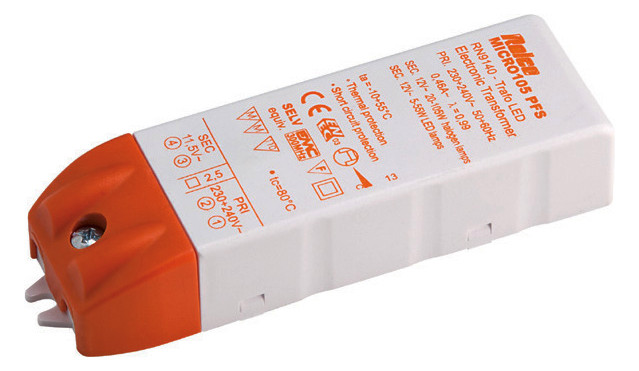

Relco S.r.l Electronic Transformer 220-240V, 50-60Hz, 12Vdc, dimmable, HALO: 20-105W, LED: 3-55W, IP20 RN9140

SKU: 66-RN9140
Datasheet: Download PDF
For more information, please refer to the data sheet!
RN9140 is a compact, dimmable electronic LED driver specially designed for 12V AC LED strips and modules, as well as halogen lamps. With an output power of 3 to 55 W for LEDs and 20 to 60 W for halogen lamps, it provides a reliable and efficient solution for various lighting applications. The driver is designed for independent use and is ideal for indoor use.
Manufacturer

Relco S.r.l.

Execution

dynamic

Suitable for outdoor use

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

Dimming DSI

No

DMX dimming

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

Yes

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Without dimming function

No

Housing

Plastic housing

Output voltage

12 V

Output power

60 W

Protection class (IP)

IP20

Protection class

II

Length

124 mm

Width

39 mm

Height

26 mm

Operation via Bluetooth

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Compatible with Casambi

No

IFTTT support available

No

Constant luminous flux control

No

Suitable for constant current

No

Suitable for constant voltage

Yes

Suitable for DC voltage (primary side)

No

Datenblatt
relco_reach_declaration_md05-53.pdf
