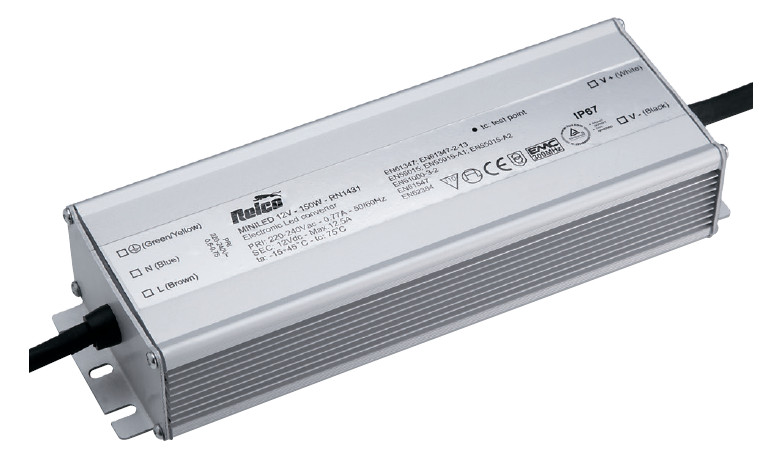

Relco S.r.l Treiber Konstantspannung 220-240V, 50-60Hz, 24Vdc, 100W, IP67 RN1431/24/100

SKU: 66-RN1431/24/100
Datasheet: Download PDF
For further information, please refer to the data sheet!
Robuster Konstantspannungs-LED-Treiber mit einer Ausgangsleistung von 100W und einer Ausgangsspannung von 24 V DC. Er eignet sich hervorragend zum Betrieb von LED-Streifen und -Modulen, die eine konstante Spannungsversorgung benötigen. Mit der Schutzart IP67 ist er ideal für den Einsatz im Außenbereich geeignet.
Manufacturer

Relco S.r.l.

Execution

Static

Suitable for outdoor use

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

Dimming DSI

No

DMX dimming

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Without dimming function

Yes

Housing

Metal housing

Suitable for constant current

No

Suitable for constant voltage

Yes

Output voltage

24 V

Output current

mA

Output power

0 – 100 W

Protection class (IP)

IP67

Protection class

II

Length

200 mm

Width

30 mm

Height

15 mm

Operation via Bluetooth

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Kompatibel mit Casambi

No

IFTTT support available

No

Constant luminous flux control

No

Suitable for DC voltage (primary side)

No
