LED REGINA 3CCT – Schienenstrahler dreh-schwenkbar weiss 19W/27W/30W/40W 25° 3000K/3500K/4000K CRI90 REG3CCT3025

SKU: 66-REG3CCT3025
For further information, please refer to the data sheet!

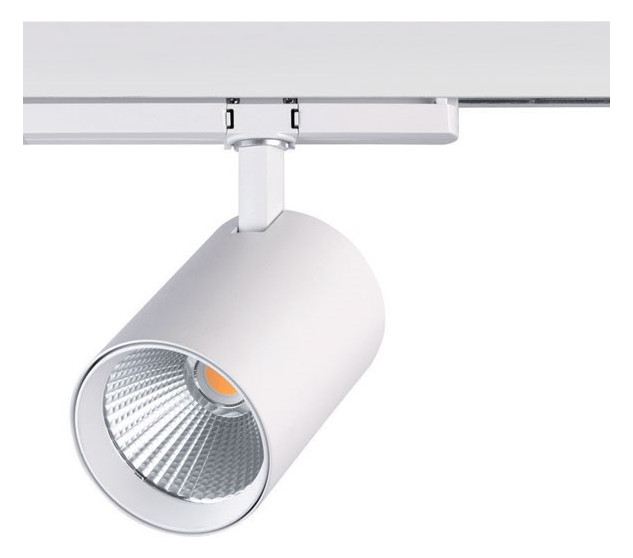

Hochmoderner, schlichter LED-Schienenstrahler – auch für niedrige Deckenhöhen geeignet. Premium Reflektor mit hoher Effizienz. Einstellbares CCT für eine flexible Anpassung der Farbtemperatur an verschiedene Beleuchtungsanforderungen. Drehbereich 355°. Schwenkbereich 90°. Farbtoleranz 3 SDCM. Lichtstromrückgang nach 50.000h L80/B20. “in-trac” 3-Phasen Adapter mit integriertem Betriebsgerät, flickerfrei. 5 Jahre Garantie. CCT 3000K/4000K/6000K. Netto 3300 lm bei 30W, 4000K
Weight
1,3 kg
Suitable for surface mounting

No

Suitable for recessed mounting

No

Suitable for wall mounting

No

Suitable for pendant suspension

No

Suitable for ceiling mounting

Yes

Suitable for truss mounting

No

Suitable for platform/floor mounting

No

Suitable for busbar mounting

Yes

Suitable for clamp mounting

No

Suitable for cable system

No

Adjustability

Rotatable and swiveling

With motion detector

No

With light sensor

No

Light source

LED replaceable

With illuminant

Yes

Material of the housing

Aluminum

Surface protection

powder-coated

Housing color

white

Cover material

Transparent glass

Brushed surface

No

Nominal voltage

200 – 240 V

Operating device

LED control gear, current-controlled

With control gear

Yes

Replaceable operating device

Yes

Dimming 0-10 V

Yes

Dimming 1-10 V

No

Dimming DALI-2

No

DALI dimming

No

DMX dimming

No

Dimming DSI

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Without dimming function

Yes

Reflector

high gloss

Light distributor

Reflector

Light distribution

symmetrical

Reflector color

silver

Beam angle

medium beam 21-40°

Light emission

direct

Luminous flux maintenance with average service life 50,000 h at 25 °C ambient temperature

80 %

Failure rate with average service life of 50,000 h at 25 °C ambient temperature (tq)

20 %

Constant luminous flux control

No

Protection class (IP)

IP20

Impact resistance

IK07

Protection class

II

Rated ambient temperature according to IEC 62722-2-1

-20 – 40 °C

Max. System performance

25 W

Light color

white

Color temperature

3.000 – 4.000 K

Color rendering index CRI

90-100

Luminous flux

1.770 – 3.720 lm

Adjustable color temperature

Steps

Adjustable luminous flux

Steps

Adjustable beam angle

No

Width

250 mm

Height/depth

190 mm

Outer diameter

90 mm

Type of wiring

Conclusion

Number of poles

3

Connection type

Busbar adapter

Luminaire with limited surface temperature "D mark" according to EN 60598-2-24

No

Integrated emergency power supply

No

Luminaire luminous efficacy

110 lm/W

Suitable for VDU workstations according to EN 12464-1

No

Covering the luminaire with thermal insulation material possible

No

IFTTT support available

No

Compatible with Apple HomeKit

No

Operation via Bluetooth

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No
