Relco S.r.l Treiber Konstantspannung 220-240V, 50-60Hz, 24Vdc, 12-60W, IP20 7065CV

SKU: 66-7065CV
For further information, please refer to the data sheet!

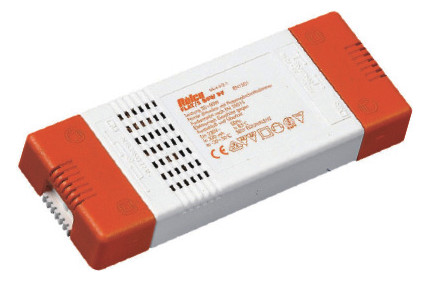

Der RELCO RN7065CV ist ein vielseitiger Konstantstrom-LED-Treiber, der speziell für den Betrieb von 24 V DC LED-Streifen und -Modulen entwickelt wurde. Mit einer Ausgangsleistung von 12 bis 60 W und einem einstellbaren Ausgangsstrombereich von 500 bis 2500 mA bietet er Flexibilität für verschiedene Beleuchtungsanwendungen. Der Treiber ist für den unabhängigen Einsatz konzipiert und eignet sich ideal für Innenräume.?
Manufacturer

Relco S.r.l.

Execution

dynamic

Suitable for outdoor use

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

Dimming DSI

No

DMX dimming

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Without dimming function

Yes

Housing

Plastic housing

Output voltage

24 V

Output current

500 – 2.500 mA

Output power

12 – 60 W

Protection class (IP)

IP20

Length

185 mm

Width

64 mm

Height

22 mm

Operation via Bluetooth

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Kompatibel mit Casambi

No

IFTTT support available

No

Constant luminous flux control

No

Suitable for constant current

No

Suitable for constant voltage

Yes

Suitable for DC voltage (primary side)

No

Protection class

II
