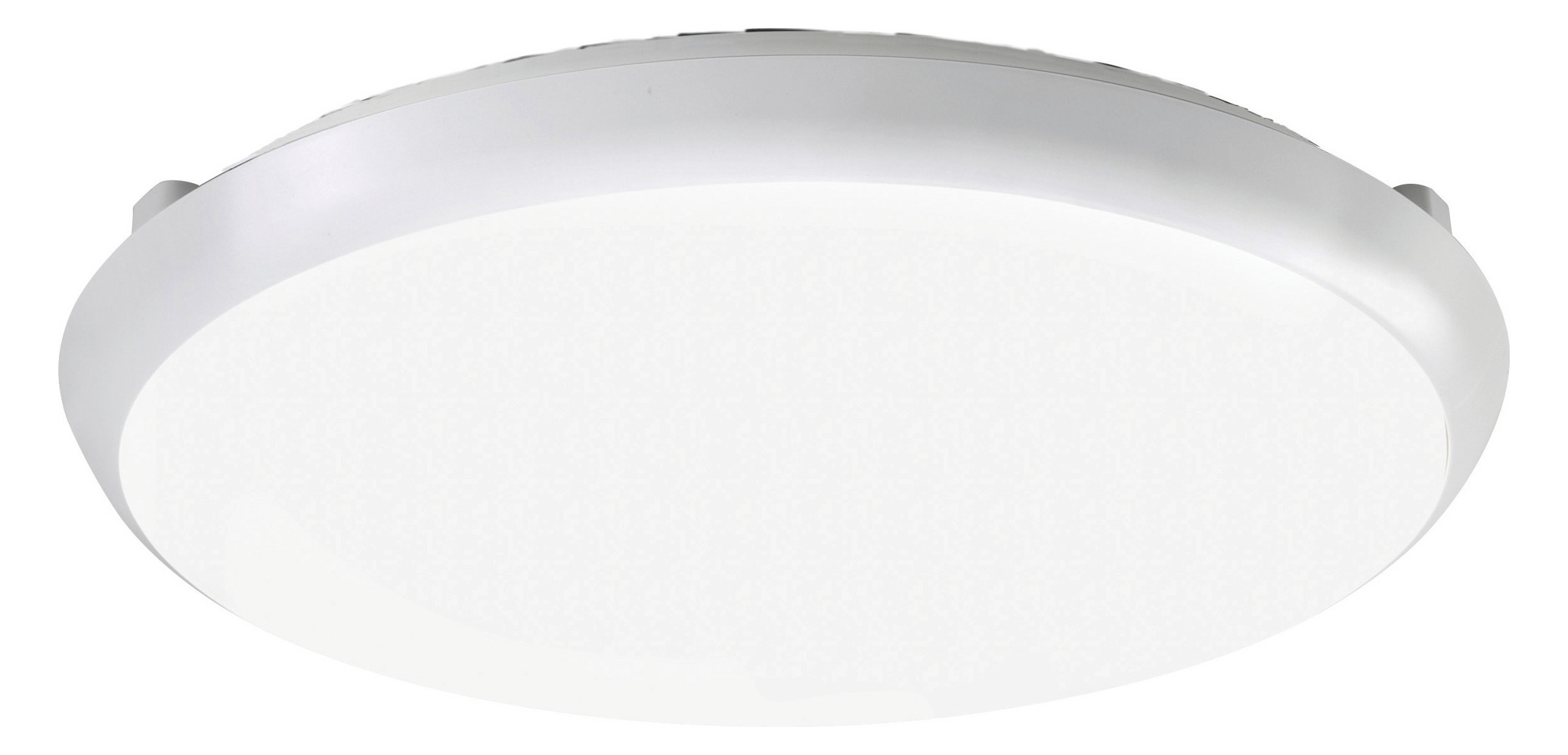

led kamaleon3503cct_sil_md01.jpg

LED KAMALEON 350 3CCT – Aufbauleuchten starr silber 18W/24W/30W 120° 3000K/4000K/6000K CRI80 2592

SKU: 66-2592
Datasheet: Download PDF
For further information, please refer to the data sheet!
Wasserdichte LED Deckenleuchte. Geeignet für private, gewerbliche und Hotelanwendungen und erhältlich in zwei Größen (Ø=250mm und Ø=350mm). Diffusor aus opalem Polycarbonat, schlagfest, selbstlöschend.. Hohe Flexibilität durch einstellbare Leistung und Farbtemperatur. Gehäuse und Rahmen aus glasfaserverstärktem Kunststoff, Silikondichtung und Sicherheitsschrauben. Integriertes, nicht dimmbares Betriebsgerät. 3 Jahre Garantie. CCT 3000K/4000K/6000K. Netto 3000lm bei 30W 4000K. Ring muss separat bestellt werden
Weight
0,85 kg
Suitable for wall mounting

Yes

Suitable for pendant suspension

No

Suitable for ceiling mounting

Yes

Suitable for recessed mounting

No

Suitable for surface mounting

Yes

Suitable for strip light configuration

No

Suitable for VDU workstations according to EN 12464-1

No

Light source

LED replaceable

Material of the housing

Aluminum

Surface protection housing

powder-coated

Housing color

silver

Cover material

Transparent plastic

Design of the grid

Without

Voltage type

AC

Nominal voltage

200 – 240 V

Operating device

LED control gear, current-controlled

With control gear

Yes

Replaceable operating device

Yes

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI-2

No

DALI dimming

No

DMX dimming

No

Dimming DSI

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Without dimming function

Yes

Light distributor

Diffuser lens/optics/panel

Light distribution

symmetrical

Beam angle

Extremely wide beam >80°

Light emission

direct

Luminous flux maintenance with average service life 50,000 h at 25 °C ambient temperature

80 %

Failure rate with average service life of 50,000 h at 25 °C ambient temperature (tq)

20 %

Protection class (IP)

IP65

Impact resistance

IK08

Protection class

II

Luminaire with limited surface temperature "D mark" according to EN 60598-2-24

No

Rated ambient temperature according to IEC 62722-2-1

-20 – 40 °C

Suitable for emergency lighting

No

Integrated emergency power supply

No

With motion detector

No

With light sensor

No

Covering the luminaire with thermal insulation material possible

No

Mit Luftschlitzen

No

Glow wire test according to IEC 60695-2-11

850 °C – 30 s

Max. System performance

9 W

Luminaire luminous efficacy

100 lm/W

Light color

white

Color temperature

3.000 – 6.000 K

Color rendering index CRI

80-89

Constant luminous flux control

No

Height/depth

47,5 mm

Outer diameter

350 mm

Type of wiring

Conclusion

Number of poles

2

Connection type

Plug-in terminal

Adjustable color temperature

Steps

Adjustable luminous flux

Steps

Adjustable beam angle

No

Operation via Bluetooth

No

Kompatibel mit Casambi

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Erfüllt min. EIA Lebensdauerkriterium L90 (bei 50.000 h bei tq = 25 °C)

No

Datenblatt
2592-1.pdfrelco_reach_declaration_md05-97.pdfausschreibungstext_2592-1.txt
