LED LIFE 150 OPAL 3CCT – Runde Einbauleuchten starr weiss 21W 100° 3000K/4000K/6000K CRI90 2436-

SKU: 66-2436-
Datasheet: Download PDF
For further information, please refer to the data sheet!

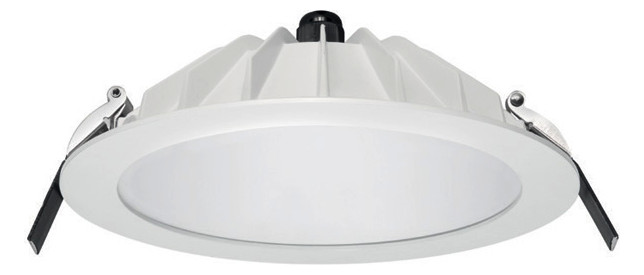

LED-Downlight, ideal für Restaurants, Gaststätten und Wohnhäuser. Kompaktes Design mit geringer Einbauhöhe. Gleichmässige Ausleuchtung durch opale Abdeckung. Lichtstromrückgang nach 50.000h L80/B20. Wählbar zwischen 3000K, 4000K und 6000K für individuelle Lichtstimmungen. Hoher CRI90 für lebendige und natürliche Farbwiedergabe. Integriertes, nicht dimmbares Betriebsgerät. 5 Jahre Garantie. CCT 3000K/4000K/6000K. Netto 2300 lm bei 4000K
Weight
0,33 kg
Suitable for surface mounting

No

Suitable for recessed mounting

Yes

Suitable for wall mounting

No

Suitable for pendant suspension

No

Suitable for ceiling mounting

Yes

Suitable for truss mounting

No

Suitable for platform/floor mounting

No

Suitable for busbar mounting

No

Suitable for clamp mounting

No

Suitable for cable system

No

Adjustability

not adjustable

With motion detector

No

With light sensor

No

Light source

LED replaceable

With illuminant

Yes

Material of the housing

Aluminum

Surface protection

powder-coated

Housing color

white

Cover material

Transparent plastic

Brushed surface

No

Voltage type

AC

Nominal voltage

200 – 240 V

Operating device

LED control gear, current-controlled

With control gear

Yes

Replaceable operating device

Yes

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI-2

No

DALI dimming

No

DMX dimming

No

Dimming DSI

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Without dimming function

Yes

Reflector

Without

Light distributor

Diffuser lens/optics/panel

Light distribution

symmetrical

Reflector color

other

Beam angle

Extremely wide beam >80°

Light emission

direct

Luminous flux maintenance with average service life 50,000 h at 25 °C ambient temperature

80 %

Failure rate with average service life of 50,000 h at 25 °C ambient temperature (tq)

20 %

Constant luminous flux control

No

Protection class (IP)

IP54

Impact resistance

IK07

Protection class

II

Rated ambient temperature according to IEC 62722-2-1

-20 – 40 °C

Max. System performance

21 W

Light color

white

Color temperature

3.000 – 6.000 K

Color rendering index CRI

90-100

Luminous flux

2.300 lm

Power factor

0,95

Adjustable color temperature

Steps

Adjustable luminous flux

No

Adjustable beam angle

No

Outer diameter

170 mm

Installation height/depth

80 mm

Type of wiring

Conclusion

Number of poles

2

Connection type

Plug-in terminal

Luminaire with limited surface temperature "D mark" according to EN 60598-2-24

No

Integrated emergency power supply

No

Glow wire test according to IEC 60695-2-11

850 °C – 30 s

Luminaire luminous efficacy

110 lm/W

Suitable for VDU workstations according to EN 12464-1

No

Covering the luminaire with thermal insulation material possible

No

IFTTT support available

No

Compatible with Apple HomeKit

No

Operation via Bluetooth

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Datenblatt
2436-1-1.pdfrelco_reach_declaration_md05-94.pdfausschreibungstext_2436-1-1.txt
