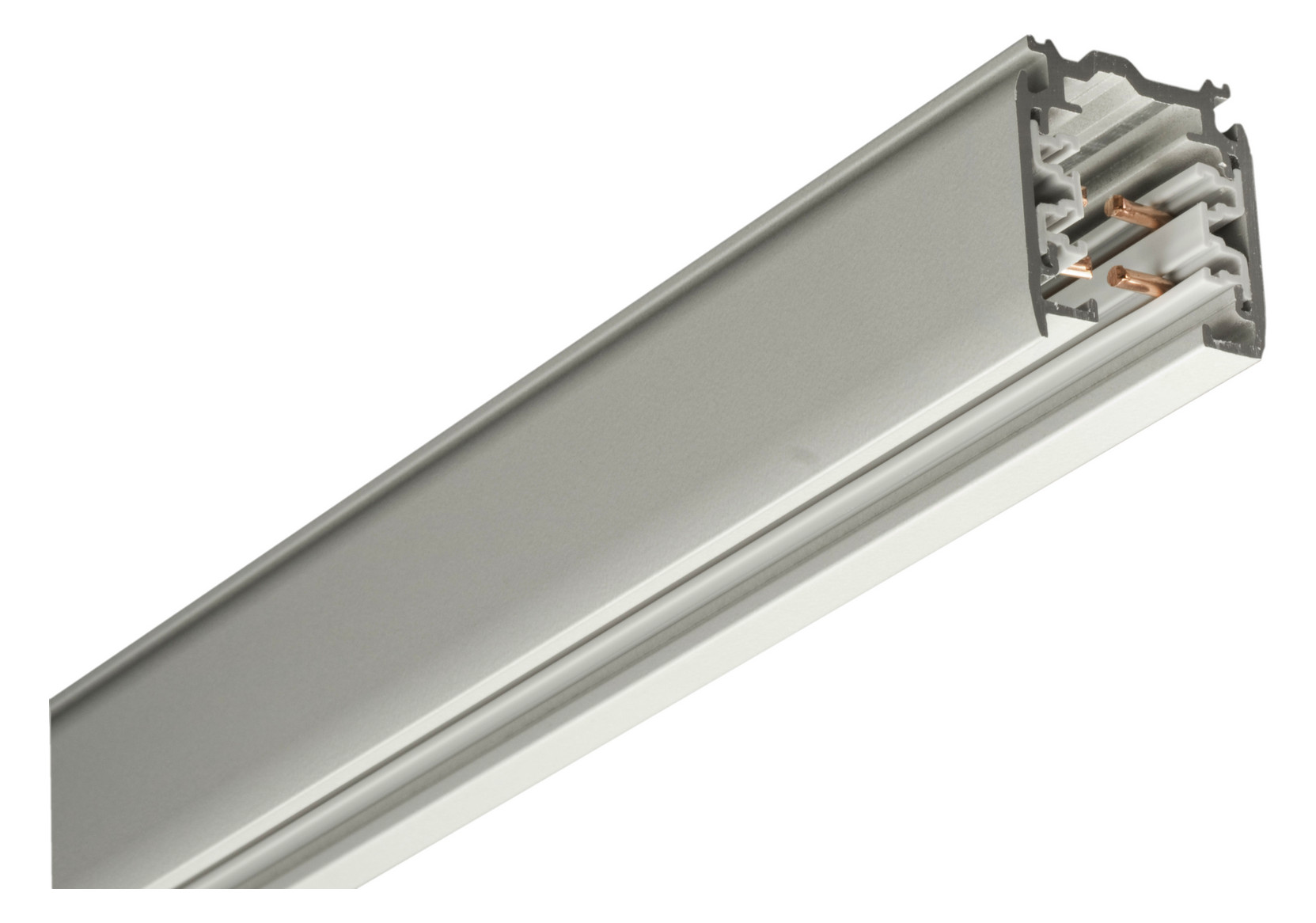

GLOBAL Trac Pro Track 3-Phase Mounted Rail 1000mm - silver XTS 4100-1

SKU: 597-XTS 4100-1
Datasheet: Download PDF
For further information, please refer to the data sheet!
GLOBAL Trac Pro Track 3-Phase Mounted Rail 1000mm silver
Manufacturer

Nordic Aluminum Oyj

Number of groups/phases

3

Nominal voltage

240 – 400 V

Max. electrical load capacity per phase

16 W

Bus-capable

No

Shape

rectangular

Material

Aluminum

Finish of the surface

dull

Color

silver

Suitable for recessed mounting

No

Suitable for surface mounting

Yes

Suitable for pendant suspension

Yes

Bendable

No

Length

1.000 mm

Width

31,5 mm

Height

32,5 mm

Protection class

I

Datenblatt
XTS4100-1-1.pdfnordic__reach_declaration_md05-311.pdf
