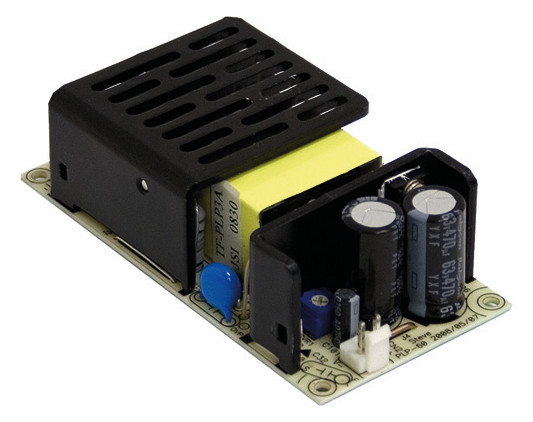

MEAN WELL LED Driver Constant Voltage PLP 90-264VAC 127-370VDC 60W 24V/2500mA PLP-60-24

SKU: 514-PLP-60-24
Datasheet: Download PDF
For further information, please refer to the data sheet!
LED Power Supply, Open Design, Power 60W, Input Voltage 90-264V AC; 127-370V DC constant voltage 24V/2, 5A. IP20. Overvoltage protection, overload protection, short circuit protection.
Weight
0,16 kg
Manufacturer

MEAN WELL Enterprises

Execution

Static

Suitable for outdoor use

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

Dimming DSI

No

DMX dimming

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Without dimming function

Yes

Housing

without (board mounting)

Suitable for constant current

No

Suitable for constant voltage

Yes

Output voltage

24 V

Output current

2.500 mA

Suitable for DC voltage (primary side)

Yes

Output power

60 W

Protection class (IP)

IP20

Protection class

I

Length

101 mm

Width

50,8 mm

Height

26,6 mm

Operation via Bluetooth

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Kompatibel mit Casambi

No

IFTTT support available

No

Datenblatt
PLP-60-24.pdfmeanwell_reach_svhc_declaration-2024_md05-50.pdf
