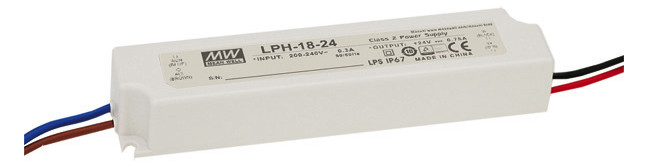

MEAN WELL LED Driver Constant Voltage LPH 180-264VAC 18W 24V/750mA LPH-18-24

SKU: 514-LPH-18-24
Datasheet: Download PDF
For further information, please refer to the data sheet!
LED power supply, plastic housing, power 18W, input voltage 180-264V AC. Constant voltage output 24V/0, 75A. IP67, overload protection, short circuit protection, overtemperature protection.
Weight
0,175 kg
Manufacturer

MEAN WELL Enterprises

Execution

Static

Suitable for outdoor use

Yes

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

Dimming DSI

No

DMX dimming

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Without dimming function

Yes

Housing

Plastic housing

Suitable for constant current

No

Suitable for constant voltage

Yes

Output voltage

24 V

Output current

0 – 750 mA

Suitable for DC voltage (primary side)

No

Output power

18 W

Protection class (IP)

IP67

Protection class

II

Length

140 mm

Width

30 mm

Height

22 mm

Operation via Bluetooth

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Kompatibel mit Casambi

No

IFTTT support available

No

Datenblatt
LPH-18-24.pdfmeanwell_reach_svhc_declaration-2024_md05-49.pdf
