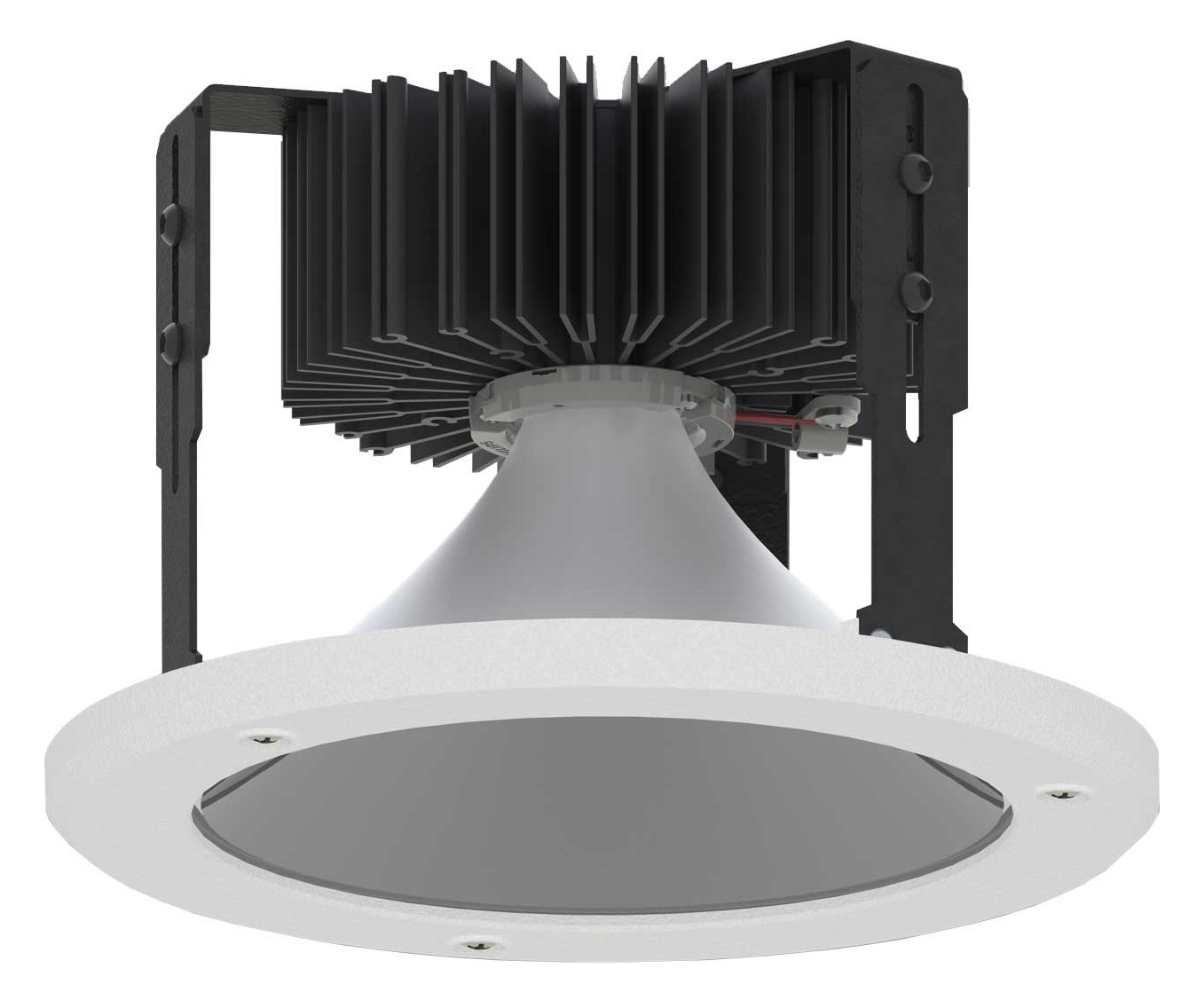

roundCENTURY 280 - Round recessed luminaires rigid white 28W 44° 4000K CRI80 119-AB81099.00.92

SKU: 119-AB81099.00.92
Datasheet: Download PDF
For further information, please refer to the data sheet!
Robust LED recessed light. Suitable for outdoor use (IP65 from below). Clear protective glass, integrated in the bayonet ring. Reflector glossy and anodized. Extruded aluminum anodized heat sink. Color tolerance 3 SDCM. Luminous flux decrease after 50,000h L80/B20. Separate, non-dimmable control gear. 5-year warranty.
Weight
1,3 kg
Family

roundCENTURY 280

Suitable for surface mounting

No

Suitable for recessed mounting

Yes

Suitable for wall mounting

No

Suitable for pendant suspension

No

Suitable for ceiling mounting

Yes

Suitable for truss mounting

No

Suitable for platform/floor mounting

No

Suitable for busbar mounting

No

Suitable for clamp mounting

No

Suitable for cable system

No

Adjustability

not adjustable

With motion detector

No

With light sensor

No

Light source

LED replaceable

With illuminant

Yes

Suitable for number of light sources

1

Version

Without

Material of the housing

Aluminum

Surface protection

powder-coated

Housing color

white

Cover material

Transparent glass

Brushed surface

No

Voltage type

AC

Nominal voltage

220 – 240 V

Operating device

LED control gear, current-controlled

With control gear

Yes

Replaceable operating device

Yes

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI-2

No

DALI dimming

No

DMX dimming

No

Dimming DSI

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Without dimming function

Yes

Reflector

high gloss

Light distributor

Reflector

Light distribution

symmetrical

Reflector color

silver

Beam angle

wide beam 41-80°

Energieeffizienzklasse der Lichtquelle nach EU-Richtlinie 2019/2015

F

Luminous flux maintenance with average service life 50,000 h at 25 °C ambient temperature

80 %

Failure rate with average service life of 50,000 h at 25 °C ambient temperature (tq)

20 %

Constant luminous flux control

No

Protection class (IP)

IP65

Protection class

I

Max. System performance

28 W

Light color

white

Color temperature

4.000 K

Color rendering index CRI

80-89

Luminous flux

3.575 lm

Power factor

0,9

Adjustable color temperature

No

Adjustable luminous flux

No

Adjustable beam angle

No

Outer diameter

208 mm

Installation height/depth

170 mm

Installation diameter

175 mm

Type of wiring

Conclusion

Number of poles

3

Connection type

other

Luminaire with limited surface temperature "D mark" according to EN 60598-2-24

No

Integrated emergency power supply

No

Glow wire test according to IEC 60695-2-11

Without

Luminaire luminous efficacy

128 lm/W

Photobiological safety according to EN 62471

RG1

Suitable for VDU workstations according to EN 12464-1

No

Covering the luminaire with thermal insulation material possible

No

IFTTT support available

No

Color consistency (McAdam ellipse)

SDCM3

Compatible with Apple HomeKit

No

Operation via Bluetooth

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Datenblatt
AB81099.00.92-1.pdfdeclaration_rohs_md49-5133.pdfarclite_reach_selbstverpflichtungserklaerung_24-07-30_md05-6650.pdfgpsr_montageanleitung_final_roundxxx__2seite_1_1_2-002_010722_md14-1.pdfausschreibungstext_ab81099_00_92-1.txt
