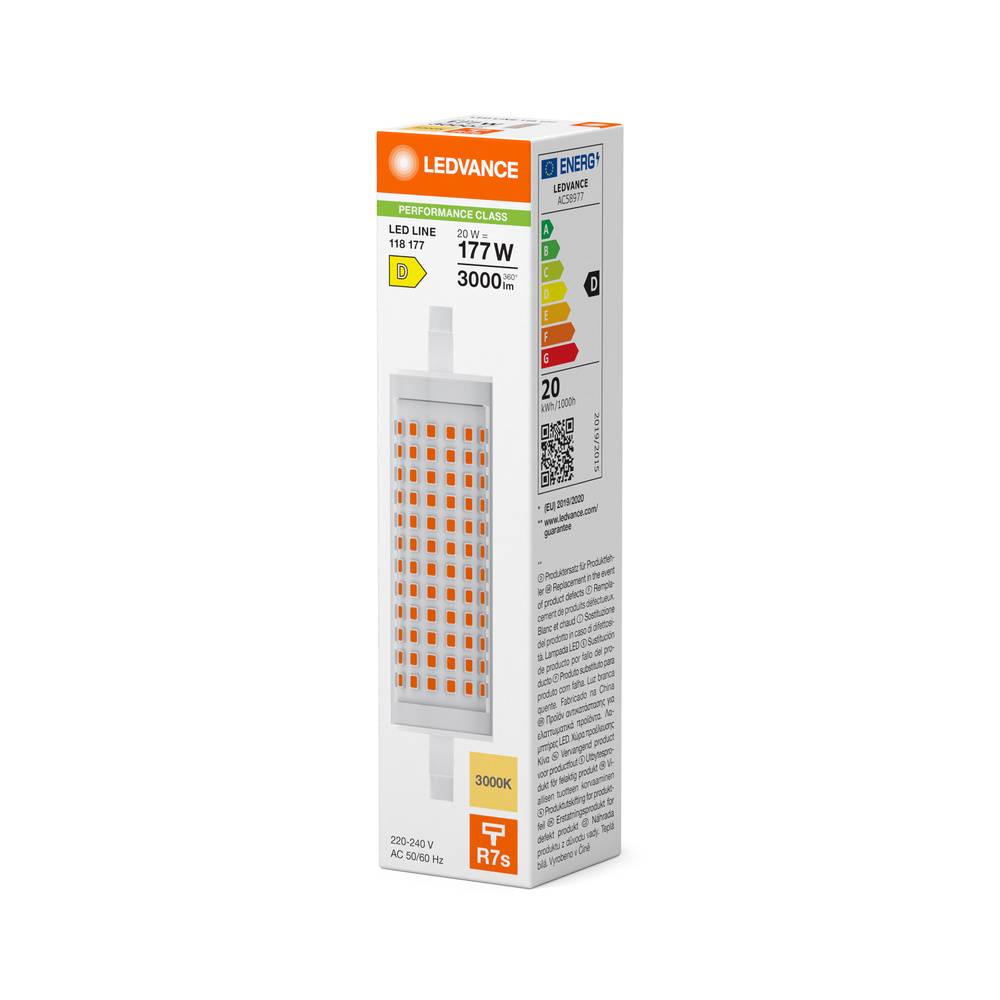

Double-sided LED special lamps

SKU: 02-4099854249082
Datasheet: Download PDF
For more information, please refer to the data sheet!
Double-sided LED special lamps. Product features: LED alternative to conventional R7s lamps. Good light quality; Color rendering index Ra: ≥80; constant color location. Product advantages: Fits into most R7s luminaires due to off-center bases. Good all-round light emission. Long service life of up to 15,000 h. Lower heat generation (compared to the standard reference product). Four-year warranty. Lower energy consumption than incandescent or halogen lamps. Areas of application: General lighting at ambient temperatures of -20...+40 °C. Gastronomy. Household applications. Outdoor use only in suitable outdoor luminaires.
Weight
0,09 kg
Nominal voltage

220 V

Rated current

155 mA

Power factor

0,5

Lamp wattage

20 W

Voltage type

AC

Suitable for ECG

No

Suitable for magnetic ballast

No

Luminous flux

3.000 lm

Rated luminous flux according to IEC 62612

3.000 lm

Lamp luminous efficacy

150 lm/W

Color rendering index CRI

80-89

Lamp shape

Tube, double-ended

Filament lamp

No

Glass/cover version

clear

Light color according to EN 12464-1

warm white <3300 K

Base

R7s

Color

multicolored

Color temperature

3.000 K

Housing color

white

Beam angle

300 °

Color consistency (McAdam ellipse)

SDCM6

Dimming phase cut-off

No

Phase control dimming

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming Bluetooth

No

Dimming Wi-Fi

No

Without dimming function

Yes

Diameter

28 mm

Length

118 mm

Protection class (IP)

IP20

Energy efficiency class according to EU Directive 2019/2015

D

Lamp designation

other

Min. number of switching operations

100.000

Weighted energy consumption in 1,000 hours

20 kWh

Average rated service life

15.000 h

Remote control possible

No

With motion detector

No

With remote control

No

With twilight switch

No

Photobiological safety according to EN 62471

RG1

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes
