LED lamps with retrofit socket G9
20. March 2025

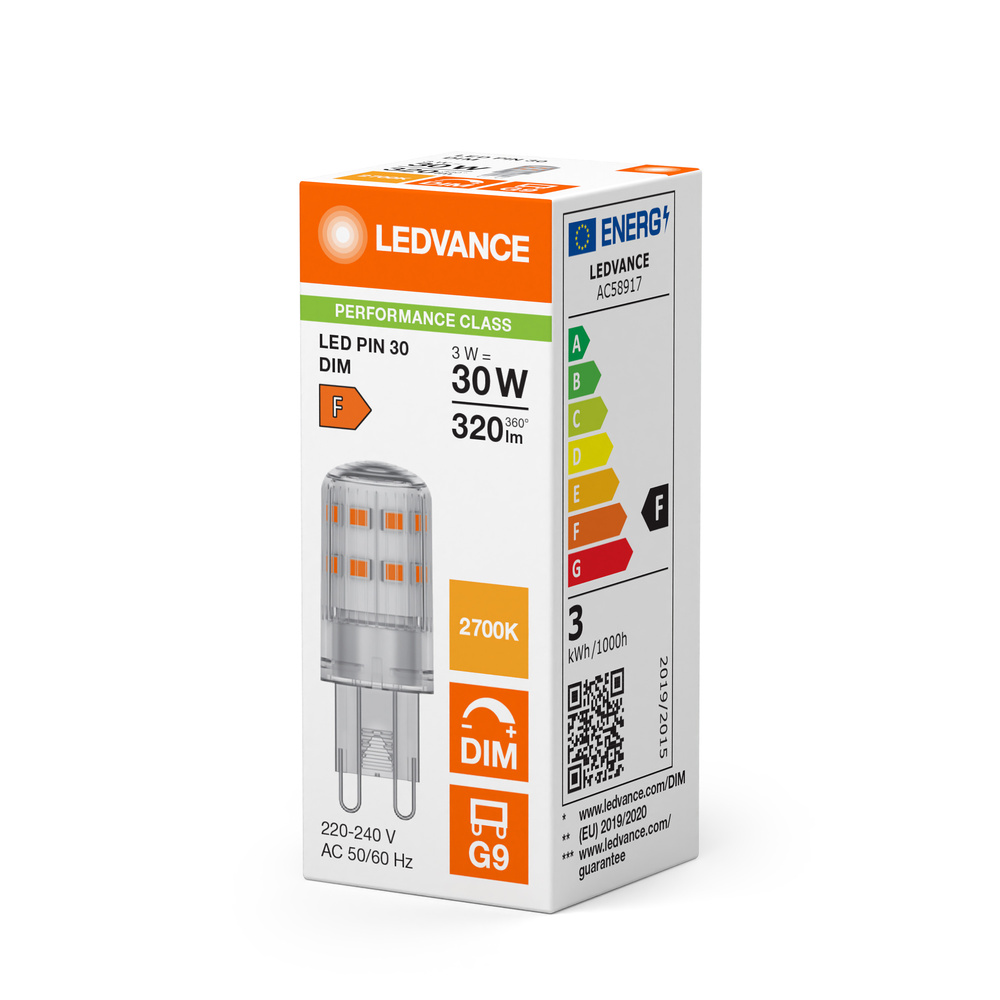

Dimmable LED lamps with retrofit socket G9
20. March 2025
ledvance/asset-13186179.jpg

Dimmable LED lamps with retrofit socket G9

SKU: 02-4099854248788
Datasheet: Download PDF
For more information, please refer to the data sheet!
Dimmable LED lamps with retrofit socket G9. Product features: Dimmable (on many commercially available dimmers, see auchwww.ledvance.de/dim). LED alternative to high-voltage halogen lamps. Product advantages: Good all-round light emission. Very long service life of up to 25,000 h. Ideal for decorative and free-burning use. Five-year warranty. Lower energy consumption than incandescent or halogen lamps. Areas of application: For atmospheric lighting accents in living rooms and party cellars. Shops, hotels and restaurants. Outdoor use only in suitable outdoor luminaires.
Weight
0,01 kg
Nominal voltage

220 V

Rated current

18 mA

Power factor

0,4

Lamp wattage

3 W

Voltage type

AC

Suitable for ECG

No

Suitable for magnetic ballast

No

Luminous flux

320 lm

Rated luminous flux according to IEC 62612

320 lm

Lamp luminous efficacy

106 lm/W

Color rendering index CRI

80-89

Lamp shape

other

Filament lamp

No

Glass/cover version

clear

Light color according to EN 12464-1

warm white <3300 K

Base

G9

Color

multicolored

Color temperature

2.700 K

Housing color

gray

Beam angle

300 °

Color consistency (McAdam ellipse)

SDCM6

Dimming phase cut-off

No

Phase control dimming

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming Bluetooth

No

Dimming Wi-Fi

No

Without dimming function

No

Diameter

18 mm

Length

49 mm

Protection class (IP)

IP20

Energy efficiency class according to EU Directive 2019/2015

F

Lamp designation

other

Min. number of switching operations

100.000

Distortion factor (THD)

83

Weighted energy consumption in 1,000 hours

3 kWh

Average rated service life

25.000 h

Remote control possible

No

With motion detector

No

With remote control

No

With twilight switch

No

Photobiological safety according to EN 62471

RG1

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes
