12 V low-voltage LED lamps with retrofit socket
20. March 2025
12 V low-voltage LED lamps with retrofit socket
20. March 2025
ledvance/asset-13188752.jpg

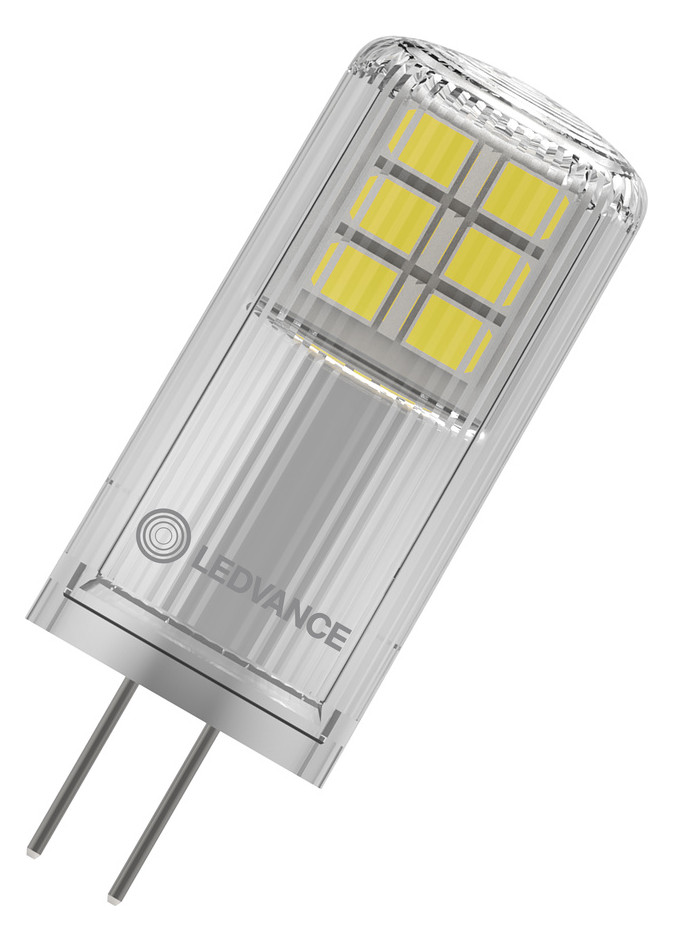

Dimmable 12 V low-voltage LED lamps with retrofit plug-in base

SKU: 02-4099854248542
Datasheet: Download PDF
For more information, please refer to the data sheet!
Dimmable 12 V low-voltage LED lamps with retrofit plug-in base. Product features: Dimmable (on many commercially available dimmers, see auchwww.ledvance.de/dim). Compatible with many commercially available electronic ballasts (see also compatibility list). LED alternative to low-voltage halogen lamps. Socket: G4, GY6.35. Product advantages: Variable use of DC and AC voltage possible. Good all-round light emission. Ideal for decorative and free-burning use. Very long service life of up to 25,000 h. Four-year warranty. Lower energy consumption than incandescent or halogen lamps. Areas of application: Decorative applications. For atmospheric lighting accents in living rooms and party cellars. Outdoor use only in suitable outdoor luminaires.
Weight
0,01 kg
Nominal voltage

12 V

Rated current

170 mA

Power factor

0,9

Lamp wattage

2 W

Voltage type

AC/DC

Suitable for ECG

No

Suitable for magnetic ballast

No

Luminous flux

200 lm

Rated luminous flux according to IEC 62612

200 lm

Lamp luminous efficacy

100 lm/W

Color rendering index CRI

80-89

Lamp shape

other

Filament lamp

No

Glass/cover version

clear

Light color according to EN 12464-1

warm white <3300 K

Base

G4

Color

multicolored

Color temperature

2.700 K

Housing color

gray

Beam angle

320 °

Color consistency (McAdam ellipse)

SDCM6

Dimming phase cut-off

No

Phase control dimming

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming Bluetooth

No

Dimming Wi-Fi

No

Without dimming function

No

Diameter

14 mm

Length

38 mm

Protection class (IP)

IP20

Energy efficiency class according to EU Directive 2019/2015

F

Lamp designation

other

Min. number of switching operations

100.000

Weighted energy consumption in 1,000 hours

2 kWh

Average rated service life

25.000 h

Remote control possible

No

With motion detector

No

With remote control

No

With twilight switch

No

Photobiological safety according to EN 62471

RG1

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes
