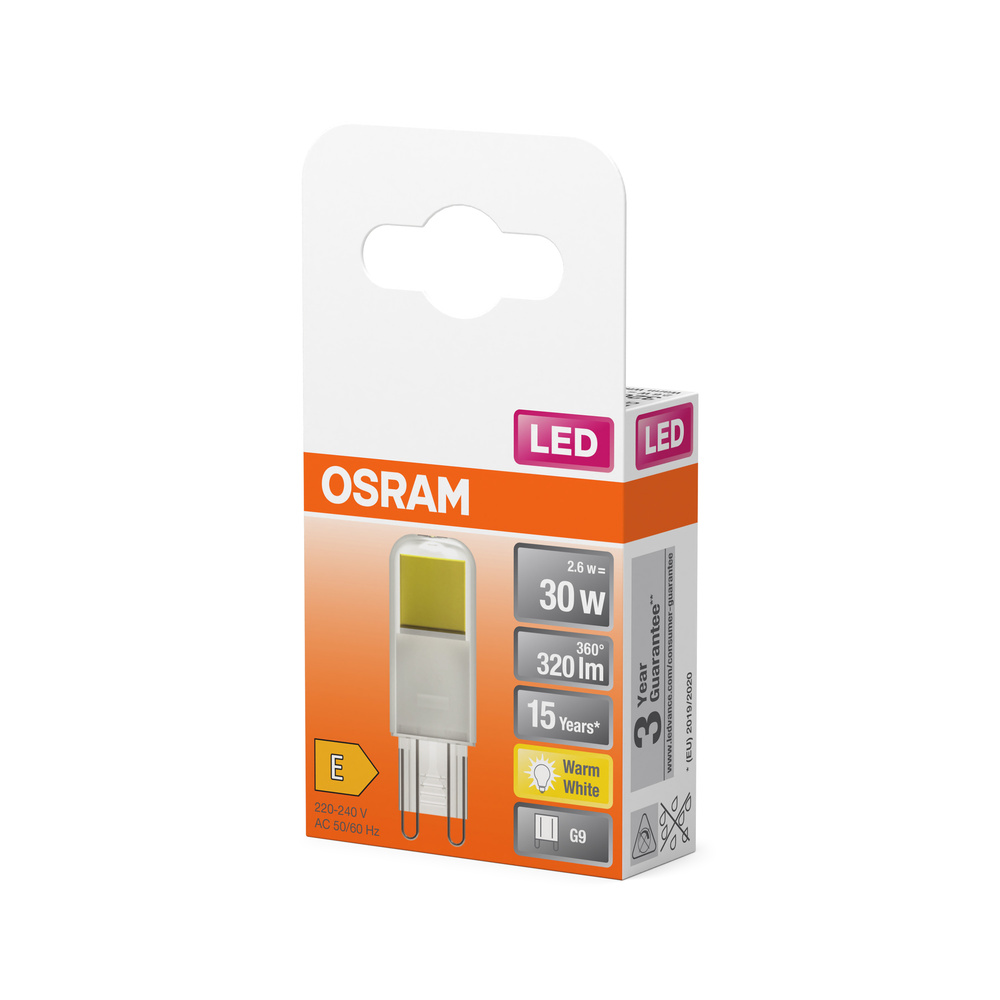

LED lamps with retrofit socket G9

SKU: 02-4099854248009
Datasheet: Download PDF
For more information, please refer to the data sheet!
LED lamps with retrofit socket G9. Product features: LED alternative to conventional high-voltage lamps. Good light quality; Color rendering index Ra: ≥80; constant color location. Product advantages: Good all-round light emission. Long service life of up to 15,000 h. Ideal for decorative and free-burning use. Three-year warranty. Lower energy consumption than incandescent or halogen lamps. Areas of application: For atmospheric lighting accents in living rooms and party cellars. Shops, hotels and restaurants. Outdoor use only in suitable outdoor luminaires.
Weight
0,01 kg
Nominal voltage

220 V

Rated current

21 mA

Power factor

0,4

Lamp wattage

2,6 W

Voltage type

AC

Suitable for ECG

No

Suitable for magnetic ballast

No

Luminous flux

320 lm

Rated luminous flux according to IEC 62612

320 lm

Lamp luminous efficacy

123 lm/W

Color rendering index CRI

80-89

Lamp shape

other

Filament lamp

No

Glass/cover version

clear

Light color according to EN 12464-1

warm white <3300 K

Base

G9

Color

multicolored

Color temperature

2.700 K

Beam angle

320 °

Color consistency (McAdam ellipse)

SDCM6

Dimming phase cut-off

No

Phase control dimming

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming Bluetooth

No

Dimming Wi-Fi

No

Without dimming function

Yes

Diameter

17 mm

Length

52 mm

Protection class (IP)

IP20

Energy efficiency class according to EU Directive 2019/2015

E

Min. number of switching operations

100.000

Weighted energy consumption in 1,000 hours

3 kWh

Average rated service life

15.000 h

Remote control possible

No

With motion detector

No

With remote control

No

With twilight switch

No

Photobiological safety according to EN 62471

RG1

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes
