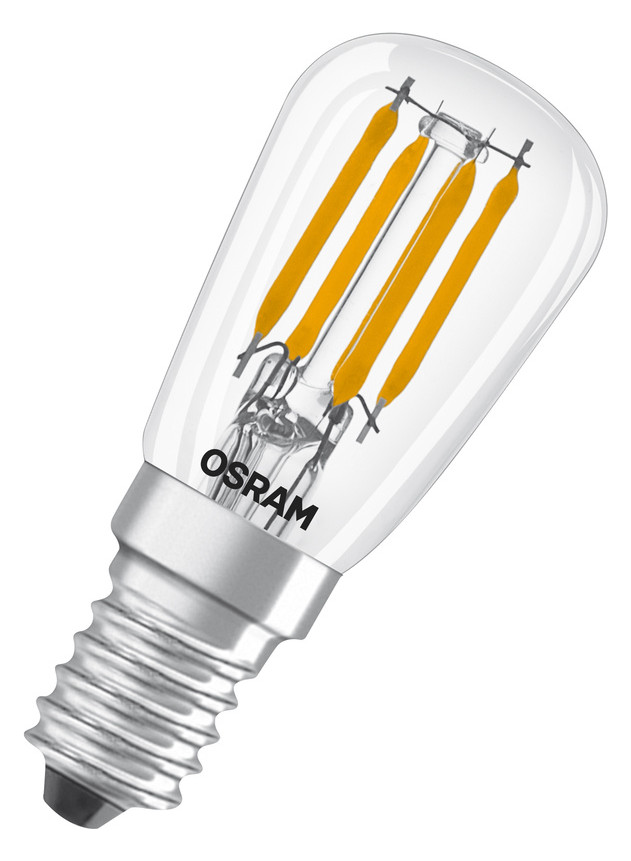

Dimmable Small LED Special Lamps with E14 Screw Base

SKU: 02-4099854247279
Datasheet: Download PDF
For more information, please refer to the data sheet!
Dimmable small LED special lamps with E14 screw base. Product features: LED alternative to conventional high-voltage lamps. Good light quality; Color rendering index Ra: ≥80; constant color location. Product advantages: Extremely small design. Good all-round light emission. Ideal for decorative and free-burning use. Long service life of up to 15,000 h. Three-year warranty. Lower energy consumption than incandescent or halogen lamps. Areas of application: Household refrigerators. For atmospheric lighting accents in living rooms and party cellars. Small designer lamps. Sewing machine. Outdoor use only in suitable outdoor luminaires.
Weight
0,01 kg
Nominal voltage

220 V

Rated current

13 mA

Power factor

0,4

Lamp wattage

2,8 W

Voltage type

AC

Suitable for ECG

No

Suitable for magnetic ballast

No

Luminous flux

250 lm

Rated luminous flux according to IEC 62612

250 lm

Lamp luminous efficacy

89 lm/W

Color rendering index CRI

80-89

Lamp shape

Tube, single-ended

Filament lamp

Yes

Glass/cover version

clear

Light color according to EN 12464-1

warm white <3300 K

Base

E14

Color

multicolored

Color temperature

2.700 K

Beam angle

300 °

Color consistency (McAdam ellipse)

SDCM6

Dimming phase cut-off

No

Phase control dimming

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming Bluetooth

No

Dimming Wi-Fi

No

Without dimming function

No

Diameter

26 mm

Length

63 mm

Protection class (IP)

IP20

Energy efficiency class according to EU Directive 2019/2015

F

Lamp designation

T8

Min. number of switching operations

100.000

Distortion factor (THD)

60

Weighted energy consumption in 1,000 hours

3 kWh

Average rated service life

15.000 h

Remote control possible

No

With motion detector

No

With remote control

No

With twilight switch

No

Photobiological safety according to EN 62471

RG1

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes
