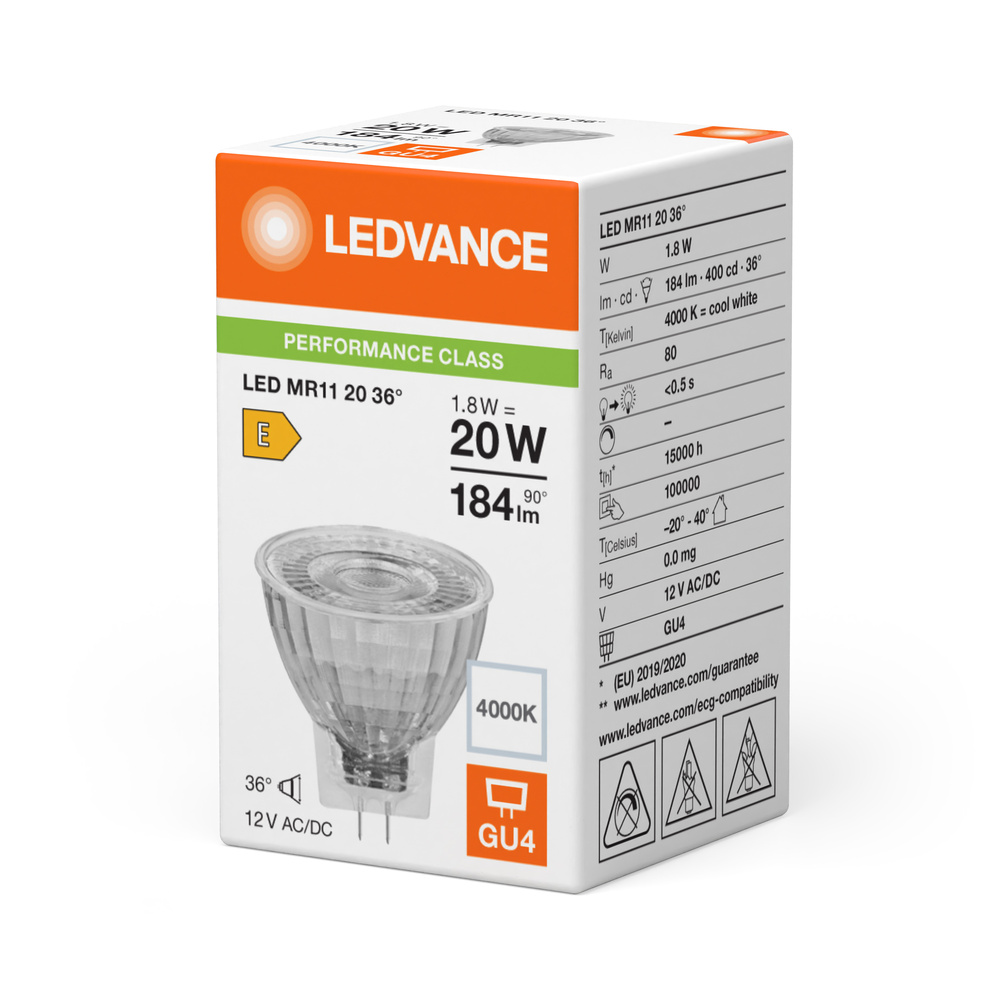

Low-voltage LED reflector lamps MR11 with retrofit socket

SKU: 02-4099854246371
Datasheet: Download PDF
For more information, please refer to the data sheet!
Low-voltage LED reflector lamps MR11 with retrofit socket. Product features: LED alternative to low-voltage halogen lamps. High color consistency: ≤6 SDCM (threshold value unit). Not dimmable. Socket: GU4. Lamp made of glass. Good light quality; Color rendering index Ra: ≥80. Service life: up to 15,000 h. Product advantages: Simple, fast and safe lamp replacement without rewiring. Design, dimensions, luminous flux comparable to an incandescent or halogen lamp. Low maintenance due to long service life. No UV- and IR-related components in the light beam. Compatible with many commercially available electronic ballasts (see also compatibility list). Instant 100% light, no warm-up time. Lower energy consumption than incandescent or halogen lamps. Areas of application: Sales and showrooms. Household applications. Application in industry. Accent. Outdoor use only in suitable outdoor luminaires.
Weight
0,02 kg
Nominal voltage

12 V

Rated current

240 mA

Power factor

0,5

Lamp wattage

1,8 W

Voltage type

AC/DC

Suitable for ECG

Yes

Suitable for magnetic ballast

Yes

Luminous flux

184 lm

Rated luminous flux according to IEC 62612

184 lm

Lamp luminous efficacy

102 lm/W

Luminous intensity

400 cd

Color rendering index CRI

80-89

Lamp shape

Reflector

Filament lamp

No

Glass/cover version

clear

Light color according to EN 12464-1

neutral white 3300 to 5300 K

Base

GU4

Color temperature

4.000 K

Beam angle

36 °

Color consistency (McAdam ellipse)

SDCM6

Dimming phase cut-off

No

Phase control dimming

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming Bluetooth

No

Dimming Wi-Fi

No

Without dimming function

Yes

Diameter

35 mm

Length

38 mm

Protection class (IP)

IP20

Energy efficiency class according to EU Directive 2019/2015

E

Lamp designation

MR11

Min. number of switching operations

100.000

Weighted energy consumption in 1,000 hours

2 kWh

Average rated service life

15.000 h

Remote control possible

No

With motion detector

No

With remote control

No

With twilight switch

No

Photobiological safety according to EN 62471

RG1

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes
