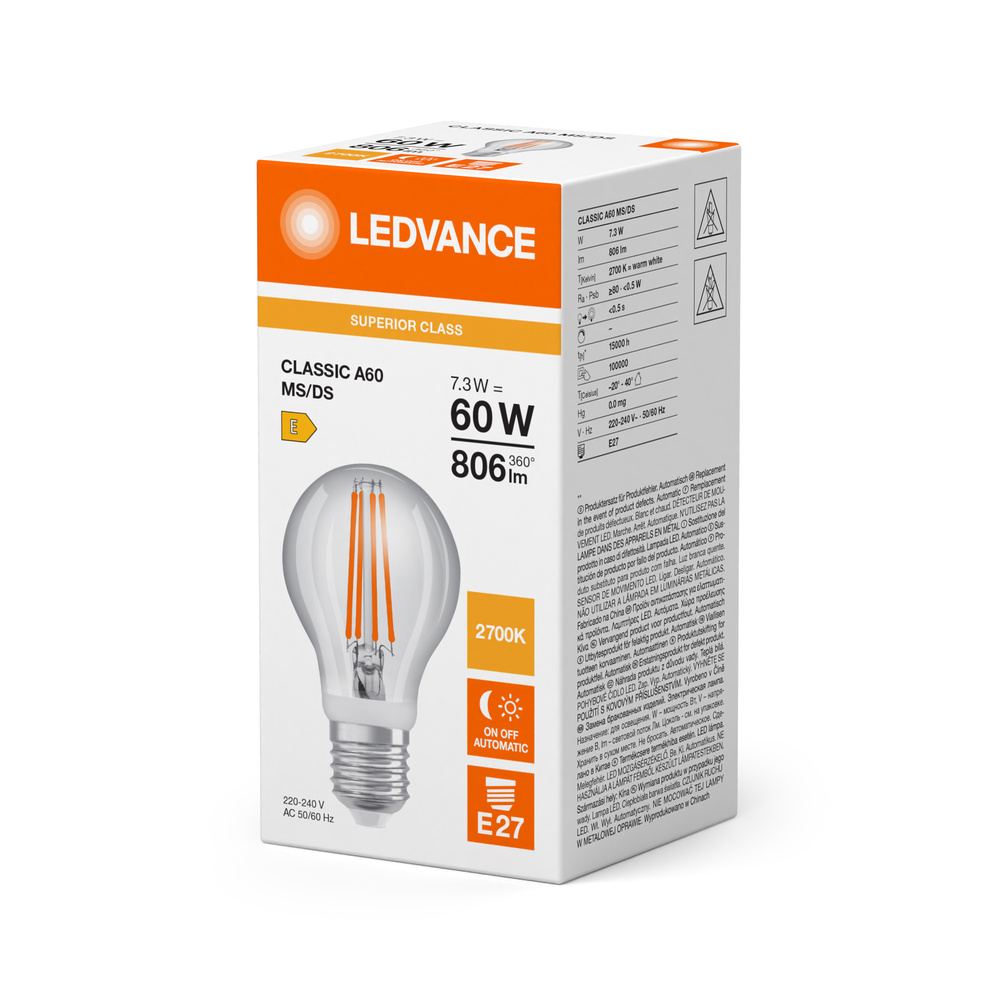

Special LED lamps with motion sensor and integrated daylight sensor, classic bulb shape

SKU: 02-4099854236792
Datasheet: Download PDF
For more information, please refer to the data sheet!
Special LED lamps with motion sensor and integrated daylight sensor, classic piston shape. Product features: The integrated microwave sensor can detect even small movements through plastic and glass covers. Motion detection up to 3 meters and 90°. Product advantages: Energy-saving lighting solution thanks to the motion detector and automatic switch-off in daylight. Short payback period thanks to low energy consumption and low maintenance costs. Easy replacement of halogen lamps thanks to compact design. Automatic light shutdown 30 seconds after the last motion detection. Lighting threshold for automatic on/off switch: 20 lx. Lower energy consumption than incandescent or halogen lamps. Areas of application: stairwell, hallway, basement and entrance area. The lamp should only turn on when motion is detected and the environment is dark. Outdoor use only in suitable outdoor luminaires.
Weight
0,04 kg
Nominal voltage

220 V

Rated current

48 mA

Power factor

0,5

Lamp wattage

7,3 W

Voltage type

AC

Suitable for ECG

No

Suitable for magnetic ballast

No

Luminous flux

806 lm

Rated luminous flux according to IEC 62612

806 lm

Lamp luminous efficacy

110 lm/W

Color rendering index CRI

80-89

Lamp shape

Pear shape

Filament lamp

Yes

Glass/cover version

clear

Light color according to EN 12464-1

warm white <3300 K

Base

E27

Color temperature

2.700 K

Beam angle

320 °

Color consistency (McAdam ellipse)

SDCM6

Dimming phase cut-off

No

Phase control dimming

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming Bluetooth

No

Dimming Wi-Fi

No

Without dimming function

Yes

Diameter

60 mm

Length

116 mm

Protection class (IP)

IP20

Energy efficiency class according to EU Directive 2019/2015

E

Lamp designation

A-Type

Min. number of switching operations

100.000

Distortion factor (THD)

90

Weighted energy consumption in 1,000 hours

8 kWh

Average rated service life

15.000 h

Remote control possible

No

With motion detector

No

With remote control

No

With twilight switch

No

Photobiological safety according to EN 62471

RG0

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes
