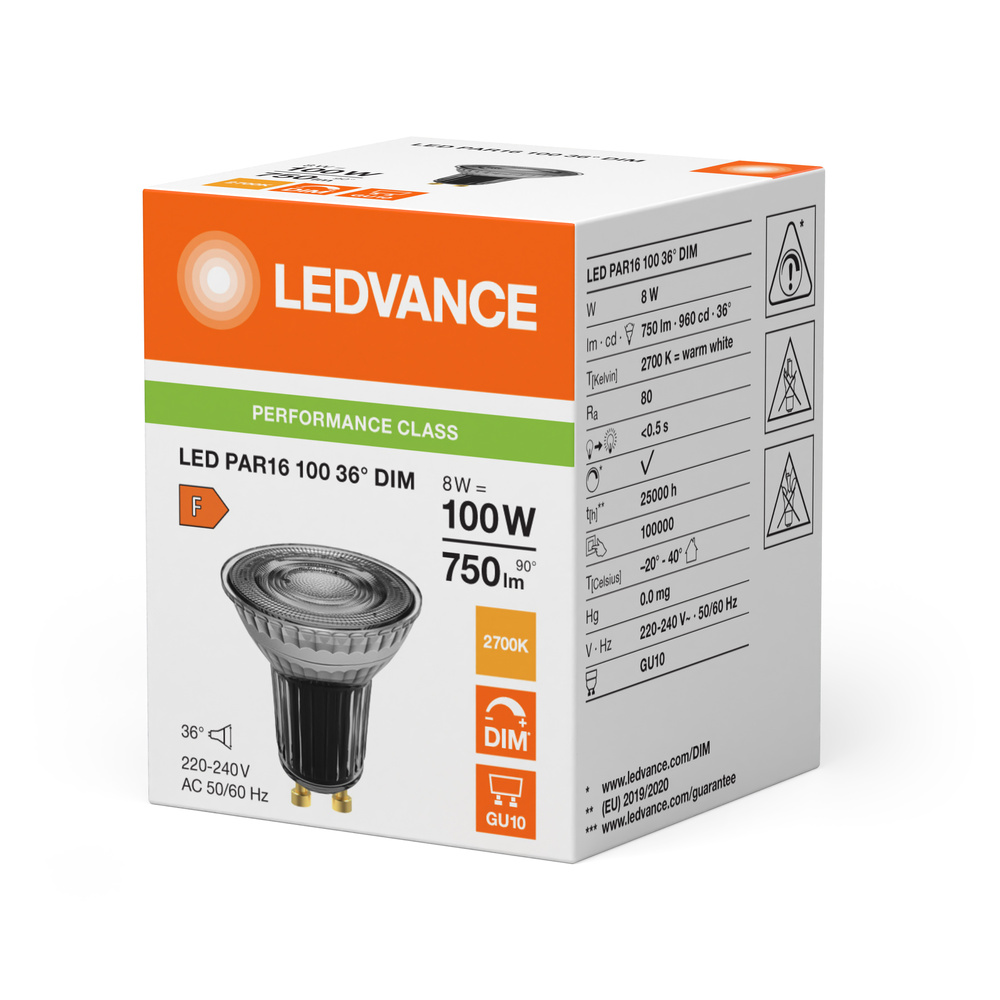

Dimmable LED reflector lamps PAR16 with retrofit socket

EU-Energielabel für dieses Produkt
SKU: 02-4099854234927
Datasheet: Download PDF
For more information, please refer to the data sheet!
Dimmable LED reflector lamps PAR16 with retrofit plug-in base. Product features: LED alternative to high-voltage halogen lamps. High color consistency: ≤5 SDCM (threshold value unit). Dimmable. Lamp made of glass. Product advantages: Simple, fast and safe lamp replacement without rewiring. Design, dimensions, luminous flux comparable to an incandescent or halogen lamp. Low maintenance due to long service life. No UV- and IR-related components in the light beam. Stepless dimming. Very high dimmer compatibility, see auchwww.ledvance.de/dim. Instant 100% light, no warm-up time. Lower energy consumption than incandescent or halogen lamps. Areas of application: Sales and showrooms. Household applications. Application in industry. Accent. Outdoor use only in suitable outdoor luminaires.
Weight
0,06 kg
Nominal voltage

220 V

Rated current

46 mA

Power factor

0,7

Lamp wattage

8 W

Voltage type

AC

Suitable for ECG

No

Suitable for magnetic ballast

No

Luminous flux

750 lm

Rated luminous flux according to IEC 62612

750 lm

Lamp luminous efficacy

93 lm/W

Luminous intensity

960 cd

Color rendering index CRI

80-89

Lamp shape

Reflector

Filament lamp

No

Glass/cover version

clear

Light color according to EN 12464-1

warm white <3300 K

Base

GU10

Color temperature

2.700 K

Beam angle

36 °

Color consistency (McAdam ellipse)

SDCM5

Dimming phase cut-off

Yes

Phase control dimming

Yes

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming Bluetooth

No

Dimming Wi-Fi

No

Without dimming function

No

Diameter

50 mm

Length

52 mm

Protection class (IP)

IP20

Energy efficiency class according to EU Directive 2019/2015

E

Lamp designation

PAR16

Min. number of switching operations

100.000

Distortion factor (THD)

150

Weighted energy consumption in 1,000 hours

8 kWh

Average rated service life

25.000 h

Remote control possible

No

With motion detector

No

With remote control

No

With twilight switch

No

Photobiological safety according to EN 62471

RG1

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes
