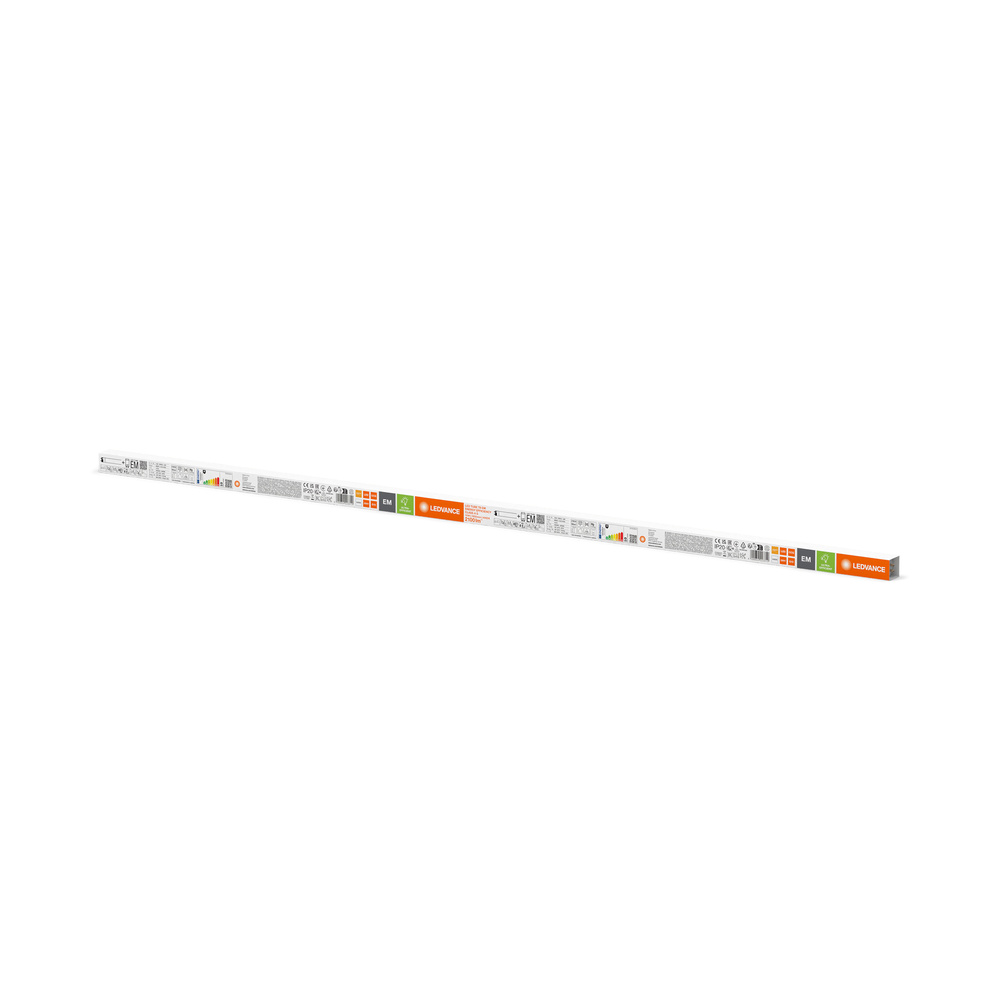

High-performance LED tubes for electromagnetic ballasts (KVG/WG) and mains voltage, EEK A

SKU: 02-4099854223310
Datasheet: Download PDF
For more information, please refer to the data sheet!
High-performance LED tubes for electromagnetic ballasts (KVG/WG) and mains voltage, EEK A. Product features: LED replacement for conventional T8 fluorescent lamps with G13 base in KVG luminaires or mains voltage. Extremely high efficiency of 210 lm/W. Low flicker according to EU 2019/2020 (SVM ?0.4 / PstLM ? 1). ENEC 10 VDE mark. Service life: up to 100,000 h. Degree of protection: IP20. Mercury-free and RoHS compliant. Product advantages: Highest possible energy savings thanks to energy efficiency class A. No sagging thanks to glass technology. Support in the implementation of HACCP concepts from production to product presentation. Very high switching strength. Simple, fast and safe lamp replacement without rewiring. Energy savings of up to 72% (compared to T8 fluorescent lamps). Full brightness without a warm-up phase, making it ideal in combination with sensors. Also suitable for operation at low temperatures. Areas of application: General lighting in ambient temperatures of -20...+50 °C. Lighting in industrial production. Traffic zones and corridors. Supermarkets and department stores. Industry. Technical equipment: Suitable for operation with low-loss and conventional ballasts.
Weight
0,23 kg
Nominal voltage

220 V

Rated current

47 mA

Power factor

0,9

Lamp wattage

10 W

Voltage type

AC

Suitable for ECG

No

Suitable for magnetic ballast

Yes

Luminous flux

2.100 lm

Rated luminous flux according to IEC 62612

2.100 lm

Lamp luminous efficacy

210 lm/W

Color rendering index CRI

80-89

Filament lamp

No

Glass/cover version

frosted

Light color according to EN 12464-1

neutral white 3300 to 5300 K

Base

G13

Color

white

Color temperature

4.000 K

Housing color

white

Beam angle

190 °

Color consistency (McAdam ellipse)

SDCM6

Dimming phase cut-off

No

Phase control dimming

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming Bluetooth

No

Dimming Wi-Fi

No

Without dimming function

Yes

Diameter

26,7 mm

Length

1.212 mm

Protection class (IP)

IP20

Energy efficiency class according to EU Directive 2019/2015

A

Lamp designation

T8

Min. number of switching operations

200.000

Distortion factor (THD)

22

Weighted energy consumption in 1,000 hours

10 kWh

Average rated service life

100.000 h

Remote control possible

No

With motion detector

No

With remote control

No

With twilight switch

No

Photobiological safety according to EN 62471

RG0

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes
