Recessed luminaires, Tunable White, 115 lm/W, tool-free installation, DALI-2 IoT technology

SKU: 02-4099854140167
Datasheet: Download PDF
For more information, please refer to the data sheet!
Recessed luminaires, Tunable White, 115 lm/W, tool-free installation, DALI-2 IoT technology. Product features: IoT-enabled luminaire with DALI-2 technology. Colour temperature adjustable via Tunable White: 2,700-6,500 K. Very high colour rendering index Ra: > 90. Version available with pre-assembled Wago connector (type: WAGO 771-9985/206-301) for PANEL 625 CSW. Suitable for use on central battery systems according to EN60598-2-22. Product advantages: Suitable luminaire for VIVARES DALI, VIVARES DALI HCL and other DALI-2 lighting controls. Enables individual Tunable White lighting solution in combination with compatible DALI-2 control units. Supports LEDVANCE Human Centric Lighting in combination with the DALI PRO 2 IOT LDVV control unit (4052899627079). Compatible with VIVARES CLOUD SERVICE for power consumption monitoring. Through-wiring possible with included cable clamp. Energy savings thanks to high system luminous efficiency: up to 115 lm/W. External DALI-2 driver for extended flexibility and easy installation. Low-flicker light thanks to special electronic ballast. Good glare control (UGR < 19). 5 years warranty. Areas of application: Direct replacement for luminaires with fluorescent lamps. Wide Tunable White CRI90 light color spectrum for high-quality Human Centric Lighting applications. Office space, conference rooms. Reception areas, entrance areas, corridors, elevators. Available for pitches of 600 mm x 600 mm, 625 mm x 625 mm and 1200 x 300 mm. Technical equipment: Accessories available for various installation options. External ballast included. Security kit (safety rope and clamps) included. Pre-assembled cable clamp for through-wiring.
Weight
3,44 kg
Suitable for wall mounting

Yes

Suitable for pendant suspension

Yes

Suitable for ceiling mounting

Yes

Suitable for recessed mounting

Yes

Suitable for surface mounting

Yes

Suitable for strip light configuration

No

Suitable for VDU workstations according to EN 12464-1

Yes

Light source

LED not replaceable

With illuminant

Yes

Suitable for number of light sources

0

Material of the housing

Aluminum

Surface protection housing

powder-coated

Housing color

white

Design of the grid

dull

Voltage type

AC/DC

Nominal voltage

220 – 240 V

Rated current

190 mA

Operating device

EVG

With control gear

Yes

Replaceable operating device

Yes

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI-2

Yes

DALI dimming

Yes

DMX dimming

No

Dimming DSI

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Without dimming function

No

Light distributor

Diffuser lens/optics/panel

Color consistency (McAdam ellipse)

SDCM3

Light emission

direct

Energy efficiency class of the light source according to EU Directive 2019/2015

not required

Rated service life L70/B50 at 25 °C

70.000 h

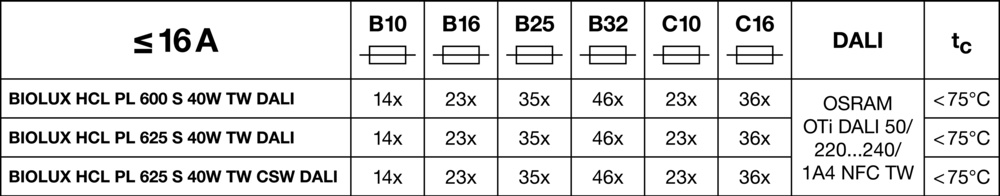

Max. Number of lights Circuit breaker C16

36

Protection class (IP)

IP20

Impact resistance

IK02

Protection class

II

Luminaire with limited surface temperature "D mark" according to EN 60598-2-24

No

Rated ambient temperature according to IEC 62722-2-1

-20 – 40 °C

Suitable for emergency lighting

Yes

Integrated emergency power supply

No

With motion detector

No

With light sensor

No

Covering the luminaire with thermal insulation material possible

No

With air vents

No

Max. System performance

40 W

Luminaire luminous efficacy

115 lm/W

Rated luminous flux according to IEC 62722-2-1

4.600 lm

Color temperature

2.700 – 6.500 K

Color rendering index CRI

90-100

Power factor

0,9

Constant luminous flux control

No

Width

620 mm

Height/depth

11 mm

Length

620 mm

Installation length

600 mm

Installation width

600 mm

Installation height/depth

50 mm

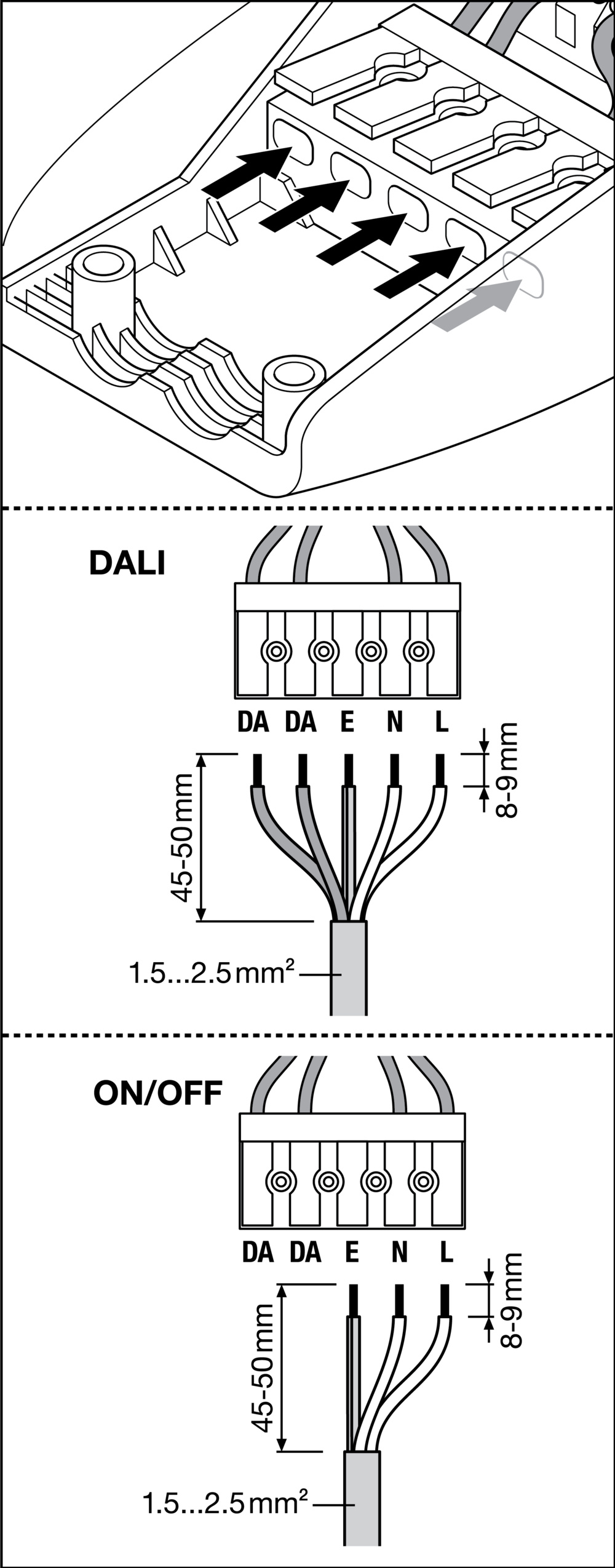

Type of wiring

Conclusion

Number of poles

4

Connection type

Plug-in terminal

Photobiological safety according to EN 62471

RG0

Glare limitation (UGR)

19

Adjustable color temperature

stepless

Adjustable luminous flux

No

Adjustable beam angle

No

Operation via Bluetooth

No

Compatible with Casambi

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes

Meets min. EIA service life criterion L90 (at 50,000 h at tq = 25 °C)

No
