Double-sided LED special lamps

EU-Energielabel für dieses Produkt
SKU: 02-4099854049736
Datasheet: Download PDF
For more information, please refer to the data sheet!
Double-sided LED special lamps. Product features: LED alternative to conventional R7s lamps. Good light quality; Color rendering index Ra: ≥ 80; constant color location. Product advantages: Fits into most R7s luminaires due to off-center bases. Good all-round light emission. Long service life of up to 15,000 h. Lower heat generation (compared to the standard reference product). Four-year warranty. Areas of application: General lighting at ambient temperatures of -20...+40 °C. Gastronomy. Household applications. Outdoor use only in suitable outdoor luminaires.
Weight
0,036 kg
Minimum order quantity

20 pieces

Order step

20 pieces

Weight

0,036 kg

Product group

LED lamp/multi-LED (EC001959)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes

Nominal voltage

220 – 240 V

Rated current

54 mA

Power factor

0,5

Lamp wattage

8 W

Voltage type

AC

Luminous flux

1.055 lm

Rated luminous flux according to IEC 62612

1.055 lm

Lamp luminous efficacy

131 lm/W

Color rendering index CRI

80-89

Lamp shape

Tube, double-ended

Filament lamp

No

Glass/cover version

clear

Light color according to EN 12464-1

warm white <3300 K

Base

R7s

Color

white

Color temperature

2.700 K

Housing color

white

Beam angle

330 °

Color consistency (McAdam ellipse)

SDCM6

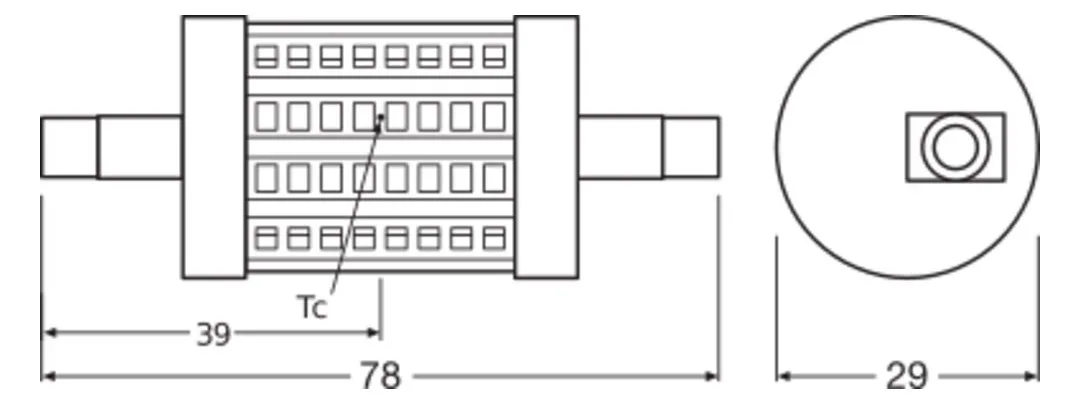

Diameter

28 mm

Length

78 mm

Protection class (IP)

IP20

Lamp designation

other

Energy efficiency class

E

Min. number of switching operations

100.000

Weighted energy consumption in 1,000 hours

8 kWh

Average rated service life

15.000 h

Remote control possible

No

Photobiological safety according to EN 62471

RG0

RoHS applicable

Yes

Country of origin

China (CN)

Commodity code

Light-emitting diode lamps (LED lamps) (85395200)

REACH Indicator

Yes

Datenblatt
4099854049736_tds_de.pdfasset-13164602-2.pdf
Dimmable

No

With remote control

No

Suitable for ECG

No

Suitable for magnetic ballast

No

Dimming phase cut-off

No

Phase control dimming

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming Bluetooth

No

Dimming Wi-Fi

No

Without dimming function

Yes

Energy efficiency class according to EU Directive 2019/2015

E

Distortion factor (THD)

110

With motion detector

No

With twilight switch

No
