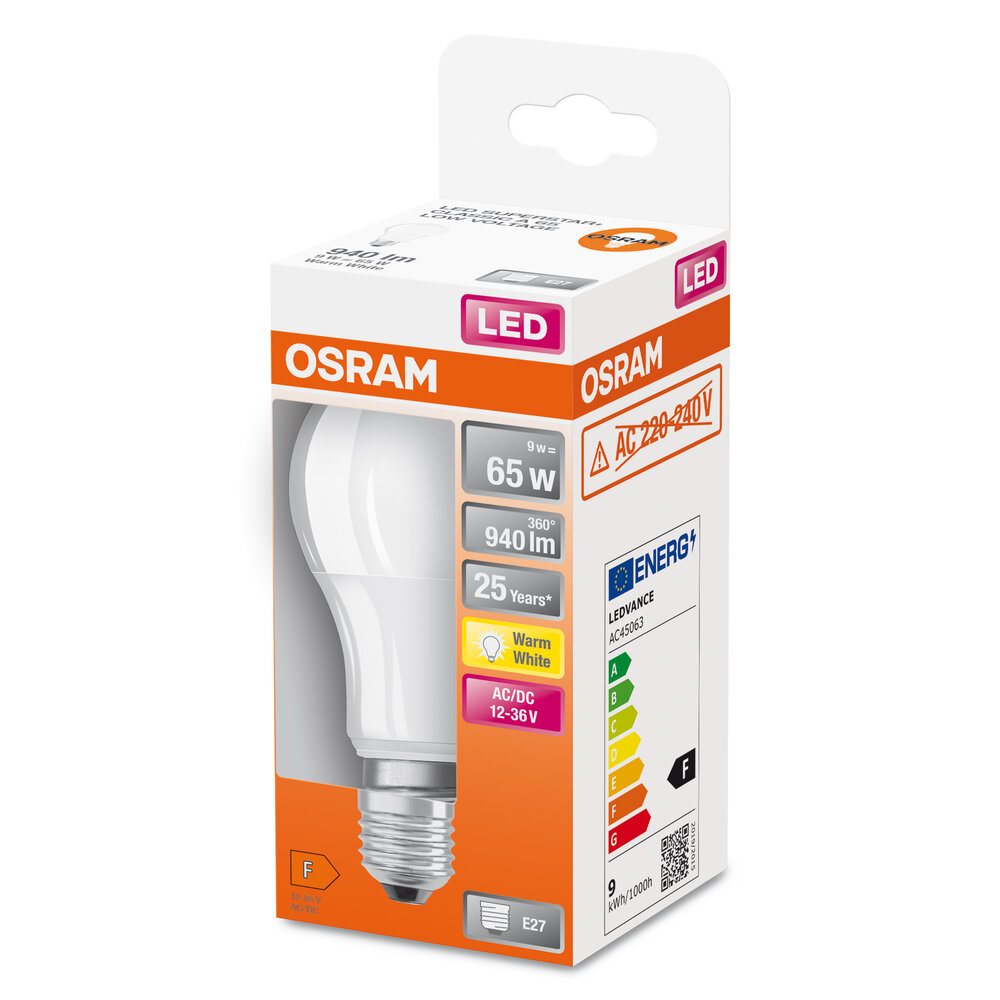

LED lamps, classic bulb shape

EU-Energielabel für dieses Produkt
SKU: 02-4099854040467
Datasheet: Download PDF
For more information, please refer to the data sheet!
LED lamps, classic bulb shape. Product features: LED lamp for low voltage systems (AC/DC 12V-36V). Mercury-free lamps. Product advantages: For off-grid use. Low energy consumption. Areas of application: Battery-operated system without power connection. Camping, mobile homes, garden shed. Outdoor applications only in suitable luminaires.
Weight
0,035 kg
Minimum order quantity

6 pieces

Order step

6 pieces

Weight

0,035 kg

Product group

LED lamp/multi-LED (EC001959)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes

Nominal voltage

12 – 36 V

Rated current

1,1 mA

Lamp wattage

9 W

Voltage type

AC/DC

Luminous flux

940 lm

Rated luminous flux according to IEC 62612

940 lm

Lamp luminous efficacy

104 lm/W

Color rendering index CRI

80-89

Lamp shape

Pear shape

Filament lamp

No

Glass/cover version

frosted

Light color according to EN 12464-1

warm white <3300 K

Base

E27

Color

white

Color temperature

2.700 K

Housing color

white

Beam angle

200 °

Color consistency (McAdam ellipse)

SDCM6

Diameter

60 mm

Length

112 mm

Protection class (IP)

IP20

Lamp designation

A-Type

Energy efficiency class

F

Min. number of switching operations

100.000

Weighted energy consumption in 1,000 hours

9 kWh

Average rated service life

25.000 h

Remote control possible

No

Photobiological safety according to EN 62471

RG0

RoHS applicable

Yes

Country of origin

China (CN)

Commodity code

Light-emitting diode lamps (LED lamps) (85395200)

REACH Indicator

Yes

Datenblatt
Dimmable

No

With remote control

No

Power factor

0,5

Suitable for ECG

No

Suitable for magnetic ballast

No

Dimming phase cut-off

No

Phase control dimming

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming Bluetooth

No

Dimming Wi-Fi

No

Without dimming function

Yes

Energy efficiency class according to EU Directive 2019/2015

F

Distortion factor (THD)

68

With motion detector

No

With twilight switch

No
