LED tubes with extra high luminous flux for electromagnetic ballasts (KVG/VVG) and mains voltage, splinter protection
31. October 2024
LED tubes with extra high luminous flux for electromagnetic ballasts (KVG/VVG) and mains voltage, splinter protection
31. October 2024
ledvance/asset-13097130.jpg

LED tubes with extra high luminous flux for electromagnetic ballasts (KVG/VVG) and mains voltage, splinter protection

SKU: 02-4099854036835
Datasheet: Download PDF
For more information, please refer to the data sheet!
LED tubes for electromagnetic ballasts (KVG/WG), splinter protection. Product features: LED replacement for conventional T8 fluorescent lamps with G13 base in KVG luminaires or on mains voltage. Low flicker according to EU 2019/2020 (SVM ≤0.4 / PstLM ≤ 1). Glass lamp tube with shatter protection for applications e.g. in the food industry. For particularly homogeneous illumination. Mercury-free and RoHS compliant. Degree of protection: IP20. Product advantages: No sagging thanks to glass tube. Simple, fast and safe lamp replacement without rewiring. Energy savings of up to 60% (compared to T8 fluorescent lamps). Very high switching strength. High luminous flux for demanding lighting tasks. Also suitable for operation at low temperatures. Full brightness without a warm-up phase, making it ideal in combination with sensors. Areas of application: General lighting in ambient temperatures of -20...+50°C. Lighting in industrial production. Traffic zones and corridors. Supermarkets and department stores. Industry. Technical equipment: Suitable for operation with low-loss and conventional ballasts.
Weight
0,175 kg
Minimum order quantity

10 pieces

Order step

10 pieces

Weight

0,175 kg

Product group

LED lamp/multi-LED (EC001959)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes

Nominal voltage

220 – 240 V

Rated current

70 mA

Power factor

0,9

Lamp wattage

15,6 W

Voltage type

AC

Luminous flux

2.500 lm

Rated luminous flux according to IEC 62612

2.500 lm

Lamp luminous efficacy

160 lm/W

Color rendering index CRI

80-89

Filament lamp

No

Glass/cover version

frosted

Light color according to EN 12464-1

neutral white 3300 to 5300 K

Base

G13

Color temperature

4.000 K

Color consistency (McAdam ellipse)

SDCM5

Diameter

26,7 mm

Length

1.212 mm

Protection class (IP)

IP20

Lamp designation

T8

Energy efficiency class

C

Min. number of switching operations

200.000

Weighted energy consumption in 1,000 hours

16 kWh

Average rated service life

60.000 h

Remote control possible

No

Photobiological safety according to EN 62471

RG0

RoHS applicable

Yes

Country of origin

China (CN)

Commodity code

Light-emitting diode lamps (LED lamps) (85395200)

REACH Indicator

Yes

Datenblatt
4099854036835_tds_de.pdfasset-13101761-41.pdfasset-13145595.jpgasset-13101774-4.pdf
Dimmable

No

With remote control

No

Suitable for ECG

No

Suitable for magnetic ballast

Yes

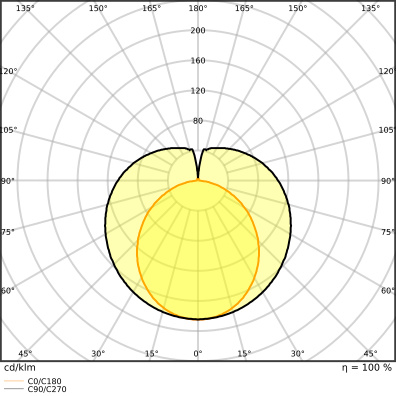

Beam angle

190 °

Dimming phase cut-off

No

Phase control dimming

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming Bluetooth

No

Dimming Wi-Fi

No

Without dimming function

Yes

Energy efficiency class according to EU Directive 2019/2015

C

With motion detector

No

With twilight switch

No
