Rectangular recessed luminaires with high glare control, for 1200 x 600 mm ceiling systems

SKU: 02-4099854017643
Datasheet: Download PDF
For more information, please refer to the data sheet!
Rectangular recessed luminaires with strong glare control, for 1200 x 600 mm ceiling systems. Product features: Extruded aluminium frame. Polystyrene diffuser. Service life (L80/B10): up to 50,000 h (at 25 °C). Product advantages: Good glare control (UGR < 19). Low-flicker light thanks to special electronic ballast. Energy savings thanks to system luminous efficacy of up to 110 lm/W. External driver for extended flexibility and easy installation. Versions with DALI-ECG available. 5-year warranty. Areas of application: Direct replacement for luminaires with fluorescent lamps. Office space, conference rooms. Reception areas, entrance areas, corridors, elevators. Suitable for recessed ceiling systems with a grid dimension of 1200 x 600 mm. Technical equipment: Accessories available for various installation options. Safety rope for lights included. Safety clamps pre-assembled. External ballast included. Suitable for operation with Emergency Conversion Box. Connection box with 5-pin terminal for through-wiring for cable cross-sections up to 2.5 mm² available separately.
Weight
4 kg
Minimum order quantity

2 pieces

Order step

2 pieces

Weight

4 kg

Product group

Ceiling/wall light (EC002892)

Replaceable operating device

Yes

Dimming DALI-2

No

Max. Number of lights Circuit breaker C16

55

Constant luminous flux control

No

Adjustable color temperature

No

Adjustable luminous flux

No

Adjustable beam angle

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes

Housing color

white

Max. System performance

53 W

Color temperature

4.000 K

Protection class (IP)

IP40

Without dimming function

Yes

Width

595 mm

Height/depth

34 mm

Length

1.195 mm

Installation length

1.175 mm

Installation width

575 mm

Installation height/depth

50 mm

Design of the grid

high gloss

Voltage type

AC

Nominal voltage

220 – 240 V

Rated current

230 mA

Light distributor

Diffuser lens/optics/panel

Color consistency (McAdam ellipse)

SDCM5

Light emission

direct

Rated service life L70/B50 at 25 °C

70.000 h

Rated service life L80/B10 at 25 °C

50.000 h

Rated service life L90/B10 at 25 °C

40.000 h

Impact resistance

IK02

Protection class

II

Rated ambient temperature according to IEC 62722-2-1

-10 – 45 °C

Luminaire luminous efficacy

110 lm/W

Rated luminous flux according to IEC 62722-2-1

5.830 lm

Type of wiring

Suitable for through-wiring

Number of poles

2

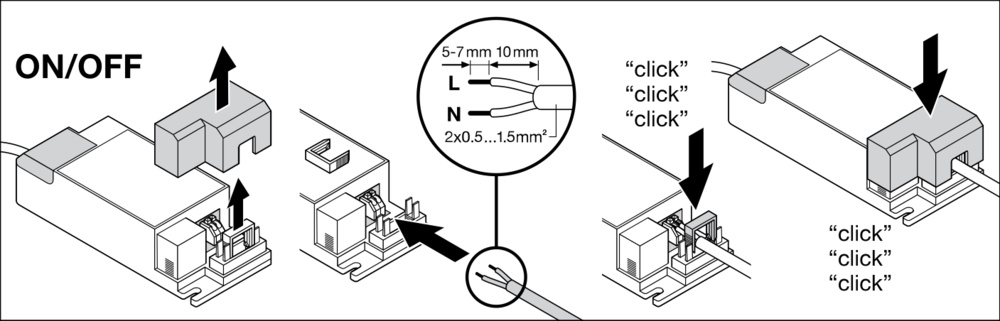

Connection type

Plug-in terminal

Photobiological safety according to EN 62471

RG0

Suitable for pendant suspension

Yes

Suitable for ceiling mounting

Yes

Suitable for recessed mounting

Yes

Suitable for surface mounting

Yes

With illuminant

Yes

With control gear

Yes

Suitable for emergency lighting

Yes

Suitable for VDU workstations according to EN 12464-1

Yes

RoHS applicable

Yes

Country of origin

China (CN)

Statistische Warennummer

Lüster und andere elektrische Decken- und Wandleuchten, mit LED-Lichtquelle, aus anderen Stoffen als Kunststoff, keramischen Stoffen oder Glas (94051190)

REACH Indicator

No

Datenblatt
4099854017643_tds_de.pdfasset-13080889-1.jpgasset-13097361-3.pdfasset-13088502-1.jpgasset-13136817-1.pdfasset-13078331-1.jpgasset-13078329.jpg
Suitable for wall mounting

No

Suitable for surface-mounted mounting

Yes

Suitable for strip light configuration

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

DMX dimming

No

Dimming DSI

No

Dimming potentiometer (device-integrated)

No

Dimming GPRS

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Dimming depending on the control gear

No

Rated ambient temperature according to IEC62722-2-1

-10 – 45 °C

Integrated emergency power supply

No

With motion detector

No

With light sensor

No

Covering the luminaire with thermal insulation material possible

No

With air vents

No

Operation via Bluetooth

No

Material of the housing

Steel

Energy efficiency class of the light source according to EU Directive 2019/2015

not required

Luminaire with limited surface temperature "D mark" according to EN 60598-2-24

No

Light color

white

Color rendering index CRI

80-89

Power factor

0,9

Glare limitation (UGR)

19

Compatible with Casambi

No

Meets min. EIA service life criterion L90 (at 50,000 h at tq = 25 °C)

No
