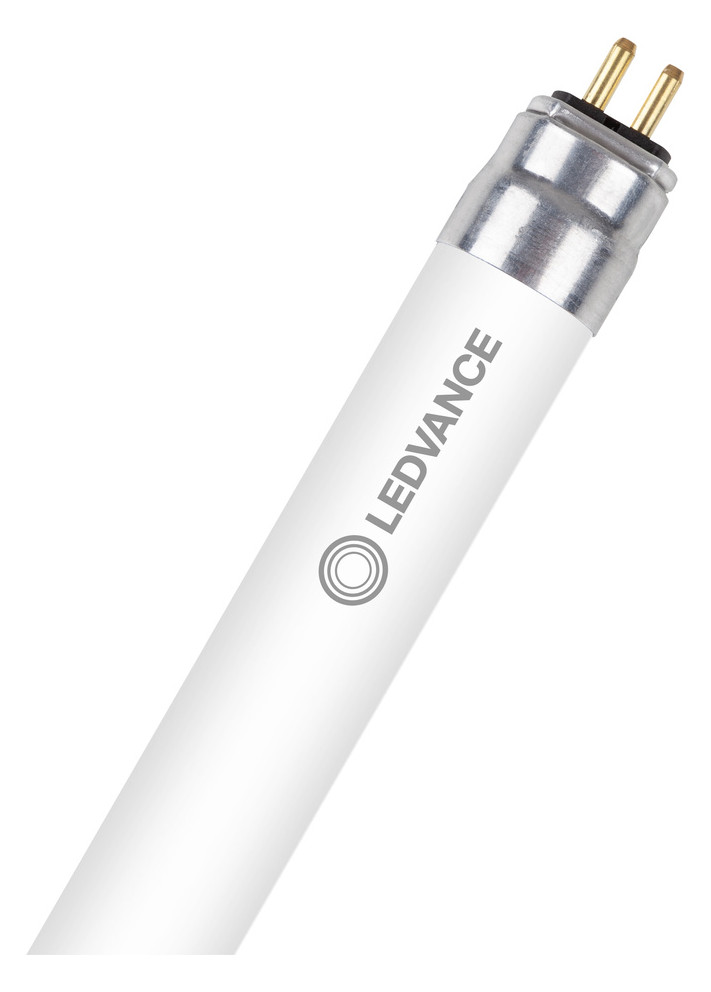

LED Tubes T5 EXTERNAL for LED Drivers EXTERNAL

SKU: 02-4099854015199
Datasheet: Download PDF
For more information, please refer to the data sheet!
LED Tubes T5 EXTERNAL for LED Drivers EXTERNAL. Product features: Designed for operation on LED DRIVER LED TUBE EXTERNAL DALI. Glass lamp tube with splinter protection. Product advantages: Splinter protection thanks to special PET coating. No sagging thanks to glass tube. Very high switching strength. 5-year warranty. Areas of application: Industrial lighting (e.g. production plants, logistics centres, warehouses). Linear lighting solutions for offices, educational institutions, warehouse areas and retail. Shops, supermarkets. Suitable for indoor SELV installations. General lighting in ambient temperatures of -20...+50°C.
Weight
0,13 kg
Nominal voltage

42 V

Rated current

600 mA

Power factor

0,9

Lamp wattage

26 W

Voltage type

DC

Suitable for ECG

No

Suitable for magnetic ballast

No

Luminous flux

3.600 lm

Rated luminous flux according to IEC 62612

3.600 lm

Lamp luminous efficacy

138 lm/W

Color rendering index CRI

80-89

Lamp shape

Tube, double-ended

Filament lamp

No

Glass/cover version

frosted

Light color according to EN 12464-1

warm white <3300 K

Base

G5

Color temperature

3.000 K

Beam angle

180 °

Color consistency (McAdam ellipse)

SDCM5

Dimming phase cut-off

No

Phase control dimming

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming Bluetooth

No

Dimming Wi-Fi

No

Without dimming function

No

Diameter

17 mm

Length

1.163 mm

Protection class (IP)

IP20

Energy efficiency class according to EU Directive 2019/2015

E

Lamp designation

other

Min. number of switching operations

200.000

Weighted energy consumption in 1,000 hours

26 kWh

Average rated service life

50.000 h

Remote control possible

No

With motion detector

No

With remote control

No

With twilight switch

No

Photobiological safety according to EN 62471

RG0

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes
