Rectangular recessed luminaires with strong glare control, for 1200 x 300 mm ceiling systems and DALI-2 IoT technology

SKU: 02-4099854004162
Datasheet: Download PDF
For more information, please refer to the data sheet!
Rectangular recessed luminaires with strong glare control, for 1200 x 300 mm ceiling systems and DALI-2 IoT technology. Product features: IoT-enabled luminaire with DALI-2 technology. Suitable for use on central battery systems according to EN60598-2-22. Push DIM function for switching and dimming directly on the wall switch. Extruded aluminium frame. Polystyrene diffuser. 5-pin connection terminal, cable cross-section up to 5 x 2.5 mm². Service life (L80/B10): 70,000 h (at 25 °C). Product advantages: Suitable luminaire for VIVARES and other DALI-2 light management systems. Tool-free electrical connection thanks to push-button connection terminal. Through-wiring possible with included connection box. Energy savings thanks to high system luminous efficacy: up to 130 lm/W. Good glare control (UGR < 19). High color consistency with SDCM 3. Advanced services such as power consumption monitoring and remote maintenance possible with DALI versions. External driver for extended flexibility and easy installation. Low-flicker light thanks to special electronic ballast. Suitable for emergency power lighting. 5-year warranty. Areas of application: Direct replacement for recessed luminaires with fluorescent lamps. Office space, conference rooms. Reception areas, entrance areas, corridors, elevators. Suitable for recessed ceiling systems with a grid dimension of 1200 x 300 mm. Technical equipment: Accessories available for various installation options. Connection box with 5-pin terminal included. Safety rope for lights included. Safety clamps pre-assembled. External ballast included. Separate DC twistlock cable extension available. Suitable for operation with Emergency Conversion Box.
Weight
3,14 kg
Minimum order quantity

4 pieces

Order step

4 pieces

Weight

3,14 kg

Product group

Ceiling/wall light (EC002892)

Replaceable operating device

Yes

Dimming DALI-2

Yes

Max. Number of lights Circuit breaker C16

65

Constant luminous flux control

No

Adjustable color temperature

No

Adjustable luminous flux

No

Adjustable beam angle

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes

Housing color

white

Max. System performance

33 W

Color temperature

4.000 K

Protection class (IP)

IP40

Without dimming function

No

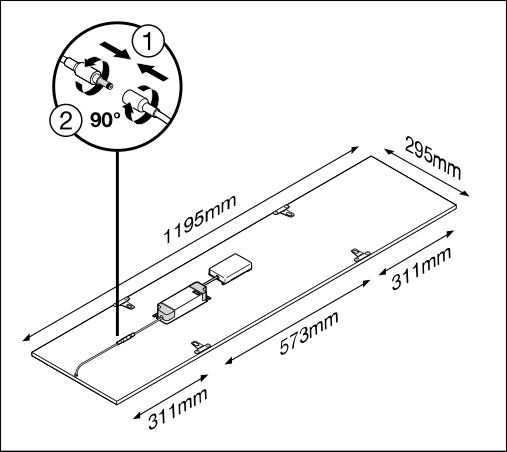

Width

295 mm

Height/depth

11 mm

Length

1.195 mm

Installation length

1.185 mm

Installation width

285 mm

Surface protection housing

powder-coated

Installation height/depth

50 mm

Design of the grid

high gloss

Voltage type

AC/DC

Nominal voltage

220 – 240 V

Rated current

155 mA

Light distributor

Diffuser lens/optics/panel

Color consistency (McAdam ellipse)

SDCM3

Light emission

direct

Rated service life L70/B50 at 25 °C

100.000 h

Rated service life L80/B10 at 25 °C

70.000 h

Rated service life L90/B10 at 25 °C

48.000 h

Impact resistance

IK02

Protection class

II

Rated ambient temperature according to IEC 62722-2-1

-10 – 50 °C

Luminaire luminous efficacy

130 lm/W

Rated luminous flux according to IEC 62722-2-1

4.320 lm

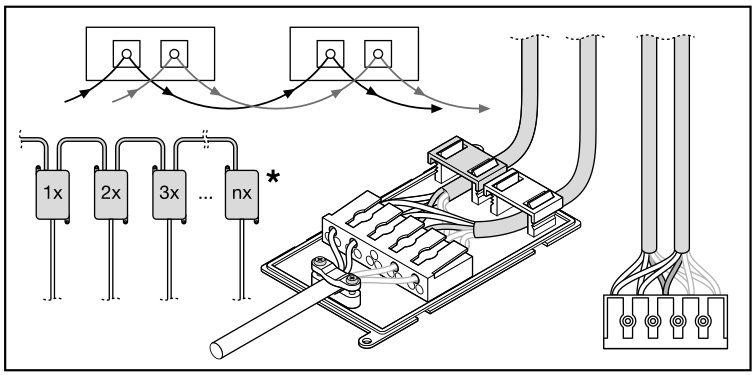

Type of wiring

Suitable for through-wiring

Number of poles

5

Connection type

Plug-in terminal

Photobiological safety according to EN 62471

RG0

Suitable for pendant suspension

Yes

Suitable for ceiling mounting

Yes

Suitable for recessed mounting

Yes

Suitable for surface mounting

Yes

With illuminant

Yes

With control gear

Yes

Suitable for emergency lighting

Yes

DALI dimming

Yes

Dimming Touch and Dim

Yes

Dimming depending on the control gear

Yes

Suitable for VDU workstations according to EN 12464-1

Yes

RoHS applicable

Yes

Country of origin

China (CN)

Statistische Warennummer

Lüster und andere elektrische Decken- und Wandleuchten, mit LED-Lichtquelle, aus anderen Stoffen als Kunststoff, keramischen Stoffen oder Glas (94051190)

REACH Indicator

Yes

Datenblatt
4099854004162_tds_de.pdfasset-13047631-44.jpgasset-13080790.jpgasset-13097807.pdfasset-13097808.pdfasset-13081505.jpgasset-13081506.jpgasset-13081507.jpgasset-13081674.jpgasset-13081675.jpgasset-13081676.jpgasset-13086626-1.pdfasset-13077908.jpgasset-13077906.jpg
Suitable for wall mounting

No

Suitable for surface-mounted mounting

Yes

Suitable for strip light configuration

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DMX dimming

No

Dimming DSI

No

Dimming potentiometer (device-integrated)

No

Dimming GPRS

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Zigbee

No

Dimming with push-button

No

Rated ambient temperature according to IEC62722-2-1

-10 – 50 °C

Integrated emergency power supply

No

With motion detector

No

With light sensor

No

Covering the luminaire with thermal insulation material possible

No

With air vents

No

Operation via Bluetooth

No

Material of the housing

Steel

Energy efficiency class of the light source according to EU Directive 2019/2015

not required

Luminaire with limited surface temperature "D mark" according to EN 60598-2-24

No

Light color

white

Color rendering index CRI

80-89

Power factor

0,9

Glare limitation (UGR)

19

Compatible with Casambi

No

Meets min. EIA service life criterion L90 (at 50,000 h at tq = 25 °C)

No
