Recessed spotlights for low-energy and narrow false ceilings, fixed

SKU: 02-4099854000188
Datasheet: Download PDF
For more information, please refer to the data sheet!

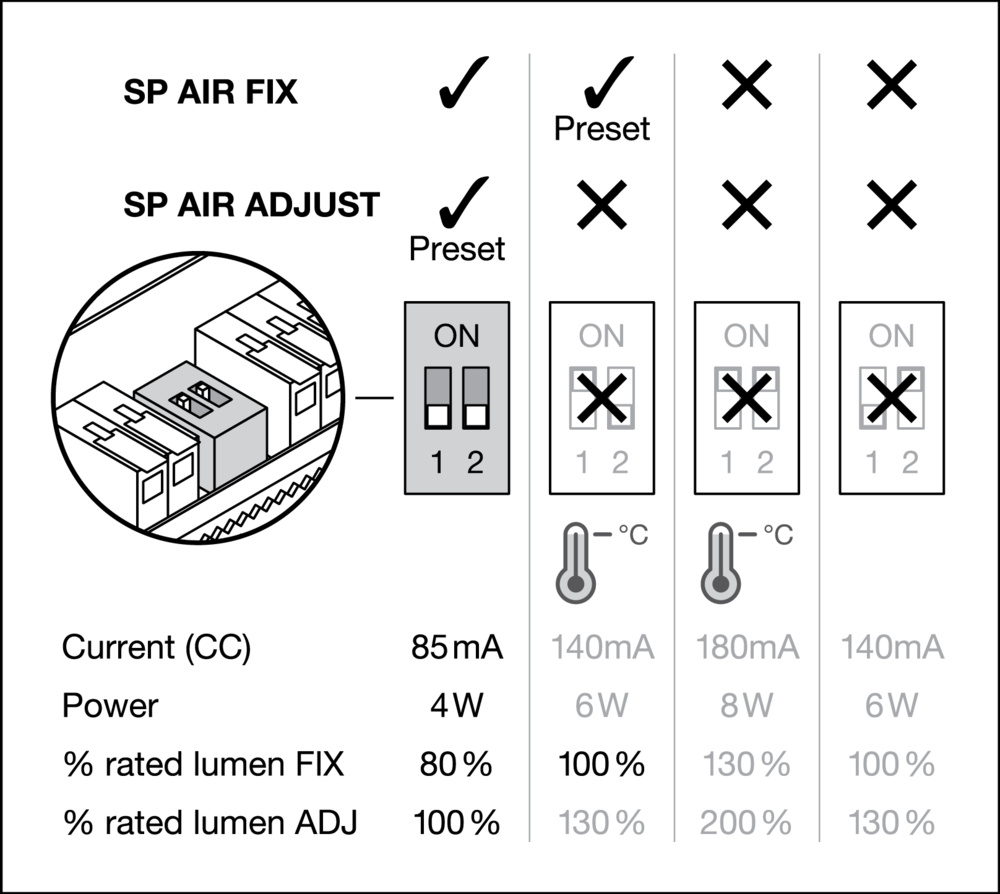

Recessed spotlights for low-energy and narrow false ceilings, fixed. Product features: Colour rendering index Ra: 90. Degree of protection: IP65 (room side). Beam angle: 36°. Die-cast aluminum housing. Springs with soft silicone coating. Dimmable (on many commercially available dimmers, see auchwww.ledvance.de/dim). through-wiring possible. Product advantages: Airtight construction for reduced air leakage and reduced energy loss. Can be covered with many types of thermal insulation materials. Flat design allows installation in low ceiling cavities. Powerselect: Adjust the brightness via dip switches on the driver. Easy replacement of the external driver thanks to the bayonet connector. Easy installation and electrical connection thanks to tool-free terminals. SCALE Design - great appearance, high-quality materials and small size fit into any environment. 5-year warranty. Areas of application: Direct replacement for recessed spotlights with halogen lamps. Ceilings in low-energy houses. General lighting. Hotel rooms and corridors. Bars, Restaurants. Accent. Living. Technical equipment: External ballast with dip switches included to adjust the power during installation.
Weight
0,215 kg
Minimum order quantity

20 pieces

Order step

20 pieces

Weight

0,215 kg

Product group

Downlight/spotlight/floodlight (EC001744)

Suitable for wall mounting

No

Replaceable operating device

Yes

Dimming DALI-2

No

Constant luminous flux control

No

Adjustable color temperature

No

Adjustable luminous flux

No

Adjustable beam angle

No

Installation diameter

68 mm

Max. Number of lights Circuit breaker C16

457

IFTTT support available

Yes

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Suitable for truss mounting

No

Suitable for platform/floor mounting

No

Suitable for busbar mounting

No

Suitable for clamp mounting

No

Suitable for cable system

No

Adjustability

not adjustable

Light source

LED not replaceable

Suitable for number of light sources

0

Version

Without

Material of the housing

Aluminum

Surface protection

powder-coated

Housing color

black

Brushed surface

No

Voltage type

AC

Nominal voltage

220 – 240 V

LED rated current with constant current

28 mA

Operating device

LED control gear, current-controlled

Without dimming function

No

Reflector

Without

Light distributor

Focus lens

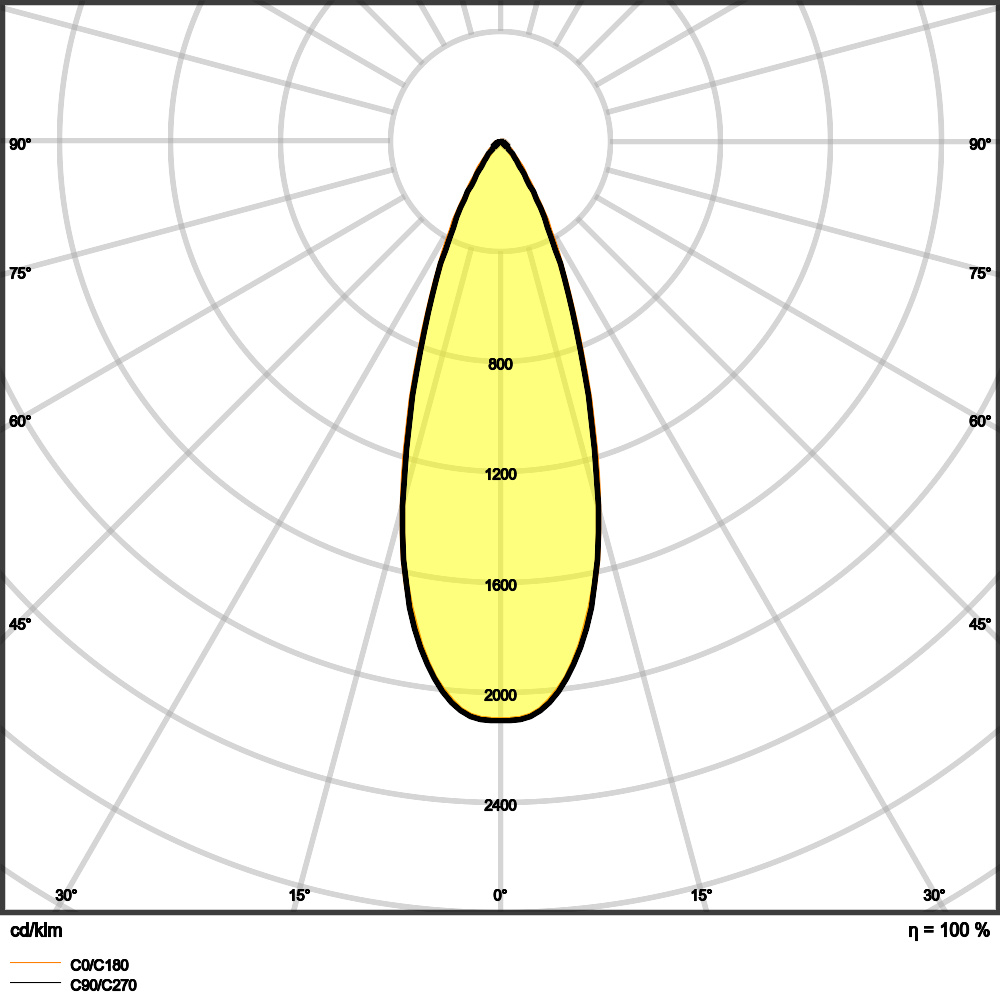

Light distribution

symmetrical

Light emission

direct

Rated service life L70/B50 at 25 °C

50.000 h

Rated service life L80/B10 at 25 °C

41.000 h

Protection class (IP)

IP65

Impact resistance

IK03

Protection class

II

Rated ambient temperature according to IEC 62722-2-1

-20 – 40 °C

Max. System performance

6 W

Color temperature

2.700 K

Color rendering index CRI

90-100

Luminous flux

480 lm

Rated luminous flux according to IEC 62722-2-1

480 lm

Power factor

0,9

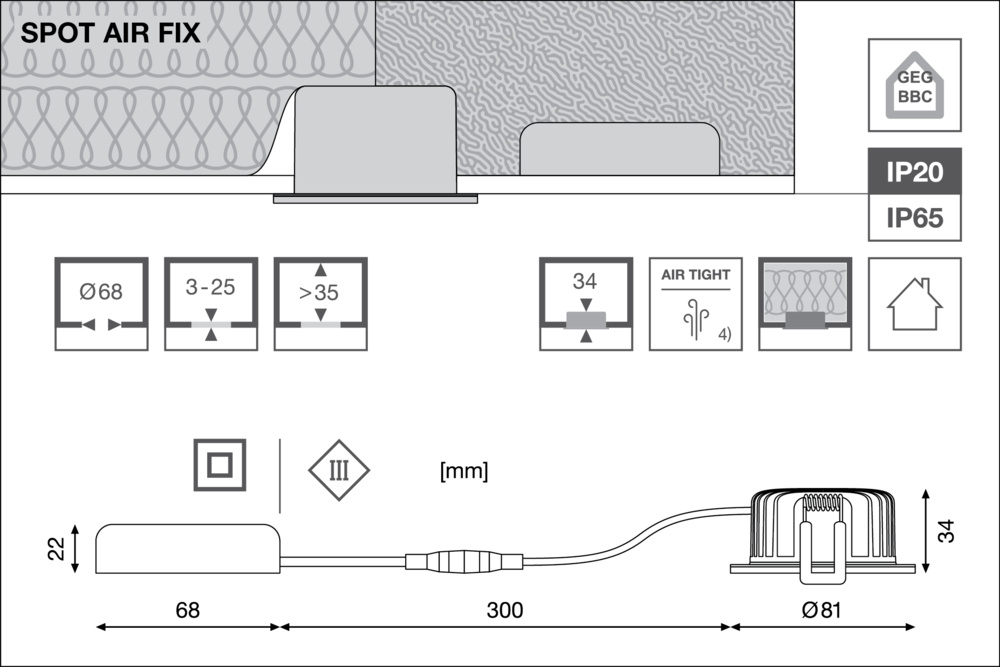

Height/depth

34 mm

Outer diameter

81 mm

Installation height/depth

35 mm

Type of wiring

Suitable for through-wiring

Number of poles

2

Luminaire luminous efficacy

80 lm/W

Photobiological safety according to EN 62471

RG1

Color consistency (McAdam ellipse)

SDCM3

Suitable for surface mounting

Yes

Suitable for recessed mounting

Yes

Suitable for ceiling mounting

Yes

With illuminant

Yes

With control gear

Yes

Dimming depending on the control gear

Yes

Dimming phase cut-off

Yes

Phase control dimming

Yes

RoHS applicable

Yes

Country of origin

China (CN)

Statistische Warennummer

andere elektrische Leuchten und Beleuchtungskörper, anderweitig weder genannt noch inbegriffen, mit LED-Lichtquelle, andere als Scheinwerfer, aus anderen Stoffen als aus Kunststoffen (94054239)

REACH Indicator

No

Datenblatt
4099854000188_tds_de.pdfasset-13082381.jpgasset-13082382.jpgasset-13097356.pdfasset-13075879.jpgasset-13076028.jpgasset-13089666-6.pdfasset-13078006.jpg
Suitable for surface-mounted mounting

Yes

Suitable for pendant suspension

No

With motion detector

No

With light sensor

No

Suitable for number of light sources

0

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

DMX dimming

No

Dimming DSI

No

Dimming potentiometer (device-integrated)

No

Dimming GPRS

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Rated ambient temperature according to IEC62722-2-1

-20 – 40 °C

Integrated emergency power supply

No

Suitable for VDU workstations according to EN 12464-1

No

Covering the luminaire with thermal insulation material possible

No

Cover material

Transparent plastic

Rated current

28 mA

Energy efficiency class of the light source according to EU Directive 2019/2015

not required

Light color

white

Width

81 mm

Length

81 mm

Installation width

68 mm

Installation length

68 mm

Luminaire with limited surface temperature "D mark" according to EN 60598-2-24

No

Operation via Bluetooth

No
