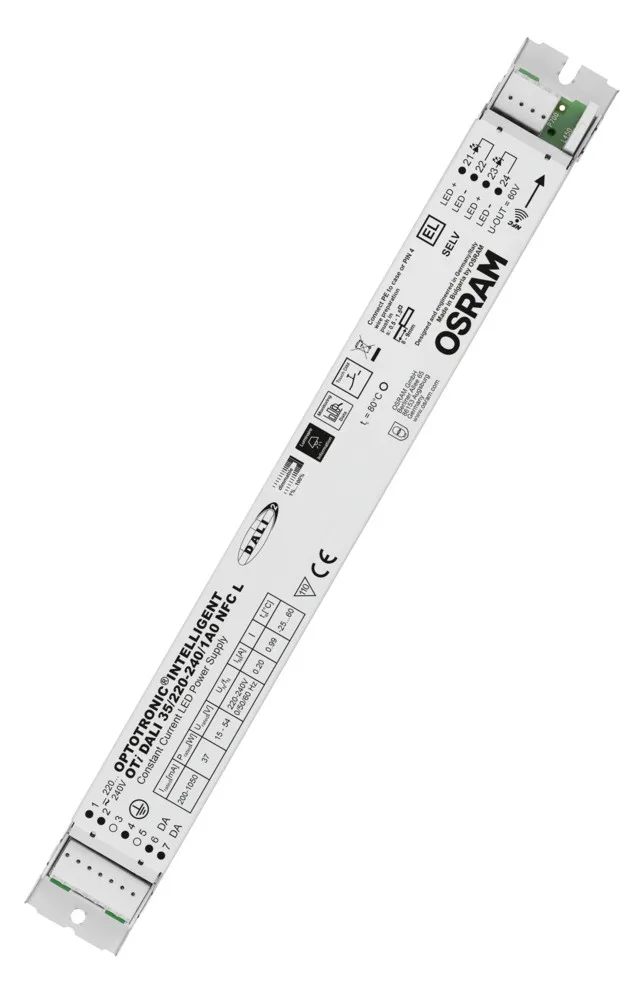

Constant Current - Indoor

EU-Energielabel für dieses Produkt
SKU: 02-4062172074964
Datasheet: Download PDF
For more information, please refer to the data sheet!
Constant current - indoor use. Product features: Mains frequency: 0 Hz | 50 Hz | 60 Hz. Versatile DALI wide-range driver up to 50 W due to flexible output characteristics. Supply voltage: 220... 240 V. Available with output current range: up to 1,400 mA. Constant luminous flux tracking. Built-in customizable thermal management (Driver Guard). . Product advantages: Fully programmable via software (DALI interface, NFC). Advanced luminaire/driver data (power, power, operating hours, etc.) for analysis. DALI-2 - certified, incl. parts 251, 252, 253. Service life: up to 100,000 h (at Tc= 65 °C, max. 10 % failure rate). High-quality dimming of 1... 100% by amplitude dimming. Higher light quality thanks to < 3% output ripple current. Very high efficiency. Very low standby power consumption: < 0.15 W *. Overload, over-temperature, hot plug protection. . Areas of application: Linear lighting solutions for offices, educational institutions, industrial buildings, warehouse areas and retail. Installation in emergency lighting systems in accordance with IEC 61347-2-13, Annex J. Suitable for luminaires of protection class I.
Weight
0,209 kg
Minimum order quantity

20 pieces

Order step

20 pieces

Weight

0,209 kg

Product group

LED control gear (EC002710)

Constant luminous flux control

Yes

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes

Execution

dynamic

Without dimming function

No

Housing

Metal housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Suitable for DC voltage (primary side)

Yes

Protection class (IP)

IP20

Protection class

I

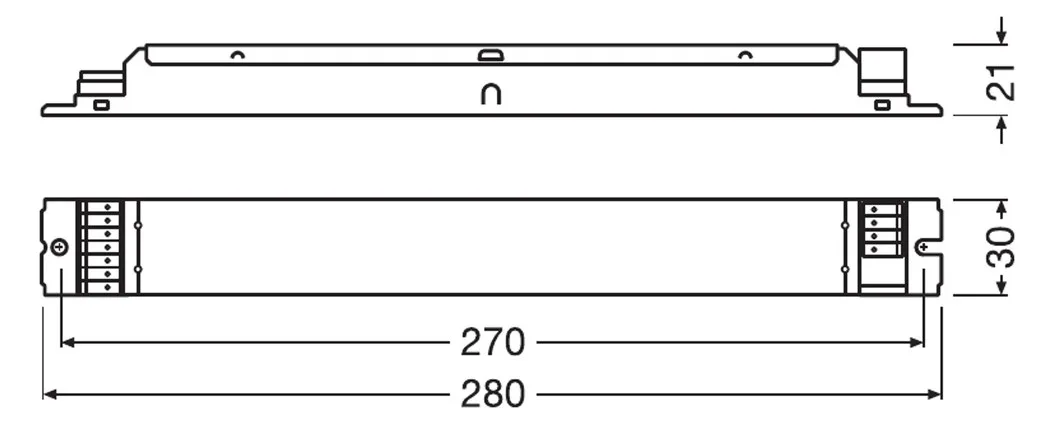

Length

280 mm

Width

30 mm

Height

21 mm

DALI dimming

Yes

Dimming manufacturer-specific

Yes

Programmable dimming

Yes

Dimming Touch and Dim

Yes

Dimming with push-button

Yes

RoHS applicable

Yes

Country of origin

Bulgaria (BG)

Commodity code

Rectifier (85044083)

Datenblatt
4062172074964_tds_de.pdfasset-13079734.pdfasset-13079745.pdfasset-13135449.pdf
Suitable for outdoor use

No

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DSI

No

DMX dimming

No

Dimming potentiometer (device-integrated)

No

Dimming GPRS

No

Dimming LineSwitch

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Zigbee

No

Operation via Bluetooth

No
