Compact Constant Current LED Driver with DALI Dimming Interface

EU-Energielabel für dieses Produkt
SKU: 02-4058075779723
Datasheet: Download PDF
For more information, please refer to the data sheet!
Compact constant current LED driver with DALI dimming interface. Product features: 1 channel DALI-2 certified LED control gear. Supply voltage: 220... 240 V. Operation with extra-low voltage (SELV): < 60 V. Available with output current range: up to 1,400 mA. Mounting type: Independent and installation in luminaires. Suitable for emergency lighting according to EN 60598-2-2 with an emergency light factor EOFI=15%. Suitable for use in furniture. Product advantages: Individual current setting on the device with dip switches in 50mA steps. Push DIM application for easy control. Low flickering enables high light quality as well as good visual comfort. High-quality dimming of 1... 100 %. Tool-free installation. 5-year warranty. Areas of application: Luminaires of protection classes I and II. Indoor SELV installations. Emergency power lighting. Installation and installation in furniture. Cove lighting. Bureaus. School. Storage areas. Retail.
Weight
0,191 kg
Minimum order quantity

10 pieces

Order step

10 pieces

Weight

0,191 kg

Product group

LED control gear (EC002710)

Constant luminous flux control

Yes

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes

Execution

dynamic

Without dimming function

No

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Suitable for DC voltage (primary side)

Yes

Protection class (IP)

IP20

Protection class

II

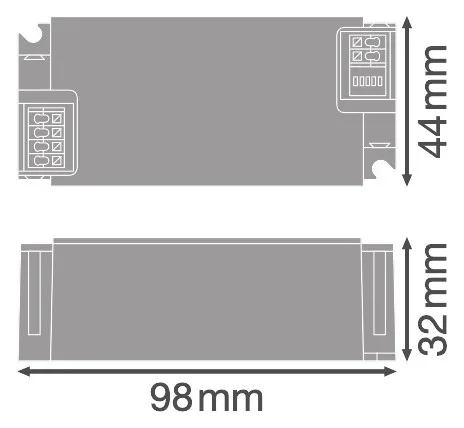

Length

98 mm

Width

44 mm

Height

32 mm

DALI dimming

Yes

Dimming Touch and Dim

Yes

Dimming with push-button

Yes

RoHS applicable

Excluded

Country of origin

China (CN)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Datenblatt
4058075779723_tds_de.pdfasset-13074552.pdfasset-13074591.pdfasset-13067629.pdf
Suitable for outdoor use

No

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DSI

No

DMX dimming

No

Dimming potentiometer (device-integrated)

No

Dimming GPRS

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Zigbee

No

Operation via Bluetooth

No
