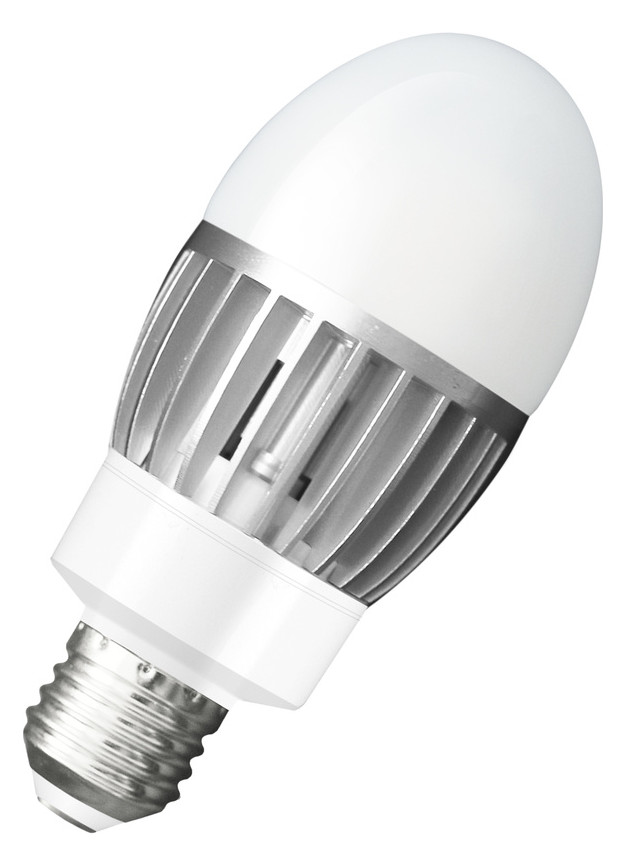

ledvance/asset-10124799.jpg

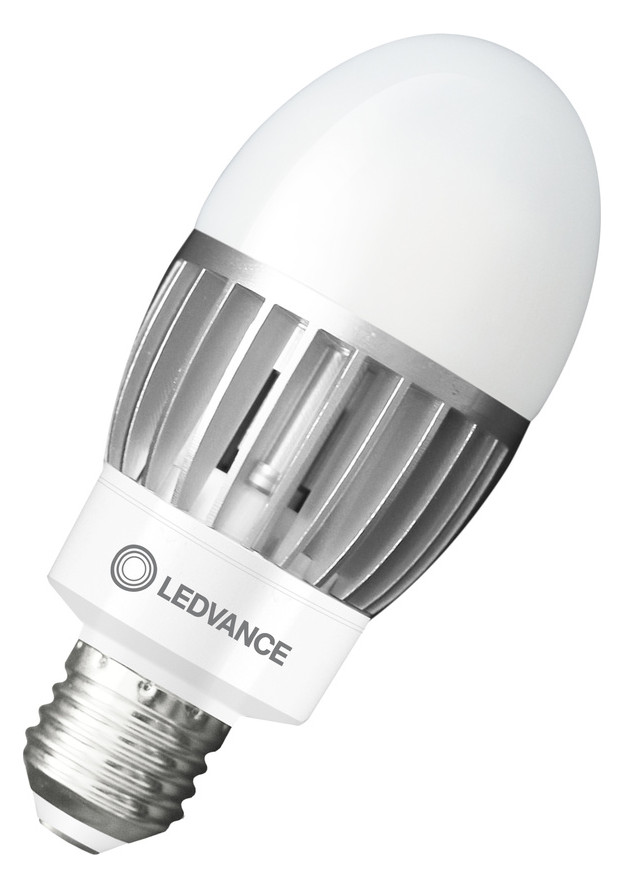

LED Replacement of HID Lamps for Outdoor Lighting

SKU: 02-4058075765870
Datasheet: Download PDF
For more information, please refer to the data sheet!
LED replacement of HID lamps for outdoor lighting. Product features: Replacement of HQL: Suitable for operation with conventional ballasts (KVG, VVG) for HQL or 230 V mains voltage. Replacement of other HID: Suitable for mains power operation without ballast. Power factor: 0.9. Degree of protection: IP65. High surge protection: up to 6 kV (L-N). Product Benefits: Saves up to 78% energy when used as a replacement for mercury vapor lamps (HQL). Low maintenance due to long service life. Instant 100% light, no warm-up time. Areas of application: Roads. Area lighting. Pedestrian zones. Parks. Outdoor applications only in suitable luminaires.
Weight
0,21 kg
Minimum order quantity

6 pieces

Order step

6 pieces

Weight

0,21 kg

Product group

LED lamp/multi-LED (EC001959)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes

Nominal voltage

220 – 240 V

Rated current

67 mA

Lamp wattage

14,5 W

Voltage type

AC

Luminous flux

2.000 lm

Rated luminous flux according to IEC 62612

2.000 lm

Lamp luminous efficacy

137 lm/W

Color rendering index CRI

80-89

Lamp shape

other

Filament lamp

No

Glass/cover version

frosted

Light color according to EN 12464-1

neutral white 3300 to 5300 K

Base

E27

Color

white

Color temperature

4.000 K

Beam angle

360 °

Color consistency (McAdam ellipse)

SDCM6

Diameter

56 mm

Length

138 mm

Protection class (IP)

IP65

Energy efficiency class

D

Min. number of switching operations

100.000

Weighted energy consumption in 1,000 hours

15 kWh

Average rated service life

60.000 h

Remote control possible

No

Photobiological safety according to EN 62471

RG0

RoHS applicable

Excluded

Country of origin

China (CN)

Commodity code

Light-emitting diode lamps (LED lamps) (85395200)

REACH Indicator

Yes

Datenblatt
4058075765870_tds_de.pdfasset-13077171-1.pdfasset-13090432.jpgasset-13029910-2.pdf
Dimmable

No

With remote control

No

Power factor

0,9

Housing color

white

Dimming phase cut-off

No

Phase control dimming

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming Bluetooth

No

Dimming Wi-Fi

No

Without dimming function

Yes

Energy efficiency class according to EU Directive 2019/2015

D

Distortion factor (THD)

20

With motion detector

No

With twilight switch

No
