High-performance IP67 protected LED strips with 2000 lm/m for demanding applications

SKU: 02-4058075706132
Datasheet: Download PDF
For more information, please refer to the data sheet!
Powerful IP67 protected LED strips with 2000 lm/m for demanding applications. Product features: Flexible and divisible LED strip. Smallest divisible unit: 55.56 mm. Service life (L70/B50): up to 50,000 h at Tc max.: 80°C. Luminous flux: 2000 lm/m. Very good colour rendering index Ra: > 90. Initial colour consistency: < 3 SDCM (threshold value unit). Wide range of colour temperatures: from warm white to cool daylight. Dimmable with suitable drivers, see auchwww.ledvance.de/dim). Degree of protection: IP67. UV resistance (according to IEC 60068-2-5). Salt spray resistance (according to IEC 60068-2-52). Product advantages: Great design freedom thanks to long, flexible LED light strips. Easy installation, tool-free connection. Easy to mount on many smooth surfaces thanks to self-adhesive tape. Maximum flexibility thanks to a large selection of accessories. Easy connection thanks to cables integrated on both sides. Suitable for use in humid environments thanks to its high degree of protection. Areas of application: General indoor lighting. General outdoor lighting. Industry. Offices, sales and conference rooms. Architectural lighting. Decorative lighting. Technical equipment: joints, profiles and covers available for various mounting options. End caps must be ordered separately.
Weight
0,38 kg
Minimum order quantity

20 pieces

Order step

20 pieces

Weight

0,38 kg

Product group

Light tube/tape (EC002706)

Suitable for dimmers

No

Constant luminous flux control

Yes

Adjustable luminous flux

No

Adjustable beam angle

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes

Execution

Ribbon

Mounting type

Structure

Light source

LED not replaceable

Number of light sources per meter

144

Lamp wattage per meter

15,6 W

Luminous flux per meter

1.870 lm

Voltage type

DC

Lamp voltage

24 V

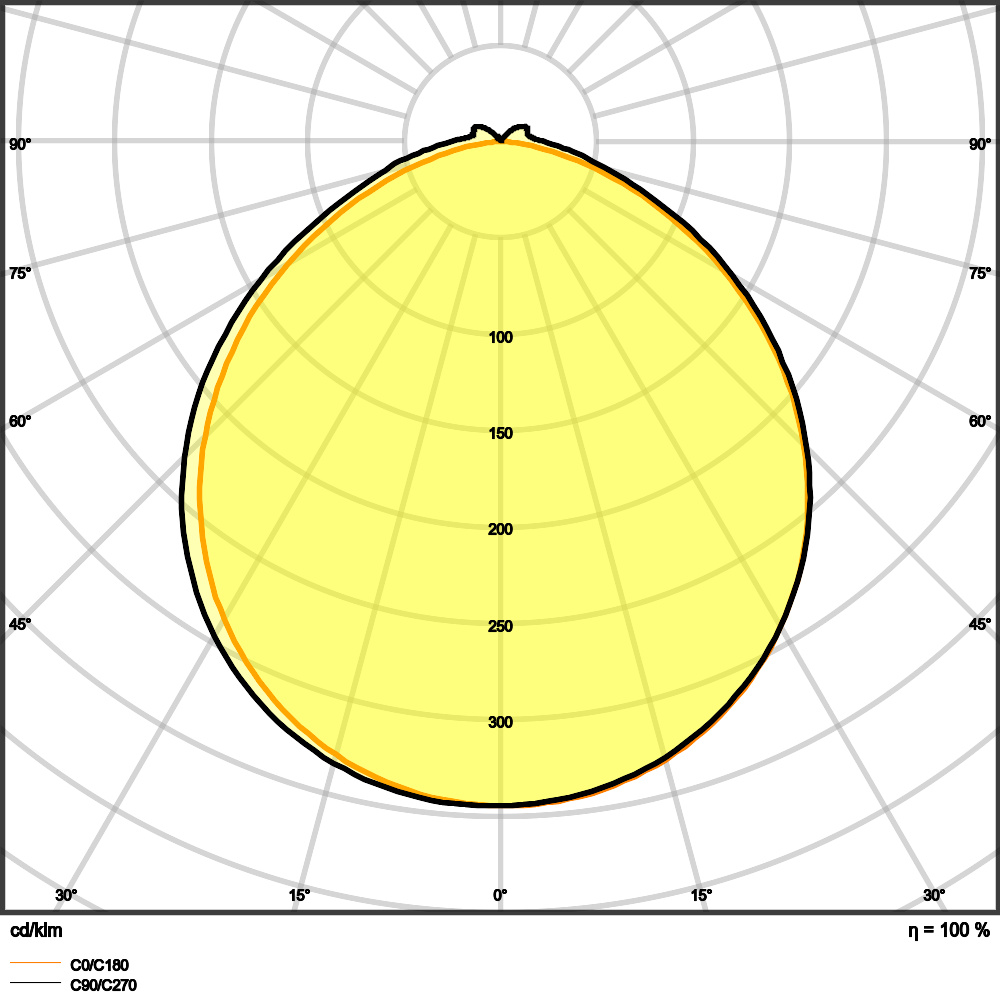

Beam angle

110 °

Rated service life L70/B50 at 25 °C

50.000 h

Protection class (IP)

IP67

Protection class (NEMA)

other

Max. System performance

78 W

Color temperature

6.500 K

Width

10 mm

Height/depth

4,7 mm

Length

5.000 mm

Smallest bending radius

30 mm

Length of the individual sections

55,56 mm

With end piece

No

With connection set

No

With protective cover

Yes

Self-adhesive

Yes

Type of wiring

Conclusion

Number of poles

2

Conductor cross-section

0,5 mm²

Connection type

Plug-in terminal

RoHS applicable

Yes

Country of origin

China (CN)

Commodity code

Light-emitting diode modules (LED modules) (85395100)

REACH Indicator

No

Datenblatt
4058075706132_tds_de.pdfasset-13067032-16.pdfasset-13067457.jpgasset-13074033.pdf
Luminaire luminous efficacy

120 lm/W

Energy efficiency class of the light source according to EU Directive 2019/2015

not required

Color rendering index CRI

90-100
