Square recessed luminaires with Ra90, selectable light colour (CS) and strong glare control, for 600 x 600 mm ceiling systems and DALI-2 IoT technology
31. October 2024
Through-wiring kits for DP GEN 2
31. October 2024
ledvance/asset-5907891.jpg

Square recessed luminaires with Ra90, selectable light colour (CS) and strong glare control, for 600 x 600 mm ceiling systems and DALI-2 IoT technology

SKU: 02-4058075694521
Datasheet: Download PDF
For more information, please refer to the data sheet!

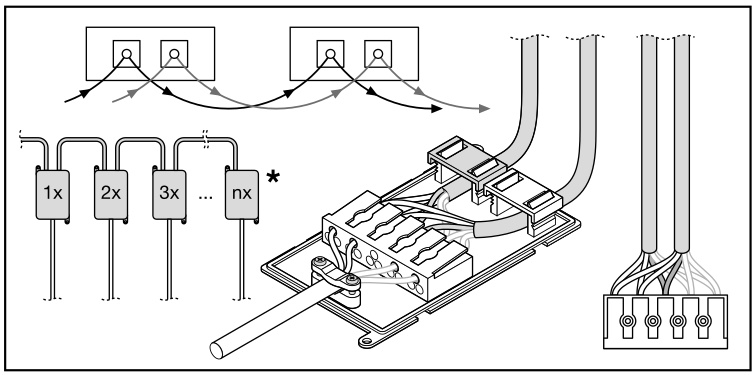

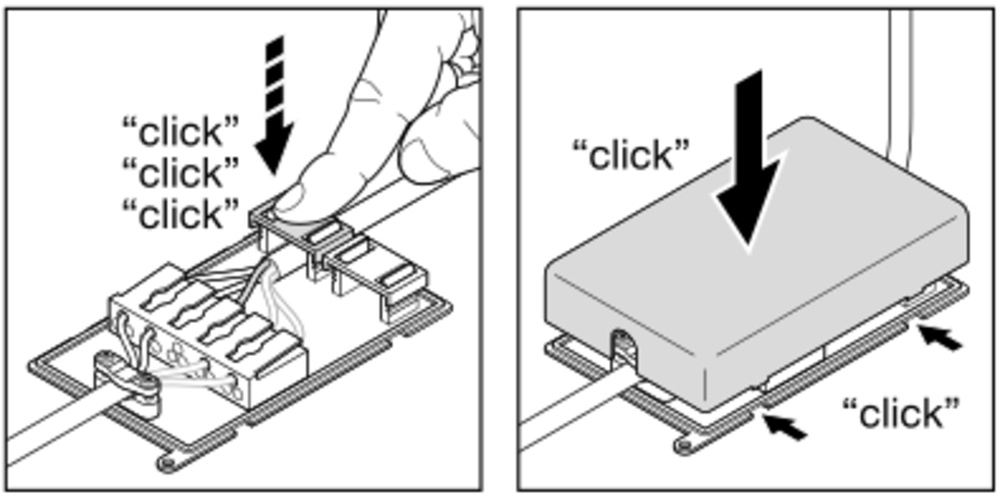

Square recessed luminaires with Ra90, selectable light colour (CS) and strong glare control, for 600 x 600 mm ceiling systems and DALI-2 IoT technology. Product features: IoT-enabled luminaire with DALI-2 technology. Extruded aluminium frame. Polystyrene diffuser. 5-pin connection terminal, cable cross-section up to 5 x 2.5 mm². Service life (L80/B10): up to 60,000 h (at 25 °C). Product advantages: Suitable luminaire for VIVARES and other DALI-2 light management systems. High technical performance with CRI90 and up to 118 lm/W. Very versatile thanks to a selectable light colour (CCT Select - CS). High color consistency with SDCM 3. Good glare control (UGR < 19). Through-wiring possible with included connection box. External driver for extended flexibility and easy installation. Low-flicker light thanks to special electronic ballast. Extended services such as power consumption monitoring and remote maintenance possible with DALI versions. 5-year warranty. Areas of application: Direct replacement for recessed luminaires with fluorescent lamps. Office space, conference rooms. Reception areas, entrance areas, corridors, elevators. Schools, public buildings. Suitable for recessed ceiling systems with a grid dimension of 600 x 600 mm. Technical equipment: Accessories available for various installation options. Separate switch to select the light color pre-installed during installation. Connection box with 5-pin terminal included. Safety rope for lights included. Safety clamps included. External ballast included.
Weight
2,25 kg
Minimum order quantity

4 pieces

Order step

4 pieces

Weight

2,25 kg

Product group

Ceiling/wall light (EC002892)

Replaceable operating device

Yes

Dimming DALI-2

No

Max. Number of lights Circuit breaker C16

33

Constant luminous flux control

No

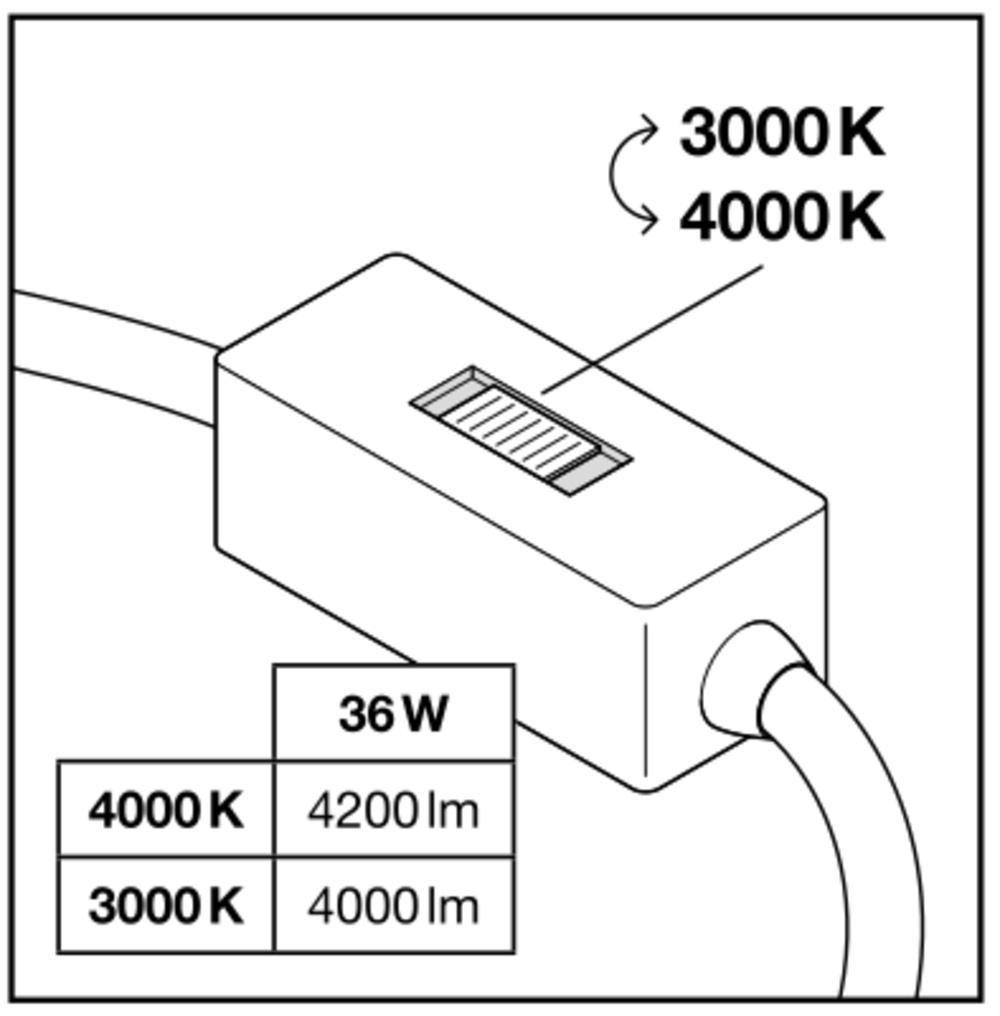

Adjustable color temperature

Steps

Adjustable luminous flux

No

Adjustable beam angle

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes

Housing color

white

Max. System performance

36 W

Color temperature

3.000 – 4.000 K

Protection class (IP)

IP40

Without dimming function

No

Width

620 mm

Height/depth

32 mm

Length

620 mm

Installation length

600 mm

Installation width

600 mm

Surface protection housing

powder-coated

Installation height/depth

80 mm

Design of the grid

high gloss

Voltage type

AC/DC

Nominal voltage

220 – 240 V

Rated current

165 mA

Operating device

EVG

Light distributor

Diffuser lens/optics/panel

Color consistency (McAdam ellipse)

SDCM3

Light emission

direct

Rated service life L70/B50 at 25 °C

100.000 h

Rated service life L80/B10 at 25 °C

60.000 h

Rated service life L90/B10 at 25 °C

35.000 h

Color rendering index CRI

90-100

Impact resistance

IK02

Protection class

II

Rated ambient temperature according to IEC 62722-2-1

-10 – 50 °C

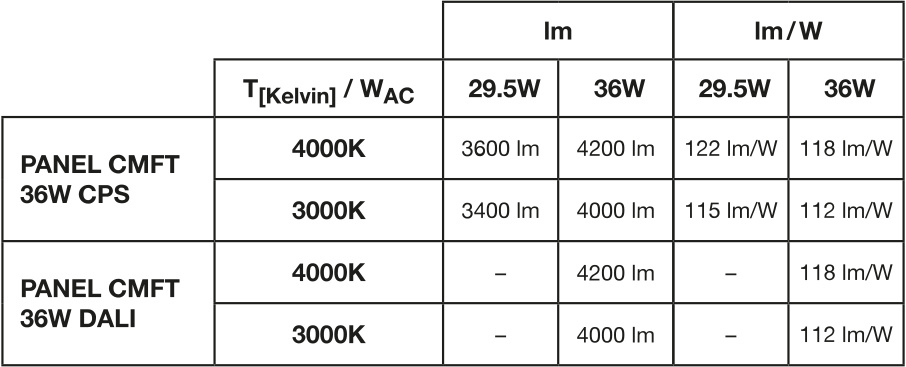

Luminaire luminous efficacy

118 lm/W

Rated luminous flux according to IEC 62722-2-1

4.200 lm

Type of wiring

Suitable for through-wiring

Number of poles

5

Connection type

Plug-in terminal

Photobiological safety according to EN 62471

RG0

Suitable for wall mounting

Yes

Suitable for pendant suspension

Yes

Suitable for ceiling mounting

Yes

Suitable for recessed mounting

Yes

Suitable for surface mounting

Yes

With illuminant

Yes

With control gear

Yes

Suitable for emergency lighting

Yes

DALI dimming

Yes

Dimming depending on the control gear

Yes

RoHS applicable

Yes

Country of origin

China (CN)

Statistische Warennummer

Lüster und andere elektrische Decken- und Wandleuchten, mit LED-Lichtquelle, aus anderen Stoffen als Kunststoff, keramischen Stoffen oder Glas (94051190)

Datenblatt
4058075694521_tds_de.pdfasset-13047630.jpgasset-13047631-52.jpgasset-13047634.jpgasset-13055513.jpgasset-13096958.pdfasset-13056267.jpgasset-13056268.jpgasset-13056270.jpgasset-13056269.jpgasset-13083621.jpgasset-13083622.jpgasset-13083623.jpgasset-13083624.jpgasset-13056289.jpgasset-13056290.jpgasset-13056291.jpgasset-13056292.jpgasset-13083875.jpgasset-13083876.jpgasset-13083877.jpgasset-13083878.jpgasset-13041543.pdf
Suitable for surface-mounted mounting

Yes

Suitable for strip light configuration

No

Suitable for VDU workstations according to EN 12464-1

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DMX dimming

No

Dimming DSI

No

Dimming potentiometer (device-integrated)

No

Dimming GPRS

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Rated ambient temperature according to IEC62722-2-1

-10 – 50 °C

Integrated emergency power supply

No

With motion detector

No

With light sensor

No

With air vents

No

Operation via Bluetooth

No

Material of the housing

Steel

Energy efficiency class of the light source according to EU Directive 2019/2015

not required

Luminaire with limited surface temperature "D mark" according to EN 60598-2-24

No

Light color

white

Power factor

0,9

Glare limitation (UGR)

19

Compatible with Casambi

No

Meets min. EIA service life criterion L90 (at 50,000 h at tq = 25 °C)

No
