Robust wall and ceiling light with IP65 protection and integrated safety lighting function
31. October 2024
SURFACE BULKHEAD 300 EMERGENCY 15W 830 BK IP65
31. October 2024
ledvance/asset-7867735.jpg

SURFACE BULKHEAD 300 EMERGENCY 15W 840 WT IP65

SKU: 02-4058075647640
Datasheet: Download PDF
For more information, please refer to the data sheet!

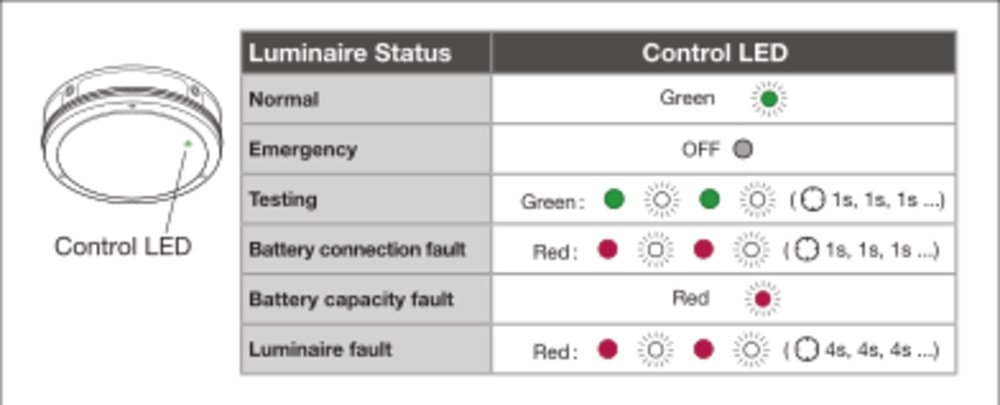

Robust wall and ceiling light with IP65 protection and integrated safety lighting function. Product features: Certified according to European standards (EN 60598-1:2015; EN 60598-2-22:2014). Luminaire suitable for general lighting and emergency lighting. Single battery lights. Emergency lighting function: battery discharge time 3 h. Function test of safety lighting: automatic (AT). Battery technology: LiFePO4. Operating ambient temperature range: 5°...+40° C. UV-stabilized polycarbonate (PC) housing, PC diffuser. Shock resistance: IK10. Plug-in terminal for tool-free connection. through-wiring possible. Degree of protection: IP65. Product benefits: Seamless integration of luminaires with emergency lighting function into general lighting. Easy wiring thanks to the included pre-wired driver and battery for the emergency lighting function. Easy testing of the emergency lighting function through integrated automatic test function. Separate cover rings available for an aesthetic and functional design. 3-year warranty. High luminous efficacy in normal operation. Convenient visualization of the results of the automatic test with included control LED. Operation of the emergency lighting function with long-lasting LiFePO4 battery with 3h operating discharge time. Suitable for use in dusty and humid environments thanks to its high degree of protection. Suitable for use in public areas thanks to its high IK rating. Multiple mounting patterns for convenient installation. Up to 50% energy savings (compared to luminaires that use fluorescent lamps). Areas of application: Safety lighting for escape routes. Anti-panic lighting. Buildings that require emergency lighting of 3 h. Direct replacement for luminaires with fluorescent lamps. Corridors, stairwells, entrance areas. Passages, underpasses. Public space. Technical equipment: Additional cover rings available in various designs. Including mounting screws and dowels.
Weight
1 kg
Minimum order quantity

8 pieces

Order step

8 pieces

Weight

1 kg

Product group

Ceiling/wall light (EC002892)

Replaceable operating device

No

Dimming DALI-2

No

Max. Number of lights Circuit breaker C16

78

Adjustable color temperature

No

Adjustable luminous flux

No

Adjustable beam angle

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Housing color

white

Max. System performance

15 W

Color temperature

4.000 K

Protection class (IP)

IP65

Without dimming function

Yes

Height/depth

70 mm

Length

300 mm

Suitable for number of light sources

0

Outer diameter

300 mm

Version

other

Material of the housing

Plastic

Design of the grid

dull

Voltage type

AC

Nominal voltage

220 – 240 V

Rated current

350 mA

Operating device

EVG

Light distributor

Diffuser lens/optics/panel

Light emission

direct

Rated service life L70/B50 at 25 °C

50.000 h

Rated service life L80/B10 at 25 °C

35.000 h

Rated service life L90/B10 at 25 °C

20.000 h

Impact resistance

IK10

Protection class

II

Rated ambient temperature according to IEC 62722-2-1

5 – 40 °C

Luminaire luminous efficacy

93 lm/W

Rated luminous flux according to IEC 62722-2-1

1.400 lm

Light source

LED not replaceable

Power factor

0,7

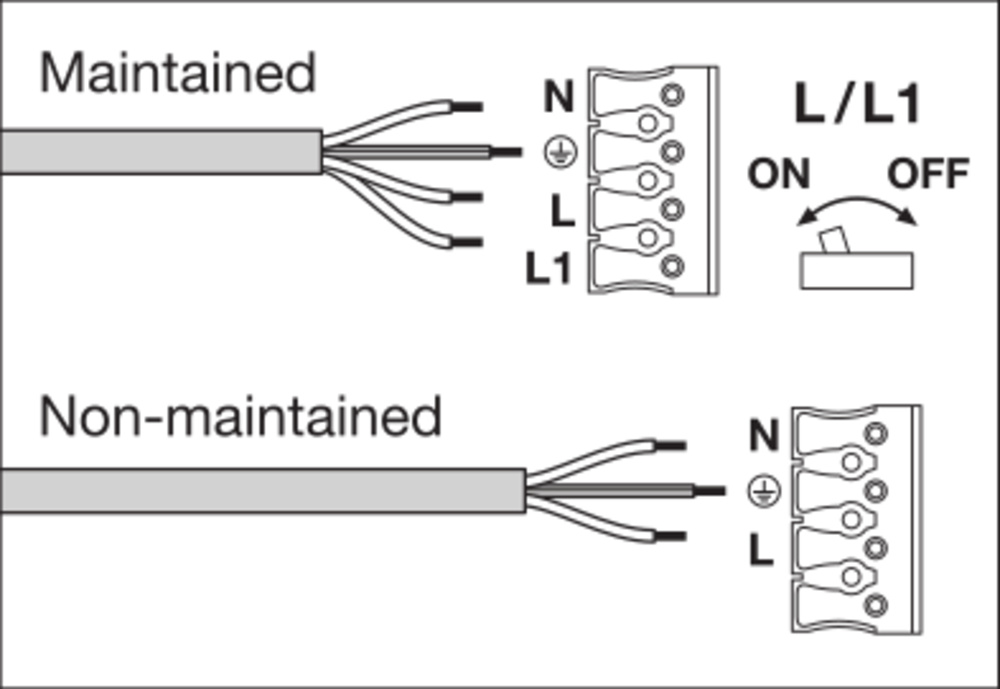

Type of wiring

Suitable for through-wiring

Number of poles

2

Connection type

Plug-in terminal

Photobiological safety according to EN 62471

RG0

Suitable for wall mounting

Yes

Suitable for ceiling mounting

Yes

Suitable for surface mounting

Yes

With illuminant

Yes

With control gear

Yes

Suitable for emergency lighting

Yes

RoHS applicable

Yes

Country of origin

China (CN)

Commodity code

Chandeliers and other electric ceiling and wall lights, with LED light source, made of plastic or ceramic materials (94051140)

REACH Indicator

Yes

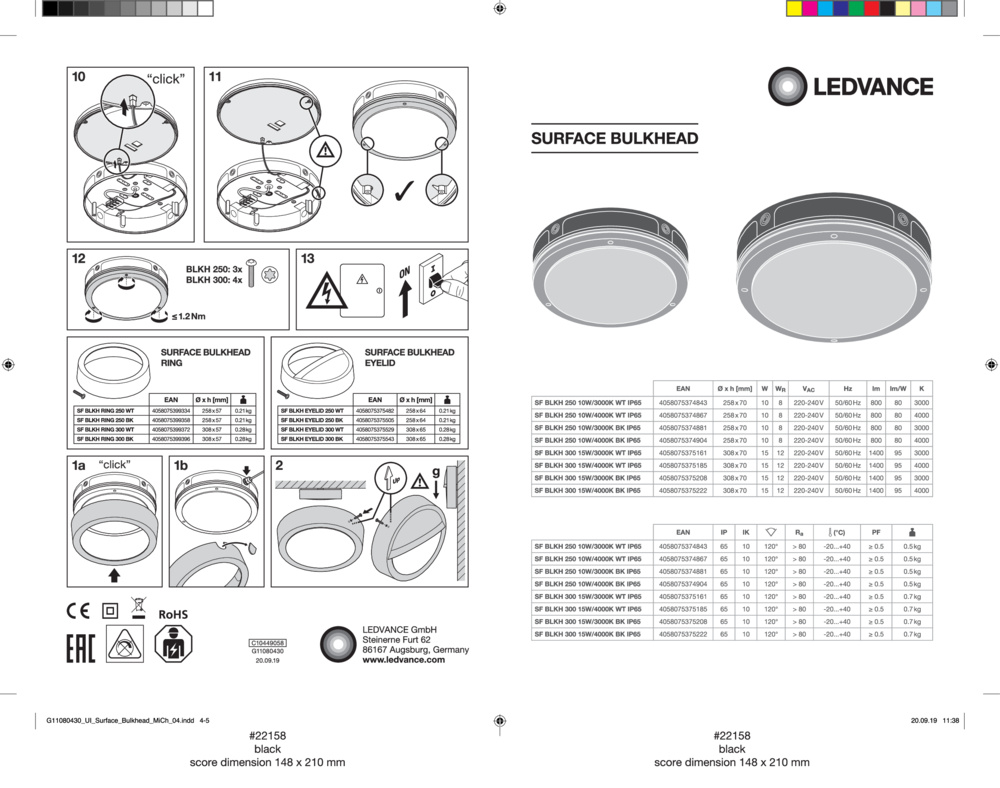

Datenblatt
asset-8932034-6.jpgasset-8879773-5.jpgasset-8932037-6.jpgasset-13101463-3.pdfasset-13024843.jpgasset-13024876.jpgasset-13034962-6.pdf
Suitable for pendant suspension

No

Suitable for recessed mounting

No

Suitable for surface-mounted mounting

Yes

Suitable for strip light configuration

No

Suitable for VDU workstations according to EN 12464-1

No

Suitable for number of light sources

0

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

DMX dimming

No

Dimming DSI

No

Dimming potentiometer (device-integrated)

No

Dimming GPRS

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Dimming depending on the control gear

No

Rated ambient temperature according to IEC62722-2-1

5 – 40 °C

Integrated emergency power supply

No

With motion detector

No

With light sensor

No

Covering the luminaire with thermal insulation material possible

No

With air vents

No

Operation via Bluetooth

No
