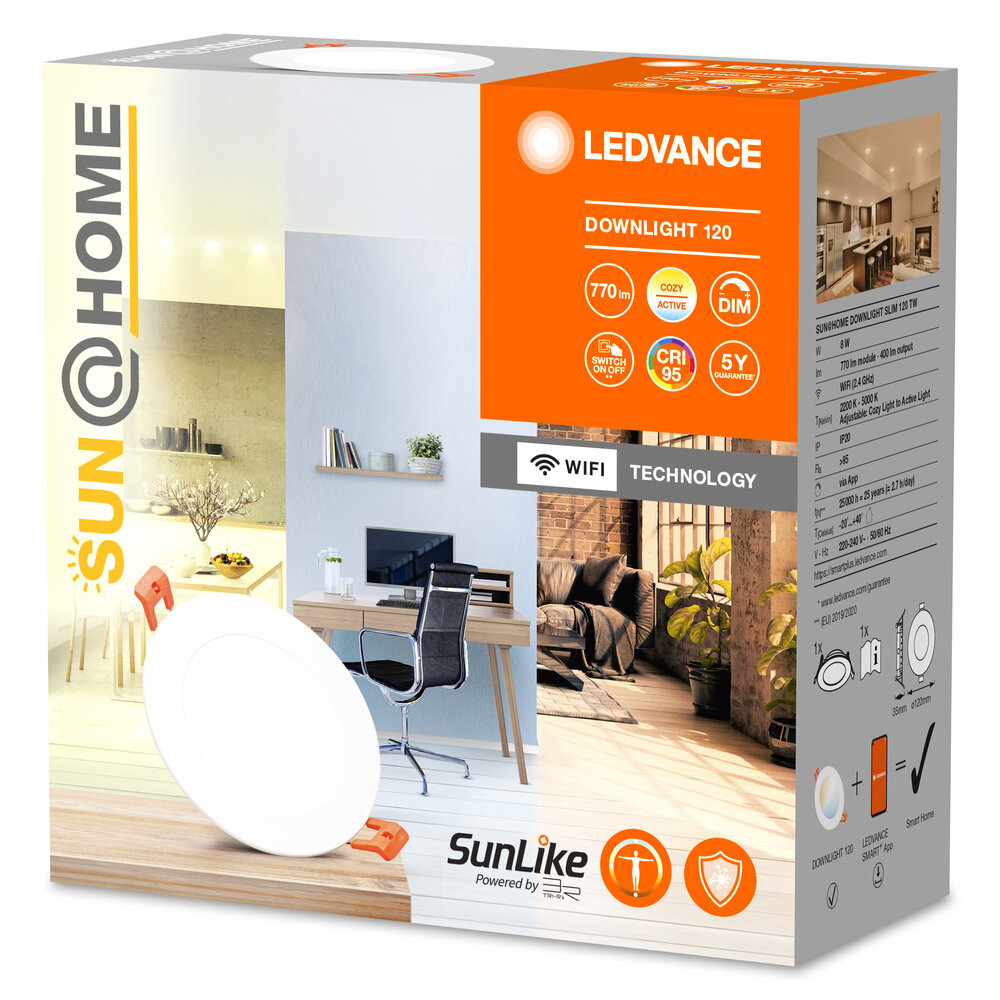

Downlight with Human Centric Lighting Technology

SKU: 02-4058075627024
Datasheet: Download PDF
For more information, please refer to the data sheet!
Downlight with Human Centric Lighting technology. Product features: Colour temperature adjustable via Tunable White: 2,200... 5,000 K. Controllable via LEDVANCE SMART+ WiFi app (with at least Android™️ 4.4 or iOS 10.0). Control via Google Assistant or Amazon Alexa possible. Dimmable. Innovative full-spectrum SunLike LEDs with CRI95. SunLike LEDs with reduced blue light content in the LED spectrum. Innovative luminaire coating against household germs and odours. Automatic circadian rhythm function. Product benefits: Allow for increased concentration and efficiency. Improve overall activity levels and alertness during the day. Improve sleep rhythm and intensity. Improve visual comfort. Improved level of clean air safety by killing household germs and bad odors. Homogeneous light distribution. Easy and quick installation. Areas of application: Interior applications. Kitchen, living room, children's room or study. Technical equipment: Control via app or voice control requires compatible smart home system. A smartphone or tablet is required for control via LEDVANCE SMART + WiFi app. Full mounting and connection accessories included.
Weight
0,107 kg
Minimum order quantity

6 pieces

Order step

6 pieces

Weight

0,107 kg

Product group

Downlight/spotlight/floodlight (EC001744)

Suitable for wall mounting

No

Replaceable operating device

No

Dimming DALI-2

No

Constant luminous flux control

No

Adjustable color temperature

stepless

Adjustable luminous flux

stepless

Adjustable beam angle

No

Installation diameter

105 mm

IFTTT support available

Yes

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Suitable for truss mounting

No

Suitable for platform/floor mounting

No

Suitable for busbar mounting

No

Suitable for clamp mounting

No

Suitable for cable system

No

Housing color

white

Brushed surface

No

Voltage type

AC

Nominal voltage

220 – 240 V

LED rated current with constant current

80 mA

Without dimming function

No

Rated service life L70/B50 at 25 °C

25.000 h

Protection class (IP)

IP20

Protection class

II

Rated ambient temperature according to IEC 62722-2-1

-20 – 40 °C

Max. System performance

8 W

Color temperature

2.200 – 5.000 K

Luminous flux

400 lm

Rated luminous flux according to IEC 62722-2-1

400 lm

Power factor

0,5

Width

120 mm

Height/depth

35 mm

Outer diameter

120 mm

Type of wiring

Conclusion

Number of poles

2

Luminaire luminous efficacy

50 lm/W

Photobiological safety according to EN 62471

RG0

Color consistency (McAdam ellipse)

SDCM6

Suitable for surface mounting

Yes

Suitable for recessed mounting

Yes

Suitable for ceiling mounting

Yes

With illuminant

Yes

RoHS applicable

Yes

Country of origin

China (CN)

Statistische Warennummer

andere elektrische Leuchten und Beleuchtungskörper, anderweitig weder genannt noch inbegriffen, mit LED-Lichtquelle, andere als Scheinwerfer, aus Kunststoffen (94054231)

REACH Indicator

No

Datenblatt
Suitable for surface-mounted mounting

Yes

Suitable for pendant suspension

No

With motion detector

No

With light sensor

No

Dimming depending on the control gear

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

DMX dimming

No

Dimming DSI

No

Dimming potentiometer (device-integrated)

No

Dimming GPRS

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Rated ambient temperature according to IEC62722-2-1

-20 – 40 °C

Integrated emergency power supply

No

Suitable for VDU workstations according to EN 12464-1

No

Covering the luminaire with thermal insulation material possible

No

Material of the housing

Plastic

Rated current

80 mA

Energy efficiency class of the light source according to EU Directive 2019/2015

not required

Color rendering index CRI

90-100

Length

120 mm

Installation width

105 mm

Installation length

105 mm

Luminaire with limited surface temperature "D mark" according to EN 60598-2-24

No

Operation via Bluetooth

No
