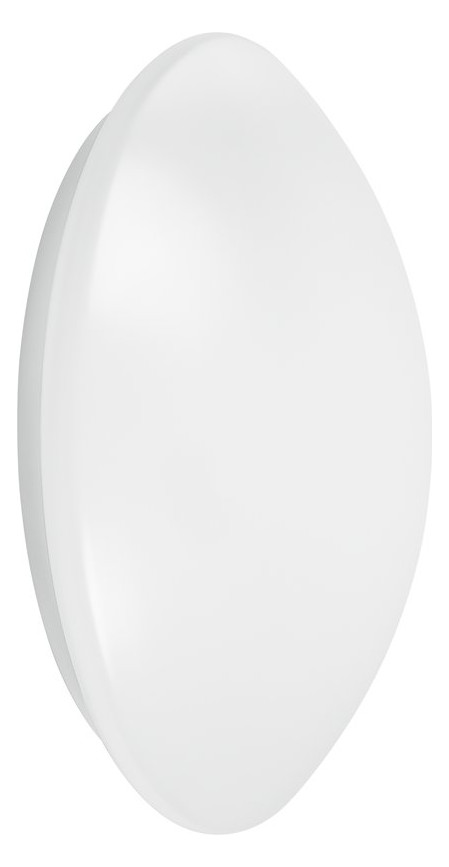

Wall and ceiling light with IP44 and high-frequency sensor

SKU: 02-4058075617926
Datasheet: Download PDF
For more information, please refer to the data sheet!

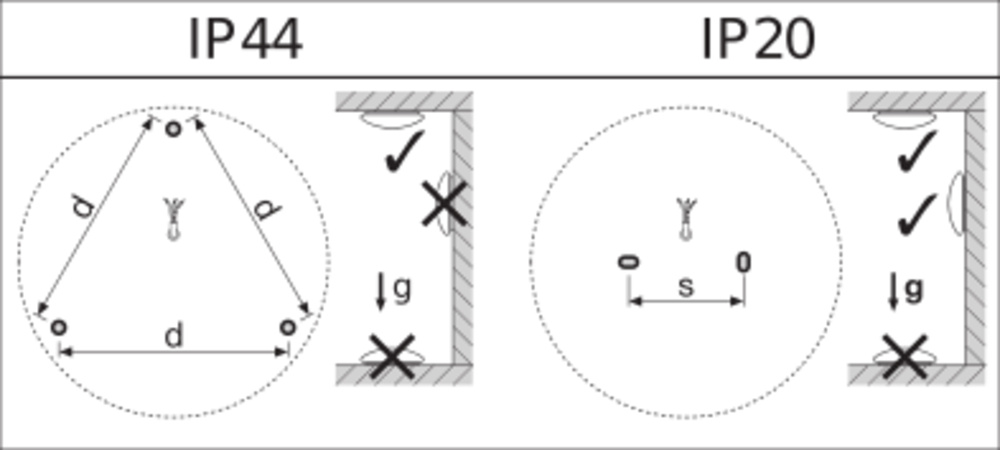

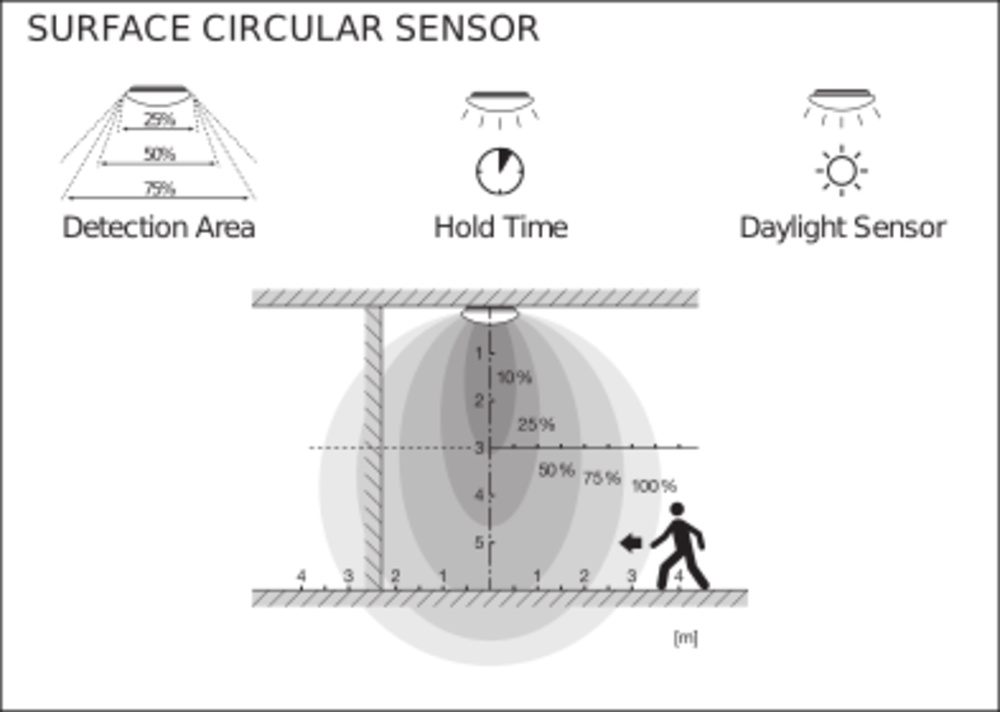

Wall and ceiling light with IP44 and high frequency sensor. Product features: High-frequency sensor for daylight and motion detection. Degree of protection: IP44 (ceiling mounting), IP 20 (wall mounting). Impact resistance: IK03. Metal housing, PMMA cover. Ambient temperature range during operation: -20...+40 °C. Indoor use only, not suitable for outdoor use. Product advantages: Easy adjustment of sensor range, daylight detection and burn time. Interior luminaire with high luminous efficiency. Up to 55% energy savings compared to luminaires using compact fluorescent lamps. Easy and quick installation. Very homogeneous light. 3-year warranty. Areas of application: corridors. Staircases. Bathroom. Gains. Technical equipment: Replacement cover available as an option.
Minimum order quantity

5 pieces

Order step

5 pieces

Product group

Ceiling/wall light (EC002892)

Replaceable operating device

No

Dimming DALI-2

No

Max. Number of lights Circuit breaker C16

94

Constant luminous flux control

No

Adjustable color temperature

No

Adjustable luminous flux

No

Adjustable beam angle

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes

Housing color

white

Max. System performance

13 W

Color temperature

4.000 K

Protection class (IP)

IP44

Without dimming function

Yes

Height/depth

91 mm

Length

250 mm

Suitable for number of light sources

0

Outer diameter

250 mm

Version

other

Surface protection housing

powder-coated

Design of the grid

dull

Voltage type

AC

Nominal voltage

220 – 240 V

Rated current

100 mA

Operating device

EVG

Light distributor

other

Light emission

direct

Rated service life L70/B50 at 25 °C

30.000 h

Rated service life L80/B10 at 25 °C

22.000 h

Rated service life L90/B10 at 25 °C

15.000 h

Impact resistance

IK03

Protection class

I

Rated ambient temperature according to IEC 62722-2-1

-20 – 40 °C

Luminaire luminous efficacy

75 lm/W

Rated luminous flux according to IEC 62722-2-1

960 lm

Light source

LED not replaceable

Type of wiring

Conclusion

Number of poles

2

Connection type

Plug-in terminal

Photobiological safety according to EN 62471

RG0

Suitable for wall mounting

Yes

Suitable for ceiling mounting

Yes

Suitable for surface mounting

Yes

With illuminant

Yes

With control gear

Yes

With motion detector

Yes

With light sensor

Yes

RoHS applicable

Yes

Country of origin

China (CN)

Statistische Warennummer

Lüster und andere elektrische Decken- und Wandleuchten, mit LED-Lichtquelle, aus anderen Stoffen als Kunststoff, keramischen Stoffen oder Glas (94051190)

REACH Indicator

No

Datenblatt
4058075617926_tds_de.pdfasset-8931900-9.jpgasset-8931907-5.jpgasset-13102550-5.pdfasset-13025927.jpgasset-13025948.jpgasset-13037258-9.pdfasset-13043490.jpgasset-13043489.jpg
Suitable for pendant suspension

No

Suitable for recessed mounting

No

Suitable for surface-mounted mounting

Yes

Suitable for strip light configuration

No

Suitable for VDU workstations according to EN 12464-1

No

Suitable for number of light sources

0

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

DMX dimming

No

Dimming DSI

No

Dimming potentiometer (device-integrated)

No

Dimming GPRS

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Dimming depending on the control gear

No

Rated ambient temperature according to IEC62722-2-1

-20 – 40 °C

Suitable for emergency lighting

No

Integrated emergency power supply

No

Covering the luminaire with thermal insulation material possible

No

With air vents

No

Operation via Bluetooth

No

Material of the housing

Steel

Energy efficiency class of the light source according to EU Directive 2019/2015

not required

Luminaire with limited surface temperature "D mark" according to EN 60598-2-24

No

Light color

white

Color rendering index CRI

80-89

Power factor

0,55

Compatible with Casambi

No

Meets min. EIA service life criterion L90 (at 50,000 h at tq = 25 °C)

No
