Power Supplies for Floodlight Max

SKU: 02-4058075580749
Datasheet: Download PDF
For more information, please refer to the data sheet!

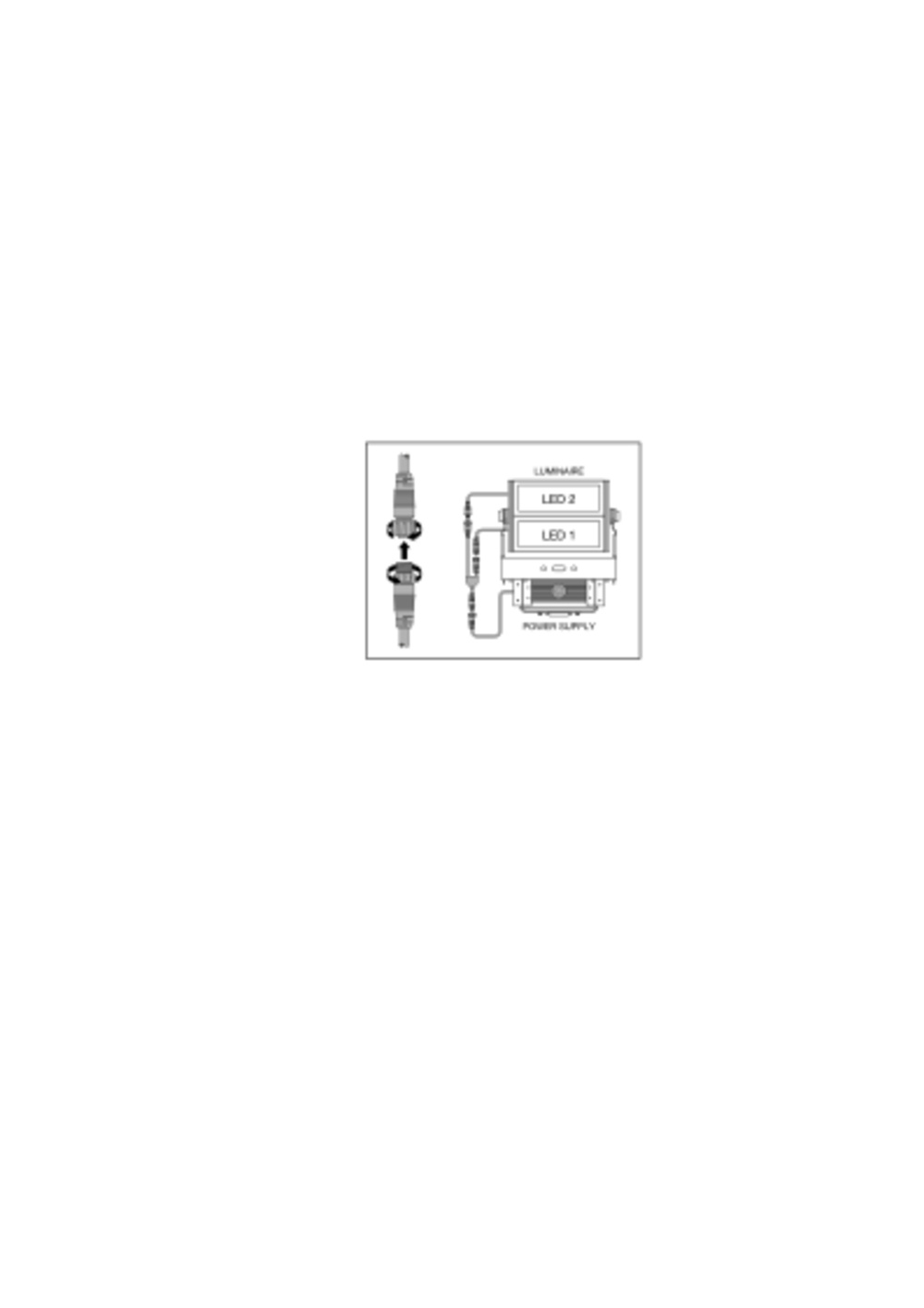

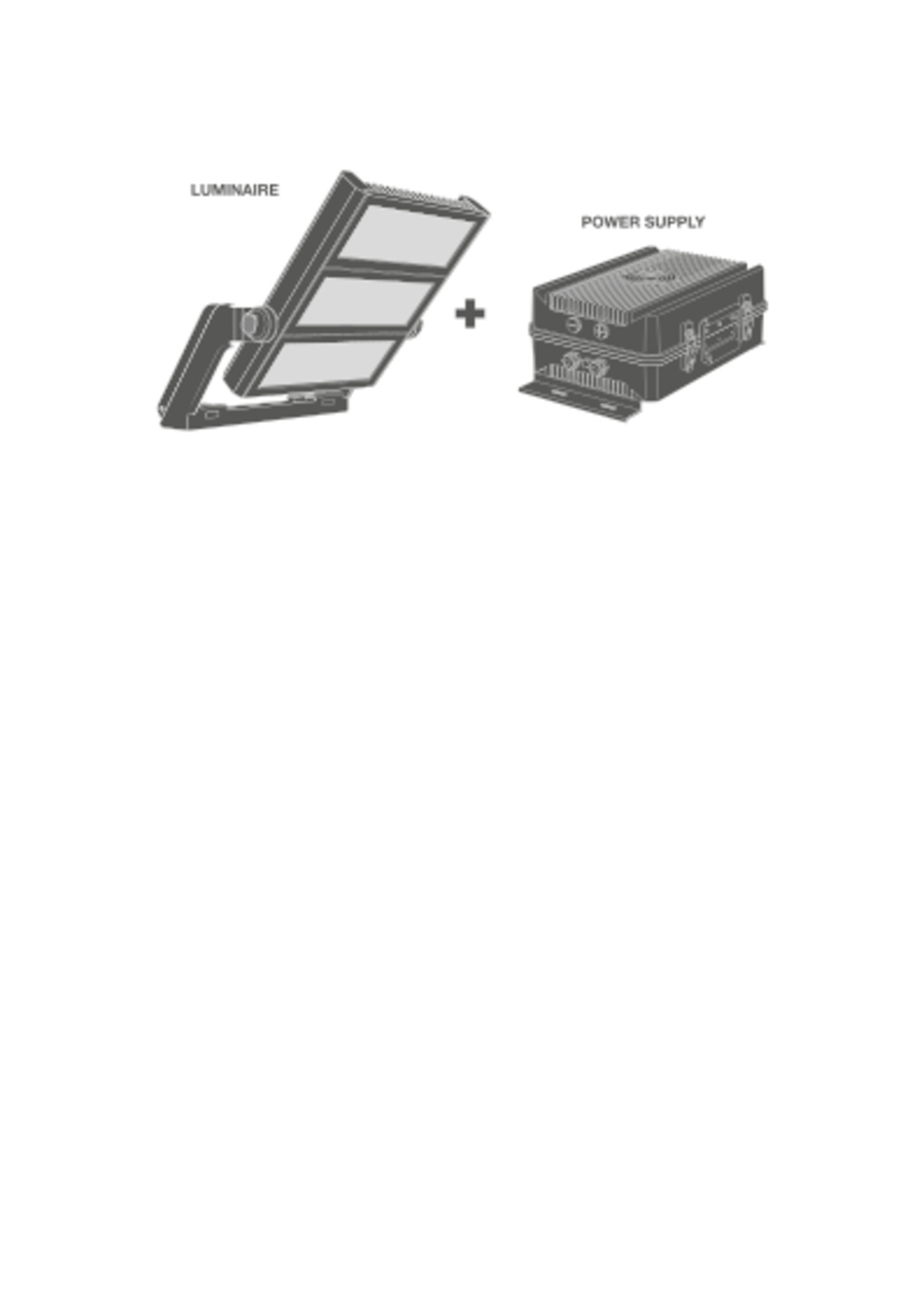

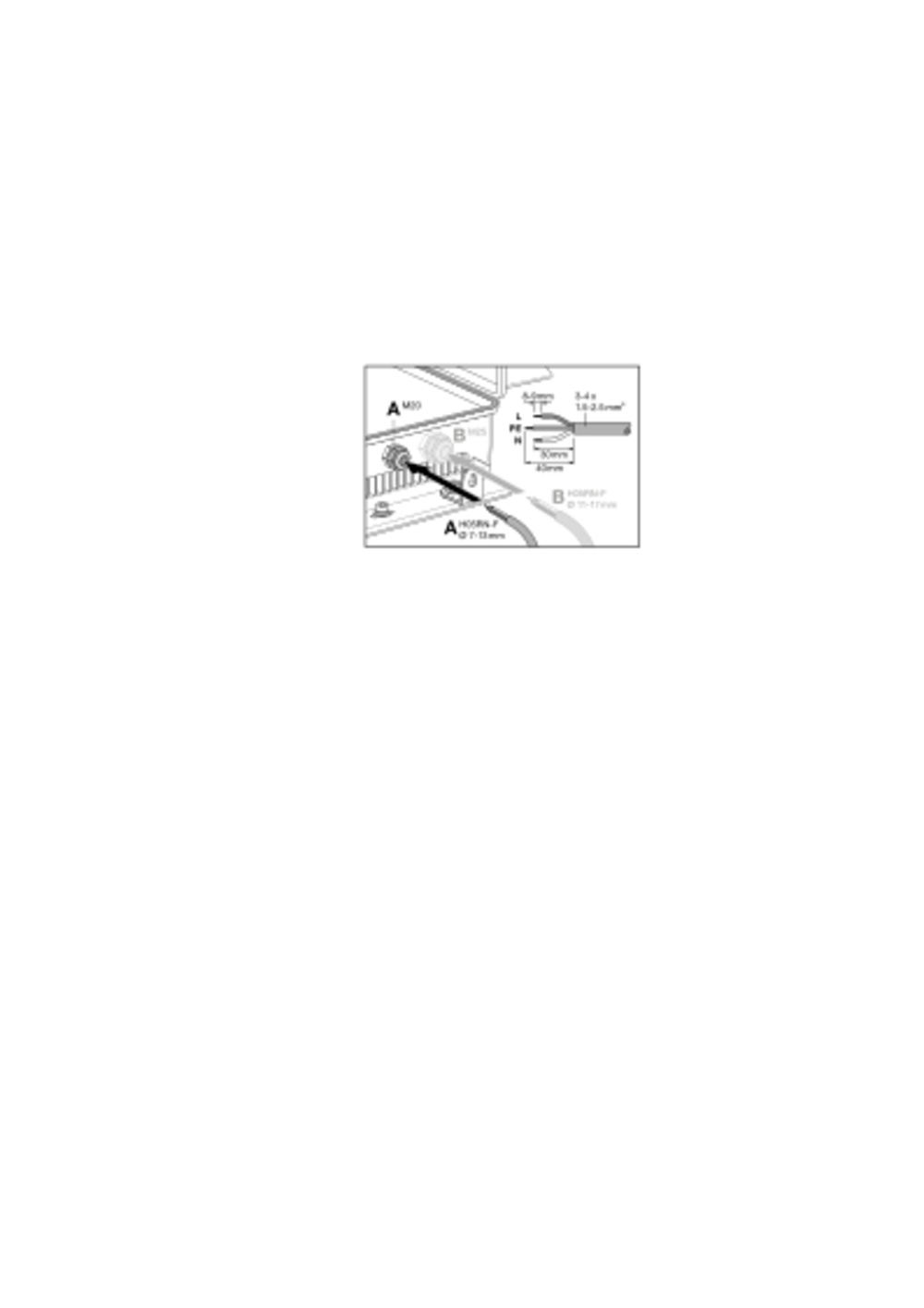

Power supplies for Floodlight Max. Product features: Power supply for Floodlight Max luminaire heads. Joint or separate installation with Floodlight Max luminaire head up to 40 m apart. M20 and M25 PG glands for power cable entry. Connection of the LED modules by means of a pre-installed connector with quick release. High surge protection of up to 10 kV (L/N-PE and L-N). Product advantages: Extremely robust and durable. Quick and easy mains connection, thanks to tool-free housing opening. Optimized product logistics, luminaire heads and power supplies to be ordered separately in standalone packaging. 5-year warranty. Areas of application: Outdoor application (IP66). Illumination of large areas. Sports facilities. Sites. Technical equipment: Extension cable and mast mounting kit for power supply in preparation.
Weight
12,6 kg
Weight

12,6 kg

Product group

Ballast (EC001497)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes

Without dimming function

Yes

For lamp type HI

No

For lamp type HM

No

For lamp type HS

No

For lamp type LS

No

For lamp type T7

No

For lamp type T16

No

For lamp type T16-R

No

For lamp type T26

No

For lamp type T38

No

For lamp type T-R

No

For lamp type T-U

No

For lamp type TC-D

No

For lamp type TC-DD

No

For lamp type TC-DEL

No

For lamp type TC-F

No

For lamp type TC-L

No

For lamp type TC-QEL

No

For lamp type TC-S

No

For lamp type TC-SEL

No

For lamp type TC-T

No

For lamp type TC-TEL

No

Suitable for number of light sources

1

Suitable for lamp wattage

1.200 W

Nominal voltage

200 – 277 V

With strain relief

No

Length

270 mm

Width

447 mm

Height

166 mm

RoHS applicable

Yes

Country of origin

China (CN)

Commodity code

Rectifier (85044083)

REACH Indicator

No

Datenblatt
4058075580749_tds_de.pdfasset-13019341-1.jpgasset-13019342-1.jpgasset-13020243-1.jpgasset-13020245-1.jpgasset-13020248-1.jpgasset-13147099-1.pdfasset-13024952-1.pdfasset-13038046.jpg
Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

Dimming DSI

No

DMX dimming

No

Dimming potentiometer (device-integrated)

No

Dimming GPRS

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Operation via Bluetooth

No
