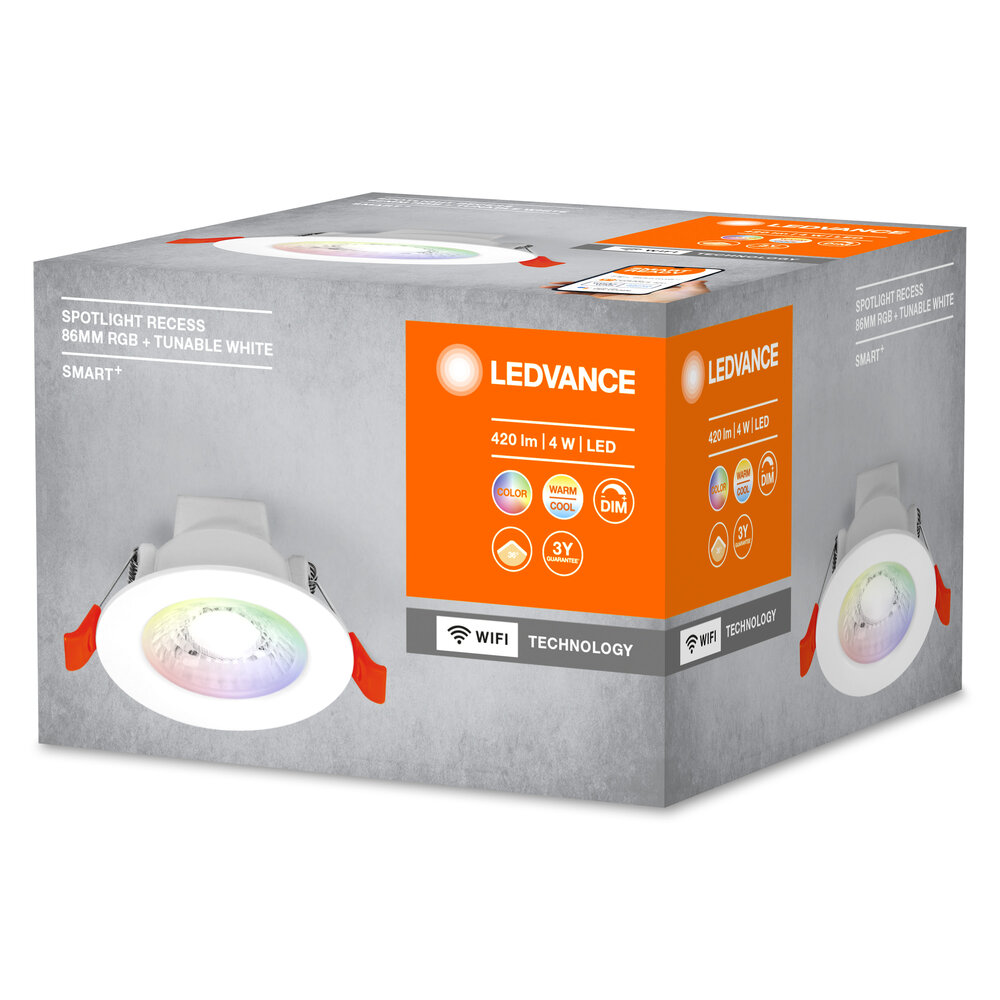

Smart recessed downlight with integrated driver TW, RGB and dimmable

SKU: 02-4058075573291
Datasheet: Download PDF
For more information, please refer to the data sheet!
Smart recessed downlight with integrated driver TW, RGB and dimmable. Product features: Controllable via LEDVANCE SMART+ WiFi app (with at least Android™️ 4.4 or iOS 10.0). Control via Google Assistant or Amazon Alexa possible. Colour temperature adjustable via Tunable White: 3,000... 6,500 K. Dimmable. Network protocol: WiFi. Housing material: plastic. Product advantages: TW and RGB. Beam angle 36°, 100°, 110°. Areas of application: Interior applications. Corridors, entrance areas, stairwells, living rooms, basements. Bedroom. Kitchens. Technical equipment: Full mounting and connection accessories included.
Weight
0,07 kg
Minimum order quantity

6 pieces

Order step

6 pieces

Weight

0,07 kg

Product group

Ceiling/wall light (EC002892)

Replaceable operating device

No

Dimming DALI-2

No

Constant luminous flux control

No

Adjustable color temperature

stepless

Adjustable luminous flux

No

Adjustable beam angle

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

Yes

Compatible with Amazon Alexa

Yes

IFTTT support available

Yes

Housing color

white

Max. System performance

4 W

Color temperature

3.000 – 6.500 K

Protection class (IP)

IP20

Without dimming function

No

Height/depth

48 mm

Outer diameter

86 mm

Installation height/depth

70 mm

Installation diameter

70 mm

Design of the grid

dull

Voltage type

AC

Nominal voltage

220 – 240 V

Rated current

60 mA

Color consistency (McAdam ellipse)

SDCM6

Rated service life L70/B50 at 25 °C

25.000 h

Impact resistance

IK03

Protection class

II

Rated ambient temperature according to IEC 62722-2-1

-20 – 40 °C

Luminaire luminous efficacy

90 lm/W

Rated luminous flux according to IEC 62722-2-1

400 lm

Type of wiring

Conclusion

Number of poles

2

Connection type

Screw terminal

Photobiological safety according to EN 62471

RG0

Suitable for recessed mounting

Yes

Suitable for surface mounting

Yes

With illuminant

Yes

With control gear

Yes

RoHS applicable

Yes

Country of origin

China (CN)

Statistische Warennummer

andere elektrische Leuchten und Beleuchtungskörper, anderweitig weder genannt noch inbegriffen, mit LED-Lichtquelle, andere als Scheinwerfer, aus Kunststoffen (94054231)

REACH Indicator

No

Datenblatt
Suitable for wall mounting

No

Suitable for pendant suspension

No

Suitable for ceiling mounting

No

Suitable for surface-mounted mounting

Yes

Suitable for strip light configuration

No

Suitable for VDU workstations according to EN 12464-1

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

DMX dimming

No

Dimming DSI

No

Dimming potentiometer (device-integrated)

No

Dimming GPRS

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Dimming depending on the control gear

No

Rated ambient temperature according to IEC62722-2-1

-20 – 40 °C

Suitable for emergency lighting

No

Integrated emergency power supply

No

With motion detector

No

With light sensor

No

Covering the luminaire with thermal insulation material possible

No

With air vents

No

Operation via Bluetooth

No

Energy efficiency class of the light source according to EU Directive 2019/2015

not required

Luminaire with limited surface temperature "D mark" according to EN 60598-2-24

No

Color rendering index CRI

80-89

Power factor

0,5

Length

86 mm

Installation length

70 mm

Installation width

70 mm

Compatible with Casambi

No

Meets min. EIA service life criterion L90 (at 50,000 h at tq = 25 °C)

No
