LED Replacement for KLLni with 2pol. G24d socket for operation on KVG/VVG
31. October 2024
LED Replacement for KLLni with 2pol. G24d socket for operation on KVG/VVG
31. October 2024
ledvance/asset-13105396.jpg

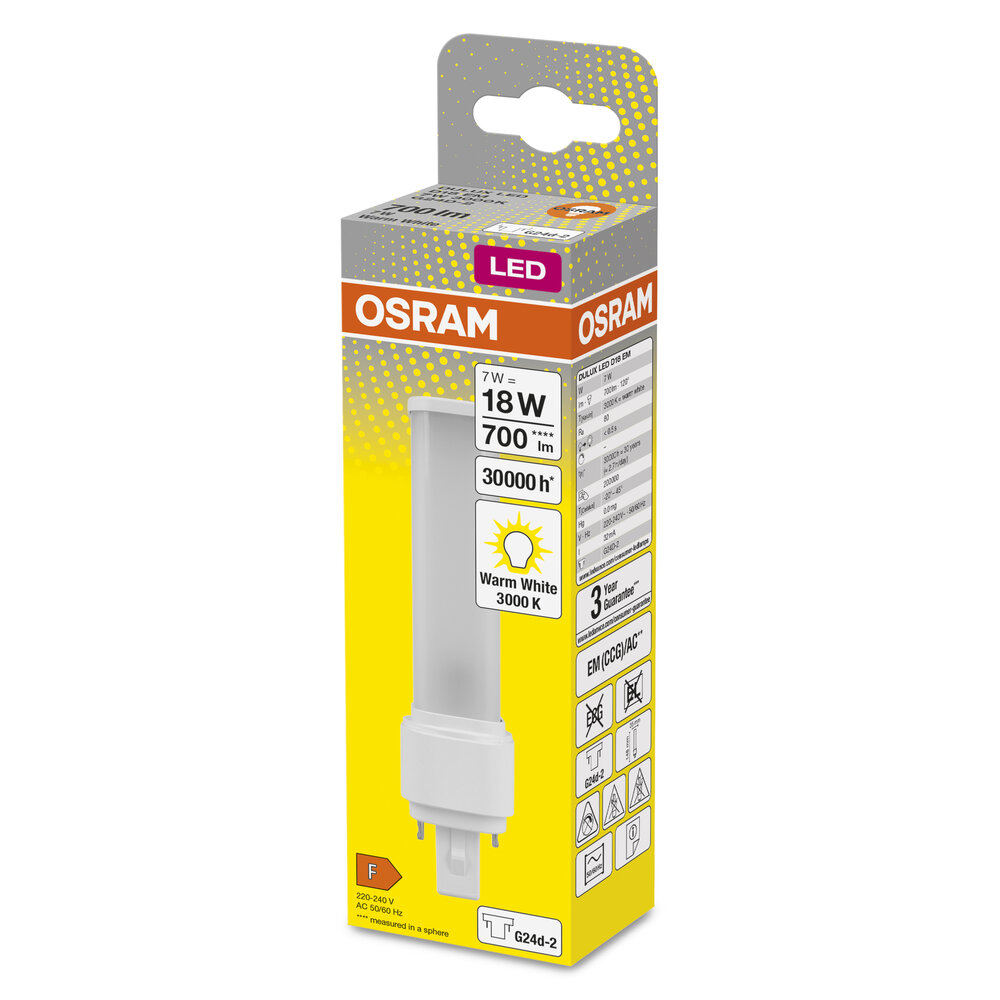

LED Replacement for KLLni with 2pol. G24d socket for operation on KVG/VVG

SKU: 02-4058075558328
Datasheet: Download PDF
For more information, please refer to the data sheet!
LED Replacement for KLLni with 2pol. G24d socket for operation on KVG or mains voltage. Product features: LED replacement for conventional compact fluorescent lamps in KVG luminaires or on mains voltage. Degree of protection: IP20. Rotatable base around its longitudinal axis (± 90 °). Service life: up to 30,000 h. Single-sided 2-pin socket G24d. Product advantages: Simple, fast and safe lamp replacement without rewiring. Low energy consumption. Easy lamp replacement thanks to compact design. Operation directly at 230 V mains voltage possible. Areas of application: supermarkets and department stores. Corridors and corridors. Hotels, Restaurants. Outdoor applications only in suitable luminaires.
Weight
0,054 kg
Minimum order quantity

10 pieces

Order step

10 pieces

Weight

0,054 kg

Product group

LED lamp/multi-LED (EC001959)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes

Nominal voltage

220 – 240 V

Rated current

32 mA

Lamp wattage

7 W

Voltage type

AC

Luminous flux

700 lm

Rated luminous flux according to IEC 62612

700 lm

Lamp luminous efficacy

100 lm/W

Color rendering index CRI

80-89

Lamp shape

Tube, single-ended

Filament lamp

No

Glass/cover version

frosted

Light color according to EN 12464-1

warm white <3300 K

Base

G24d-2

Color

white

Color temperature

3.000 K

Housing color

white

Beam angle

120 °

Color consistency (McAdam ellipse)

SDCM6

Diameter

35 mm

Length

148 mm

Protection class (IP)

IP20

Energy efficiency class

F

Min. number of switching operations

200.000

Distortion factor (THD)

30

Weighted energy consumption in 1,000 hours

7 kWh

Average rated service life

30.000 h

Remote control possible

No

Photobiological safety according to EN 62471

RG0

RoHS applicable

Yes

Country of origin

China (CN)

Commodity code

Light-emitting diode lamps (LED lamps) (85395200)

REACH Indicator

Yes

Datenblatt
4058075558328_tds_de.pdfasset-13139030-24.pdfasset-13151574.jpgasset-13016649.jpgasset-13103408-4.pdfasset-13132005.jpg
Dimmable

No

With remote control

No

Power factor

0,9

Suitable for ECG

No

Suitable for magnetic ballast

Yes

Dimming phase cut-off

No

Phase control dimming

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming Bluetooth

No

Dimming Wi-Fi

No

Without dimming function

Yes

Energy efficiency class according to EU Directive 2019/2015

F

With motion detector

No

With twilight switch

No
